WKE 4 - 8 x 1,5²

WKE 4 - 8 x 1,5²

#86850801 | Dimensions: 150 x 150 x 85 mm

Junction box

WKE 4 - 8 x 1,5²

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), UL-EU (EN 62208), Insulation integrity PH120 tested in accordance with EN 50200,...

Login to see price

Remember product

Description

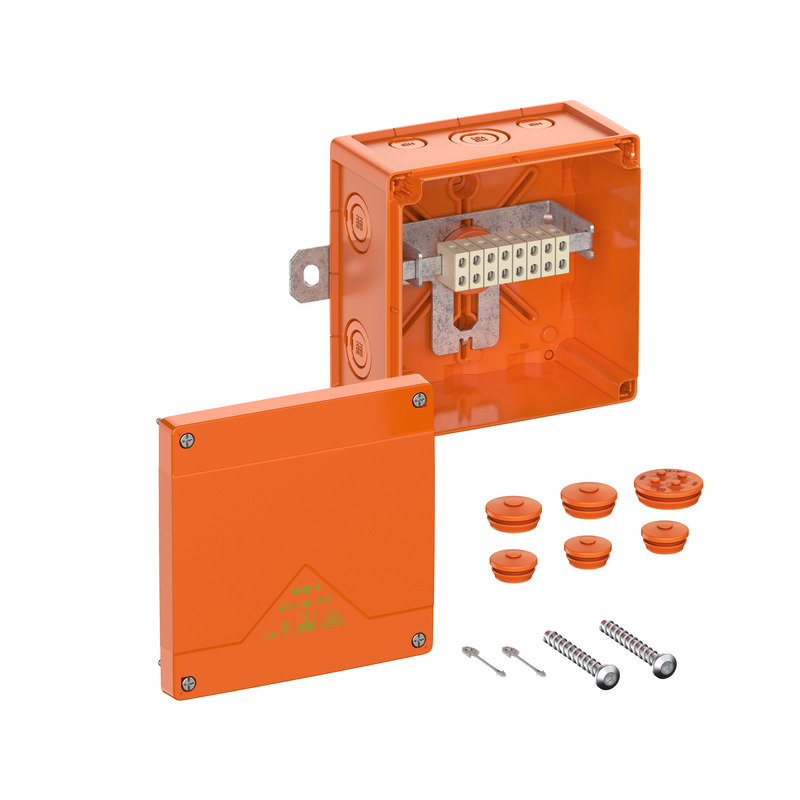

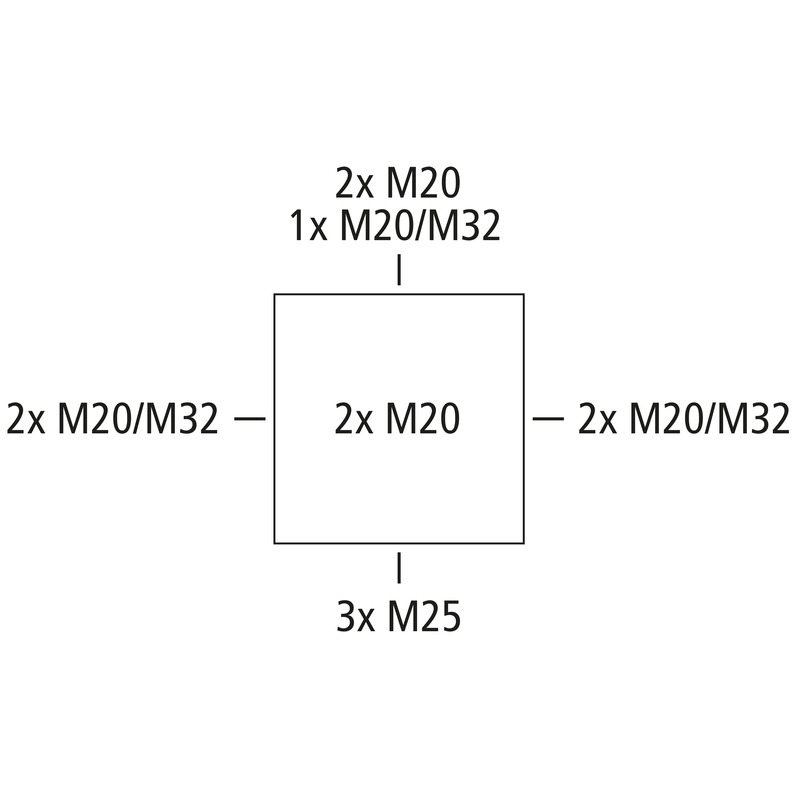

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), UL-EU (EN 62208), Insulation integrity PH120 tested in accordance with EN 50200, knockouts, M20/M25/M32, (2 rear, 12 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder

orange, Connection box, 8-pole, 0.5 - 2.5 mm², junction box 8-pole 0.5 - 1.5 mm², number of clampable conductors per pole: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5²

Accessories supplied:
Cover retainer, screw anchor, 3 double membrane seals IP66 M20 sealing range 7 - 13 mm, 2 double membrane seals IP66 M25 sealing range 9 - 17 mm, 1 double membrane seal IP66 M32/4 sealing range 4 x 3.5-6 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
max. wire cross section (wire branching)	1,5 mm²
Min. conductor cross section	0,5 mm²
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP66
secured junction	no
Circuit integrity class	E30/E60/E90
Number of poles (T-piece)	8
Number of poles (feed-through)	8
UL Type Rating	other
Number of fuses in T-piece	0

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Communication wires

Dimensions

Width	150 mm
Length	150 mm
Height	85 mm
Inner length	137 mm
Inner width	137 mm
Inner height	67 mm
Weight	0.727 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902631353
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	UL-EU (EN 62208)

Logistic data

Piece

EAN / GTIN	4013902631353
Width	0.15 m
Weight	0.727 kg
Height	0.085 m
Quantity	1 pieces
Depth	0.15 m

Outer packaging

EAN / GTIN	4013902631360
Width	0.267 m
Weight	4.642 kg
Height	0.397 m
Quantity	6 pieces
Depth	0.215 m

Pallet

EAN / GTIN	4013902631377
Width	0.8 m
Weight	217 kg
Height	1.74 m
Quantity	252 pieces
Depth	1.2 m

Downloads

Download Data Sheet

Download Data Sheet (86850801.pdf)

Dimensioned drawing

Dimensional drawing jpg (1 MB)

Dimensional drawing pdf (1 MB)

Dimensional drawing dxf (12 MB)

Dimensional drawing dwg (2 MB)

Certificate

Certificate DE pdf (456 KB)

MPA Test certificate UKr pdf (613 KB)

VDE Certificate (DIN EN 60670-22) DE/EN pdf (691 KB)

CE Declaration DE/EN/PL pdf (88 KB)

AbP Test certificate DE pdf (4 MB)

Certificate DE pdf (854 KB)

CE Declaration DE/EN/FR pdf (33 KB)

Certificate EN pdf (824 KB)

UKCA Declaration EN pdf (49 KB)

MPA Test certificate EN pdf (6 MB)
