AKi 14-3K

Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined
Cable insertions:
Top:...

Customize

Login to see price

Description

Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined

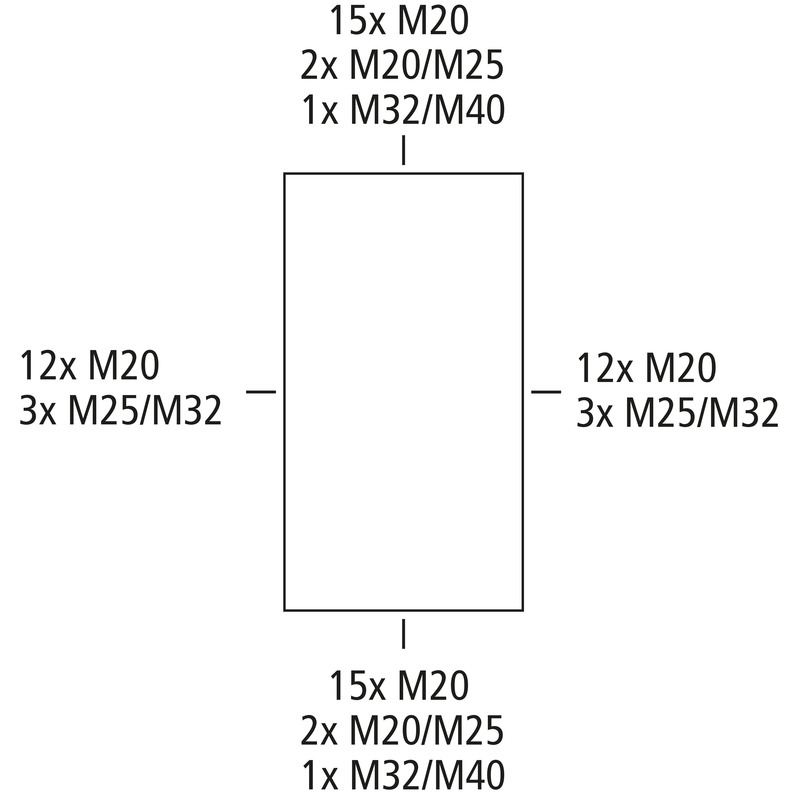

Cable insertions:
Top: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Left: Pre-embossing 12 x M20, 3 x M25/32
Right: Pre-embossing 12 x M20, 3 x M25/32

equipped with:

2 x Miniature circuit breaker B16A, 1-pin
2 x Miniature circuit breaker C 16 A, 3p
1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
4 x SCHUKO^® plug socket (on front), 230V
2 x CEE plug socket outlet (on front) 16A, 400V

Accessories supplied:
Double-membrane seals: 1x M20, 1x M25, 1x M32, Attachment bushes: 1x M40, sealing plugs, masking and labelling strips

Technical Data

Built-in devices

Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A	1
Miniature circuit breaker B16A, 1-pin	2
Miniature circuit breaker C 16 A, 3p	2
SCHUKO^® plug socket (on front), 230V	4
CEE plug socket outlet (on front) 16A, 400V	2

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
Number of N-potentials	1
Number of rows	0
Number of modules per row	14
with N terminal	yes
with PE terminal	yes

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	300 mm
Length	450 mm
Height	142 mm
Weight	5 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability	850 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902885237
ETIM Class	EC000379
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Logistic data

Outer packaging

EAN / GTIN	4013902885237
Width	0.318 m
Weight	5.56 kg
Height	0.48 m
Quantity	1 pieces
Depth	0.23 m

Pallet

EAN / GTIN	4013902305469
Width	0.8 m
Weight	212.6 kg
Height	1.72 m
Quantity	35 pieces
Depth	1.2 m
