#73560901 | Dimensions: 200 x 200 x 122 mm

Small distributions boards

AKe 09-L

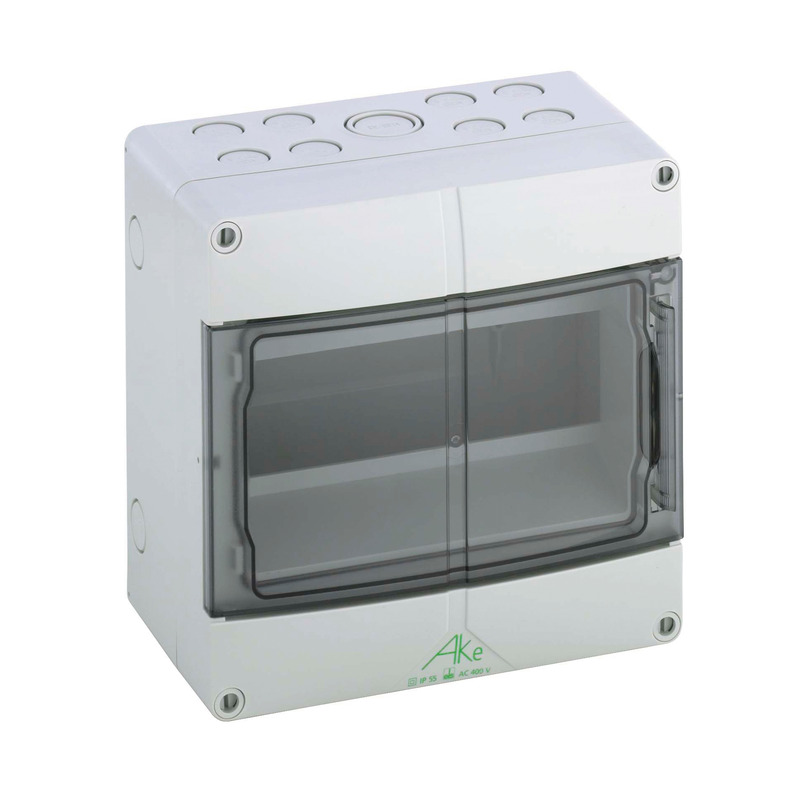

Small distributions boards, protection class IP55, 1 row, 9 available modules, rated operational voltage: 400V AC, rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom...

Login to see price

Remember product

Description

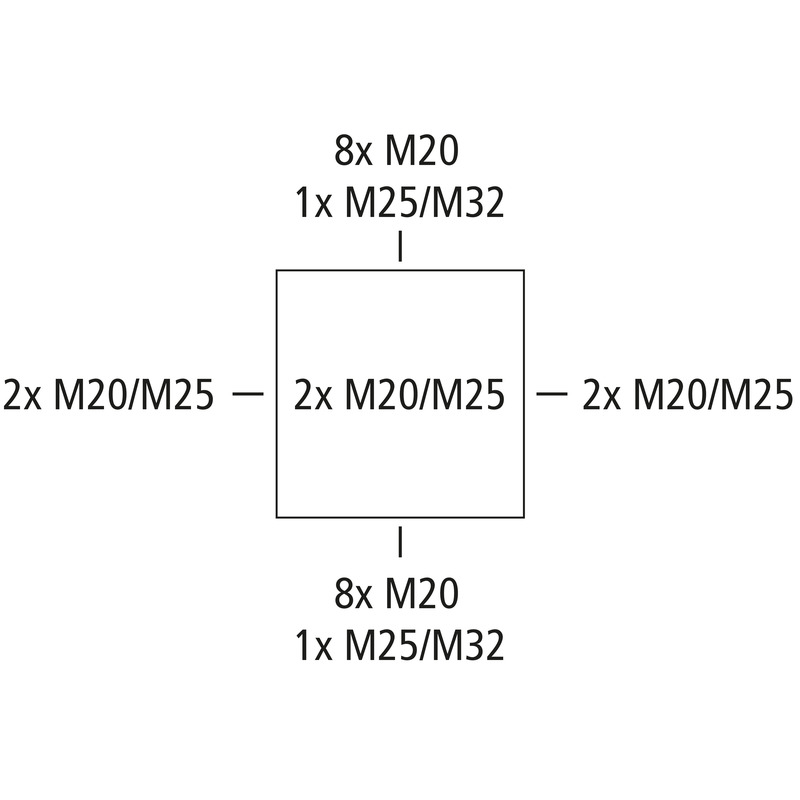

Small distributions boards, protection class IP55, 1 row, 9 available modules, rated operational voltage: 400V AC, rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom for universal cable insertions with cable glands, double membrane seals and/or stepped nipples, for standard installations indoors

without PE/N terminal

Accessories supplied:
Stepped nipples: 7x M20, 1x M25, sealing plugs, cover and labelling strips

Highlights

Easy to install - PE/N terminal strip, flexible entries on the top and the generous spacing of the strip allow for especially convenient, rapid installation of the distributors.

Technical Data

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Protection class	II
Type of protection	IP55
Number of N-potentials	1
Number of rows	1
Number of modules	9
Number of modules per row	9

Colours

Base unit colour	grey

Dimensions

Width	200 mm
Length	200 mm
Height	122 mm
Inner height	95 mm
Weight	0.74 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Surface mounting
Impact strength	IK07
Sealable	yes
Stackable	yes

Ambient conditions

Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902911721
ETIM Class	EC000214
Custom tariff number	85389099
Minimum order quantity	1

Material

Base unit material	Polystyrene
Cover material	Polystyrene
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Logistic data

Outer packaging

EAN / GTIN	4013902310654
Width	0.397 m
Weight	4.81 kg
Height	0.422 m
Quantity	6 pieces
Depth	0.22 m

Pallet

EAN / GTIN	4013902310661
Width	0.8 m
Weight	210.4 kg
Height	1.81 m
Quantity	240 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902911721
Width	0.2 m
Weight	0.74 kg
Height	0.122 m
Quantity	1 pieces
Depth	0.2 m
