#73560301 | Dimensions: 100 x 150 x 96 mm

Small distributions boards

AKe 03-L

Small distributions boards, protection class IP55, 1 row, 3 available modules, rated operational voltage: 400V AC, rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom...

Login to see price

Remember product

Description

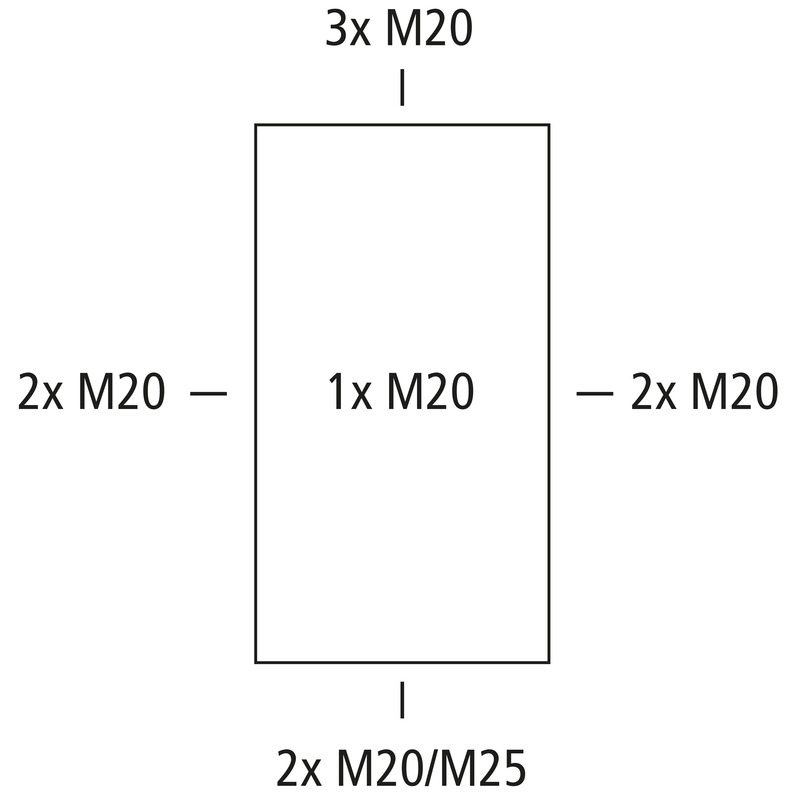

Small distributions boards, protection class IP55, 1 row, 3 available modules, rated operational voltage: 400V AC, rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom for universal cable insertions with cable glands, double membrane seals and/or stepped nipples, for standard installations indoors

without PE/N terminal

Accessories supplied:
Stepped nipples: 3x M20, 1x M25, sealing plugs, cover and labelling strips

Highlights

Greater flexibility - Thanks to the 5 variants with 14 to 70 distribution units, it offers the right distributor solution for every application.

Technical Data

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Protection class	II
Type of protection	IP55
Number of N-potentials	1
Number of rows	1
Number of modules	3
Number of modules per row	3

Colours

Base unit colour	grey

Dimensions

Width	100 mm
Length	150 mm
Height	96 mm
Inner height	71 mm
Weight	0.3263 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Surface mounting
Impact strength	IK07
Sealable	yes
Stackable	no

Ambient conditions

Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902911707
ETIM Class	EC000214
Custom tariff number	85389099
Minimum order quantity	1

Material

Base unit material	Polystyrene
Cover material	Polystyrene
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Logistic data

Outer packaging

EAN / GTIN	4013902310616
Width	0.507 m
Weight	5.5558 kg
Height	0.277 m
Quantity	16 pieces
Depth	0.22 m

Pallet

EAN / GTIN	4013902310623
Width	0.8 m
Weight	251.3436 kg
Height	1.78 m
Quantity	672 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902911707
Width	0.1 m
Weight	0.3263 kg
Height	0.096 m
Quantity	1 pieces
Depth	0.15 m
