AKe 36

Productnumber: 73553601 | Dimensions: 300 x 600 x 142 mm

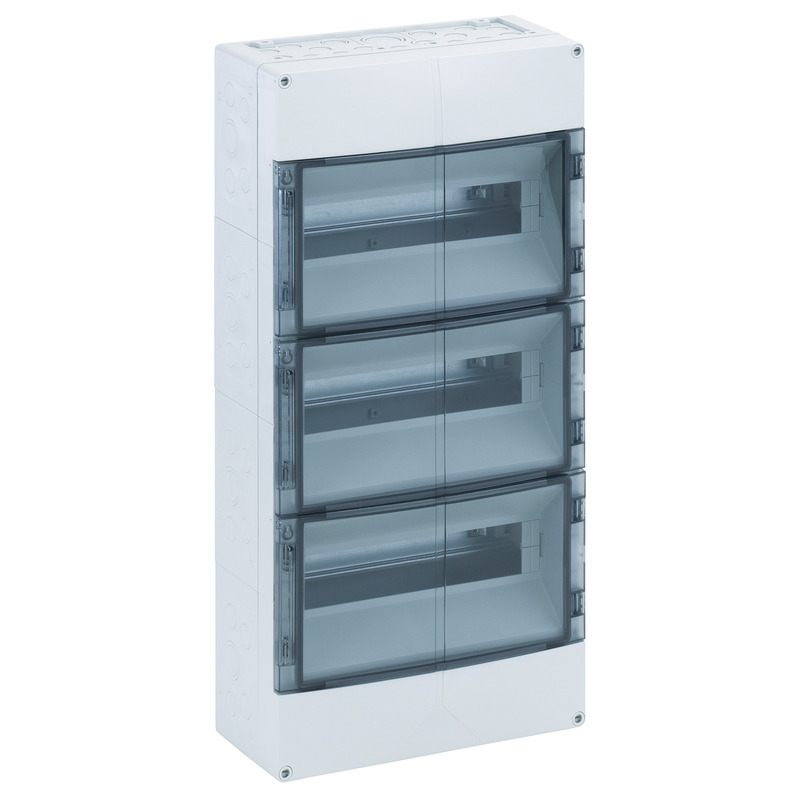

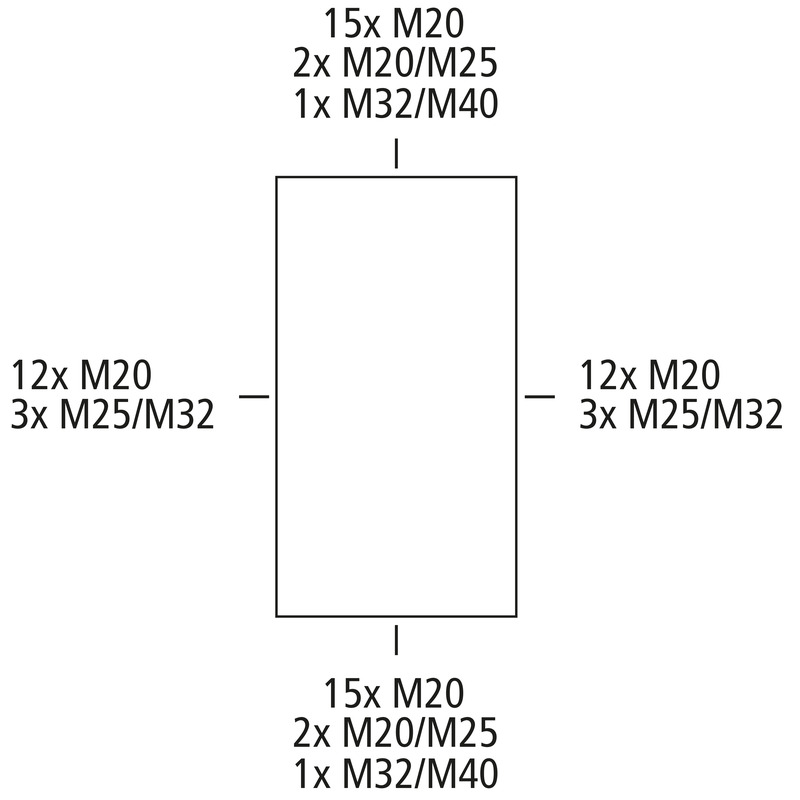

Small distributions boards, protection class IP55, 3 rows, 36 available modules, rated operational voltage: 400V AC, rated insulation voltage: 690V AC, 690V DC, metric knockouts on top and bottom for universal cable insertions with cable glands, double membrane seals and/or stepped nipples, for standard installations indoors

with PE/N terminal rail, each with 1 terminal point 25 mm², 4 clamping points 16mm² and 12 clamping points 6 mm²

Accessories supplied:
Stepped nipples: 25x M20, 2x M25, 1x M32, 1x M40, sealing plugs, cover and labelling strips

Highlights

Reliable - The high protection class (IP65) and the robust, halogen-free design ensure reliable operation even in a tough industrial environment.

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Protection class	II
Type of protection	IP55
Number of N-potentials	1
Number of rows	3
Number of modules	36
Number of modules per row	12

Colours

Base unit colour	grey

Dimensions

Width	300 mm
Length	600 mm
Height	142 mm
Inner height	95 mm

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C
Industry quality	no

mechanical properties

Type of fastening	Surface mounting
Impact strength	IK07
Sealable	yes
Stackable	yes

Ambient conditions

Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Material

Base unit material	Polystyrene
Cover material	Polystyrene
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (992 KB)
Dimensional drawing	dxf (13 MB)
Dimensional drawing	dwg (2 MB)
Dimensional drawing	jpg (1 MB)

Certificate

CE Declaration DE/EN/FR	pdf (81 KB)
UKCA Declaration EN	pdf (48 KB)

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

without PE/N terminal

Small distributions boards, protection class IP55, 3 rows, 36 available modules, rated operational...
