Terminal rail, as additional terminals or for replacement for installation in AK 24 and AK36 (since 10/2025)
Base carrier with PE terminal rail with 6 screw terminals 2.5-16 mm² and 21 push-in terminals 0.75-4mm², suitable for mounting of 4 N-modules, for mounting in AK 14/28/42/56 small distribution boards
| Rated operating voltage AC | 690 V |
|---|---|
| Number of poles | 1 |
| shockproof | Yes |
| Connection 1: Connection type | Screws |
| Connection 1: Strip length | 13 mm |
| Connection 1: Clamping points per pole | 6 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 2.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 16 mm² |
| Connection 2: Connection type | Screwless |
| Connection 2: Stripping length | 12 mm |
| Connection 2: Clamping points per pole | 21 |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Suitable for Al conductors | 0 |
| Connection 2: Connectable conductor cross-section, fine-wire without ferrule (min) | 0.75 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire without ferrule (max) | 4 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 0.75 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 4 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 0.75 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 4 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 0.75 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 4 mm² |
| Width | 51 mm |
|---|---|
| Length | 273 mm |
| Height | 51 mm |
| Weight | 0.146 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Connection 1: Tightening moment | 2 Nm |
|---|
| EAN | 4013902705108 |
|---|---|
| ETIM Class | EC001284 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
| Insulating body material | Thermoplastic |
|---|
| EAN / GTIN | 4013902705122 |
|---|---|
| Width | 0.444 m |
| Weight | 3.28 kg |
| Height | 0.19 m |
| Quantity | 20 pieces |
| Depth | 0.329 m |
| EAN / GTIN | 4013902705139 |
|---|---|
| Width | 0.8 m |
| Weight | 218.8 kg |
| Height | 1.93 m |
| Quantity | 1200 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902705108 |
|---|---|
| Width | 0.051 m |
| Weight | 0.146 kg |
| Height | 0.051 m |
| Quantity | 1 pieces |
| Depth | 0.273 m |
N-Module-Set
AK3 1/6/1 N
Productnumber 73385201
4 N-modules each with 2 screw terminals 2.5-16 mm² and 6 push-in...
N-modules with actuation lever for tool-free release of conductors, each with 2 screw terminals...
Terminal rails
AK 3/14 PE
Productnumber 73485001
Base carrier with PE terminal rail with 3 screw terminals 2.5-16 mm²...
Terminal rail, as additional terminals or for replacement for installation in AK 24 and AK36 (since...
Terminal rails

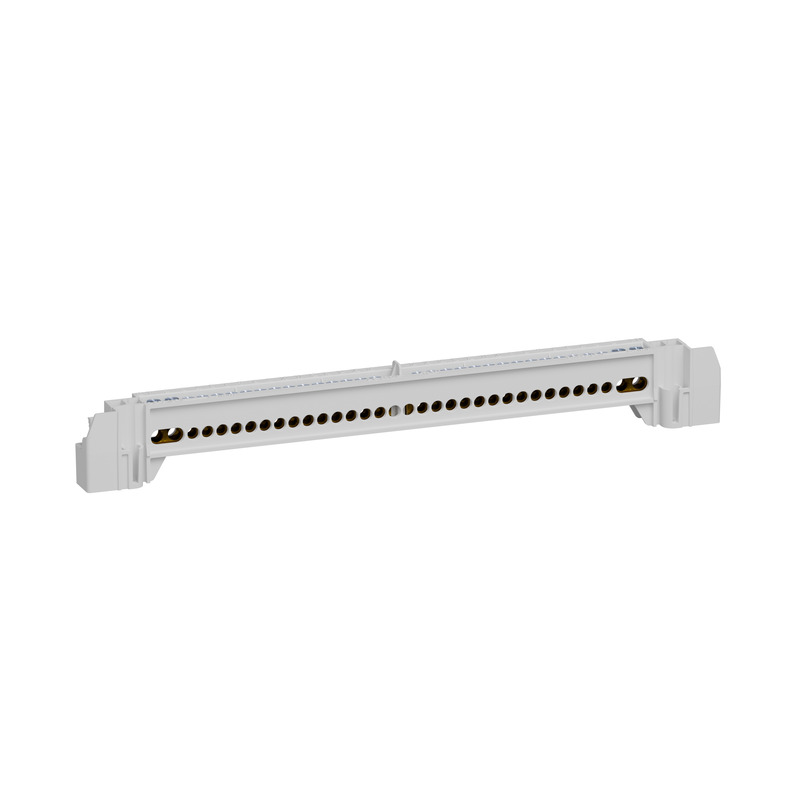

AK 24 PE/N-S
Productnumber 73485201
PE- and N-screwterminal: PE and N each with 2 clamping points of 6-16...
Terminal rail, as additional terminals or for replacement for installation in AK 24 and AK36 (since...
Terminal rails

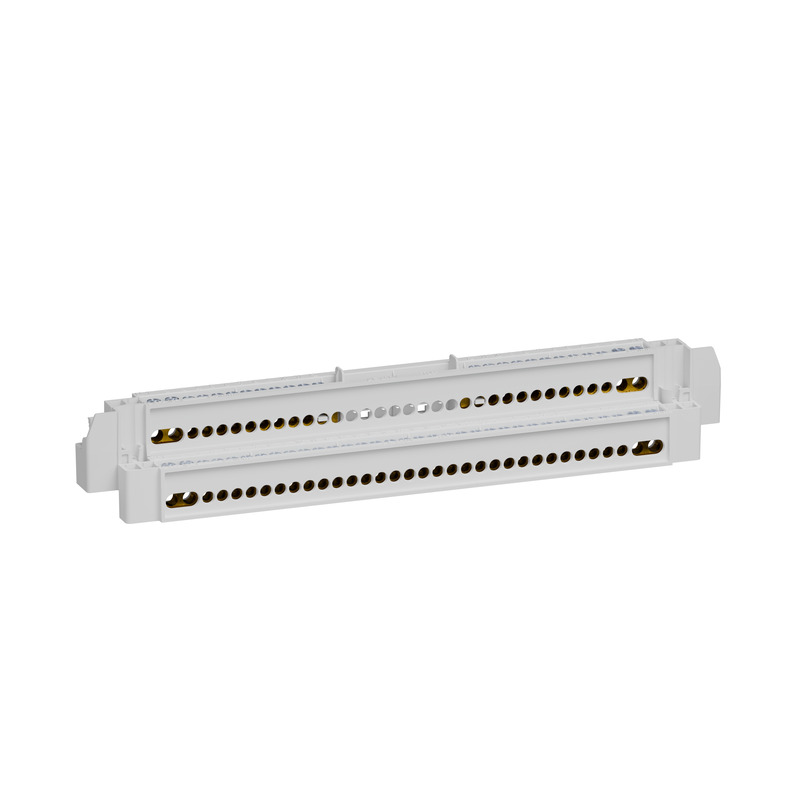

AK 36 PE/N-S
