#63501201 | Dimensions: 130 x 130 x 75 mm

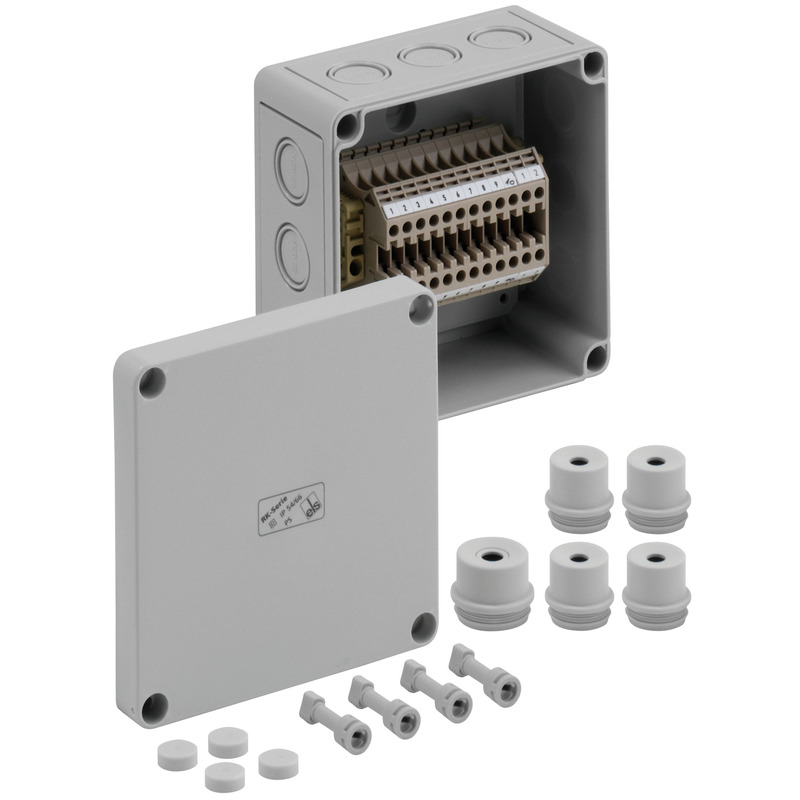

Terminal block enclosure
Terminal block enclosure, protection class IP54/IP66, nominal cross-section 4 mm², Ui=400V AC, Polycarbonate, internal fixing points, for installations in industrial environments and protected outdoor areas
equipped with 12 screw terminals 4mm², (type Weidmüller WDU 4)
Accessories supplied:

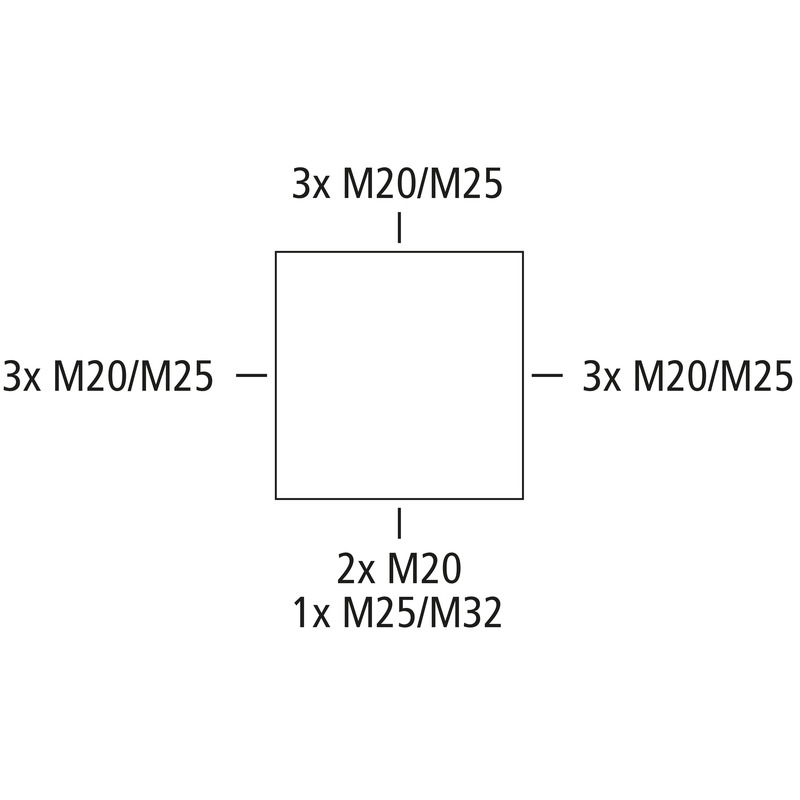

4 Attachment bushes IP54 M20 sealing range 8 - 13,5 mm, 1 Attachment bushes IP54 M25 sealing range 9 - 18,5 mm
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP54/IP66 |
| UL Type Rating | not specified |
| Width | 130 mm |
|---|---|
| Length | 130 mm |
| Height | 75 mm |
| Weight | 0.475 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | yes |
| Stackable | yes |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902573028 |
|---|---|
| ETIM Class | EC002713 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| EAN / GTIN | 4013902573035 |
|---|---|
| Width | 0.357 m |
| Weight | 6.931 kg |
| Height | 0.247 m |
| Quantity | 14 pieces |
| Depth | 0.26 m |
| EAN / GTIN | 4013902573042 |
|---|---|
| Width | 0.8 m |
| Weight | 367.114 kg |
| Height | 1.87 m |
| Quantity | 756 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902573028 |
|---|---|
| Width | 0.13 m |
| Weight | 0.475 kg |
| Height | 0.075 m |
| Quantity | 1 pieces |
| Depth | 0.13 m |
Mounting material
HBA
Productnumber 19000101
Set = 4 pcs.
Manual activation attachment consisting of plastic for snapping onto the standard lid screw for TK...
External hinge set
ASS-kl
Productnumber 19000201
External hinge set small, TK PS/PC 77 bis TK PS/PC 1809
External hinge set for retrofitting the enclosure cover to hinged door, incl. 2 hinges, fixing...
Combi set
KS M20
Productnumber 19202001
Thread length 17 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M25
Productnumber 19202501
Thread length 19 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M25-gro
Productnumber 19202601
Thread length 22 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M32
Productnumber 19203201
Thread length 20 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
External fixing lugs kit
TK ABL
Productnumber 19400101
Set = 4 pcs.
External fixing lugs set made of plastic, for all TK PS/PC, RK enclosures, from TK PS/PC 77
Cable tray fastening
KTB 1-100
Productnumber 89602901
Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

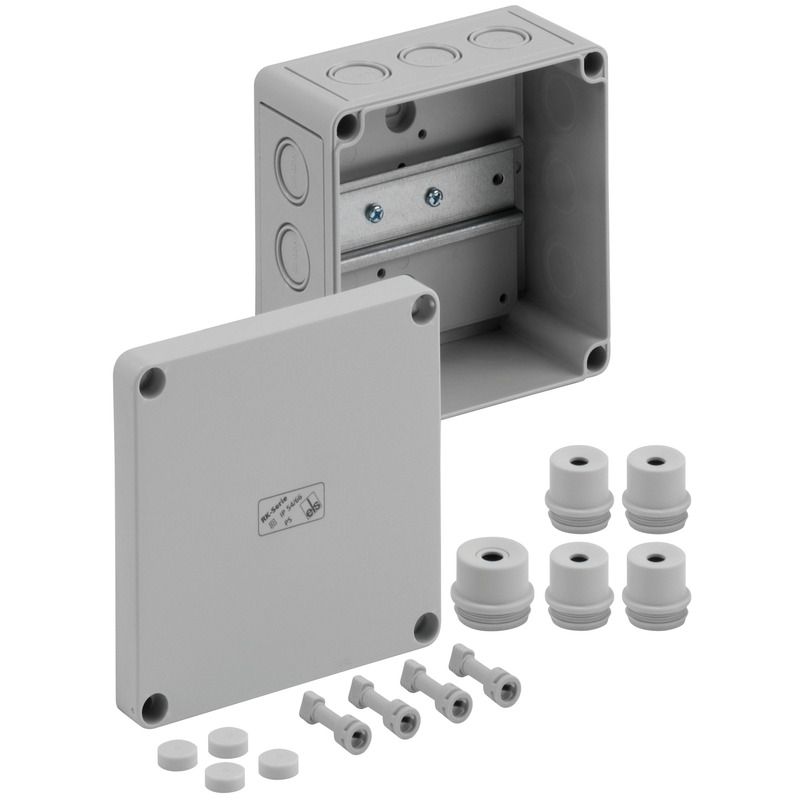

Terminal block enclosure
RKi 4/12-L
Productnumber 63390601
without terminals, with mounting rail NS35
Terminal block enclosure, protection class IP54/IP66, nominal cross-section 4 mm², Ui=400V AC,...

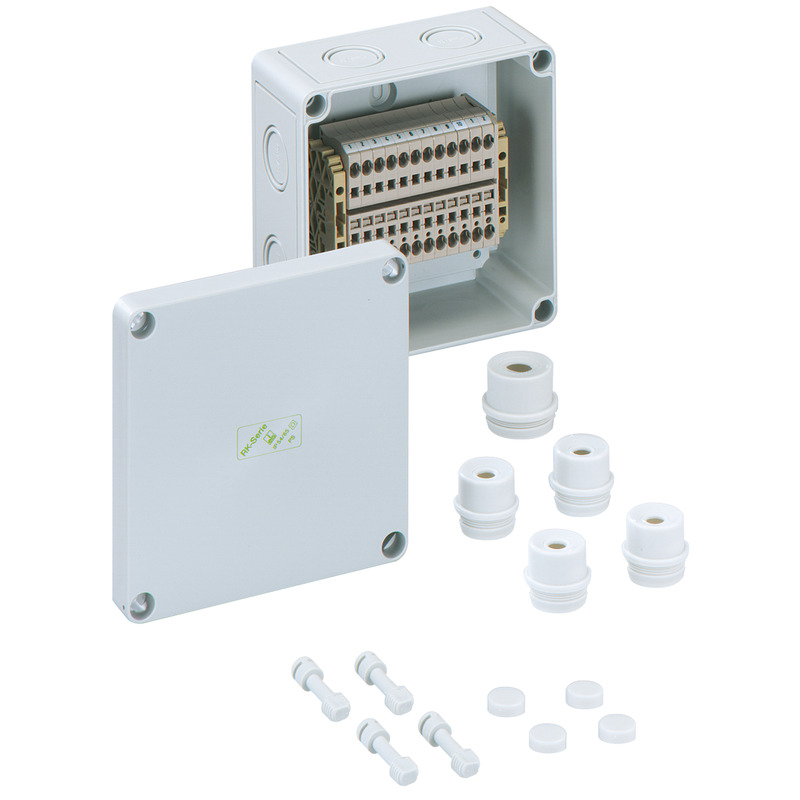

Terminal block enclosure
