#63041801 | Dimensions: 180 x 94 x 57 mm

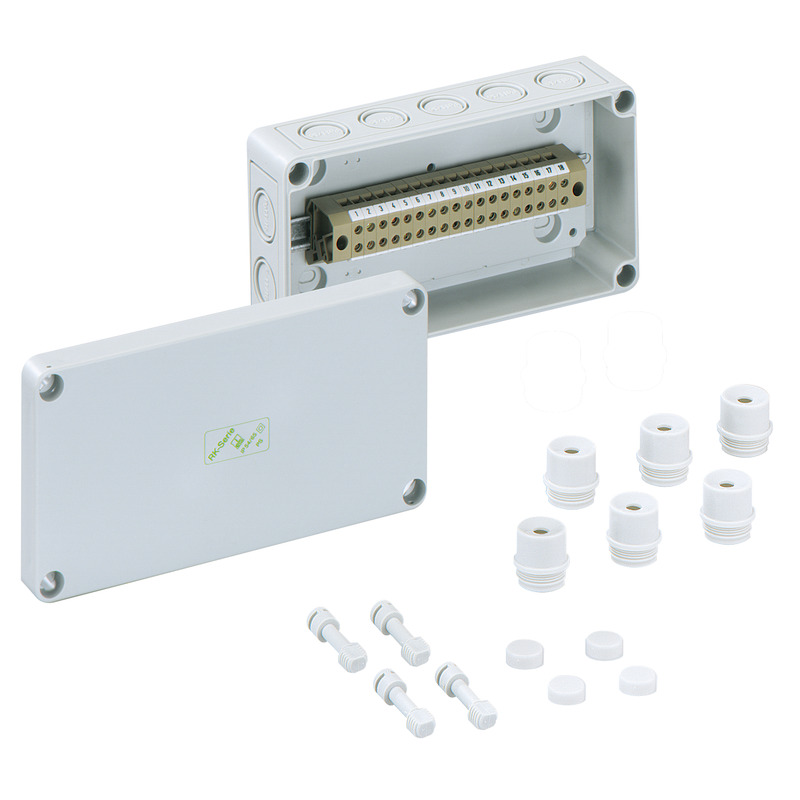

Terminal block enclosure
Terminal block enclosure, protection class IP54/IP66, nominal cross-section 4 mm², Ui=400V AC, Polycarbonate, internal fixing points, for installations in industrial environments and protected outdoor areas
equipped with 18-pole terminal block 4mm² (Contaclip BKA 4 type)
Accessories supplied:
8 attachment bushes IP54 M20 seal range 8 - 13,5 mm
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP54/IP66 |
| UL Type Rating | not specified |
| Width | 180 mm |
|---|---|
| Length | 94 mm |
| Height | 57 mm |
| Weight | 0.39 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | yes |
| Stackable | yes |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902572878 |
|---|---|
| ETIM Class | EC002713 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| EAN / GTIN | 4013902572885 |
|---|---|
| Width | 0.357 m |
| Weight | 5.741 kg |
| Height | 0.247 m |
| Quantity | 14 pieces |
| Depth | 0.26 m |
| EAN / GTIN | 4013902572892 |
|---|---|
| Width | 0.8 m |
| Weight | 332.014 kg |
| Height | 1.87 m |
| Quantity | 756 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902572878 |
|---|---|
| Width | 0.18 m |
| Weight | 0.39 kg |
| Height | 0.057 m |
| Quantity | 1 pieces |
| Depth | 0.094 m |
