#16040601 | Dimensions: 125 x 80 x 57 mm

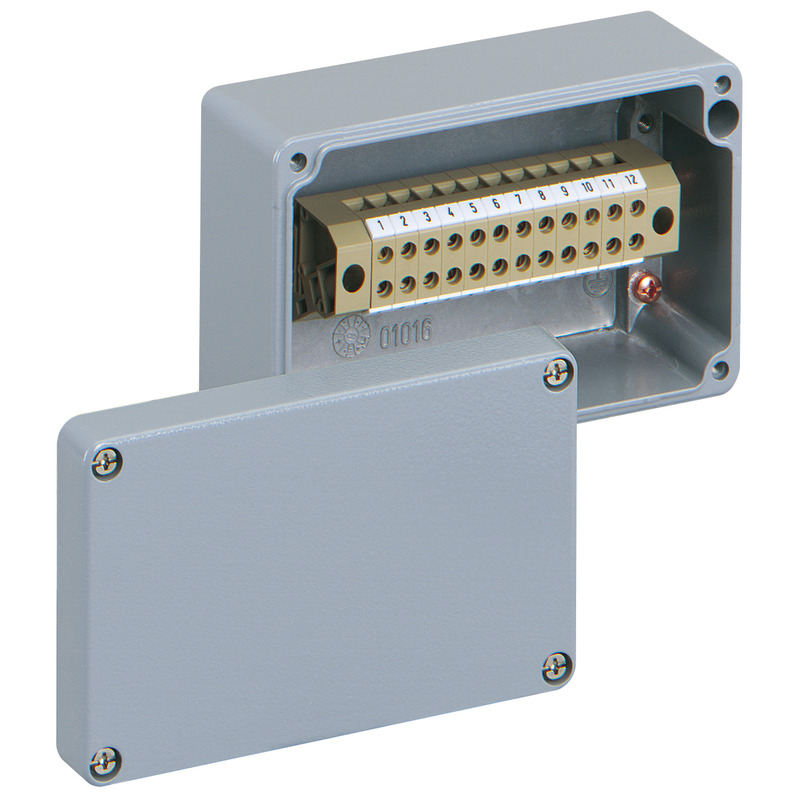

Terminal block enclosure
Terminal block enclosure, protection class IP66, nominal cross-section 4 mm², Ui=400V AC, Aluminium, powder-coated painting, internal fixing points, for installations in industrial environments and protected outdoor areas
equipped with 12-pole terminal block 4mm² (Contaclip BKA 4 type)
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Type of protection | IP66 |
| UL Type Rating | not specified |
| Width | 125 mm |
|---|---|
| Length | 80 mm |
| Height | 57 mm |
| Weight | 0.515 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK09 |
| Sealable | yes |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 75 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902120178 |
|---|---|
| ETIM Class | EC002713 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Aluminium, powder-coated painting |
|---|---|
| Cover material | Aluminium, powder-coated painting |
| Sealing material | Polyurethane |
| EAN / GTIN | 4013902329199 |
|---|---|
| Width | 0.357 m |
| Weight | 7.94 kg |
| Height | 0.127 m |
| Quantity | 15 pieces |
| Depth | 0.257 m |
| EAN / GTIN | 4013902329205 |
|---|---|
| Width | 0.8 m |
| Weight | 875.52 kg |
| Height | 1.67 m |
| Quantity | 1620 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902120178 |
|---|---|
| Width | 0.125 m |
| Weight | 0.515 kg |
| Height | 0.057 m |
| Quantity | 1 pieces |
| Depth | 0.08 m |
