#97600401 | Dimensions: 150 x 150 x 106 mm

Installation housing

IBTronic H120-P

Installation housing, for site cast or prefabricated concrete structures, for the installation of LV/HV/LED-luminaires and loudspeakers, suitable for adhesive fixing and opposing shuttering, for...

Login to see price

Description

Installation housing, for site cast or prefabricated concrete structures, for the installation of LV/HV/LED-luminaires and loudspeakers, suitable for adhesive fixing and opposing shuttering, for installation in ceilings from 140 mm, wall installation with IBT support spars, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, protection class IP30, rated insulation voltage: 400V AC, Halogen free

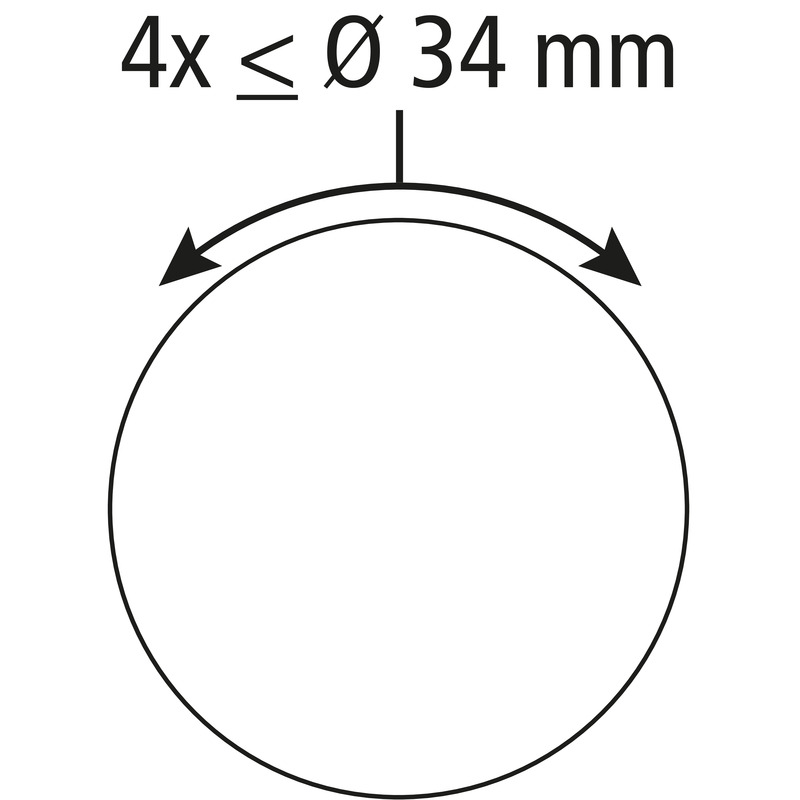

Selectable outlet aperture: Fermacell® plasterboard, variable up to Ø 100 mm. For the installation of VDE-tested luminaires in accordance with DIN EN 60598 (VDE 0711), and with F-identification or MM-identification, maximum installation depth LV luminaires: 75 mm, HV lights: 80 mm, lamp output halogen max. 50 W, lamp output, LED max. 20 W, adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M32

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction

Colours

Cover colour	other

Dimensions

Width	150 mm
Length	150 mm
Height	106 mm
Inner height	80 mm
Weight	0.36 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902926381
ETIM Class	EC000414
Custom tariff number	39269097
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902347988
Width	0.372 m
Weight	3.99 kg
Height	0.372 m
Quantity	10 pieces
Depth	0.262 m

Pallet

EAN / GTIN	4013902347995
Width	0.8 m
Weight	161.64 kg
Height	1.65 m
Quantity	360 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902926381
Width	0.15 m
Weight	0.36 kg
Height	0.106 m
Quantity	1 pieces
Depth	0.15 m
