WKE 400 7 x 10² 2D0

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), M25/M32, (3 side), external fixing lugs, with E30 electrical functional integrity...

Customize

Login to see price

Description

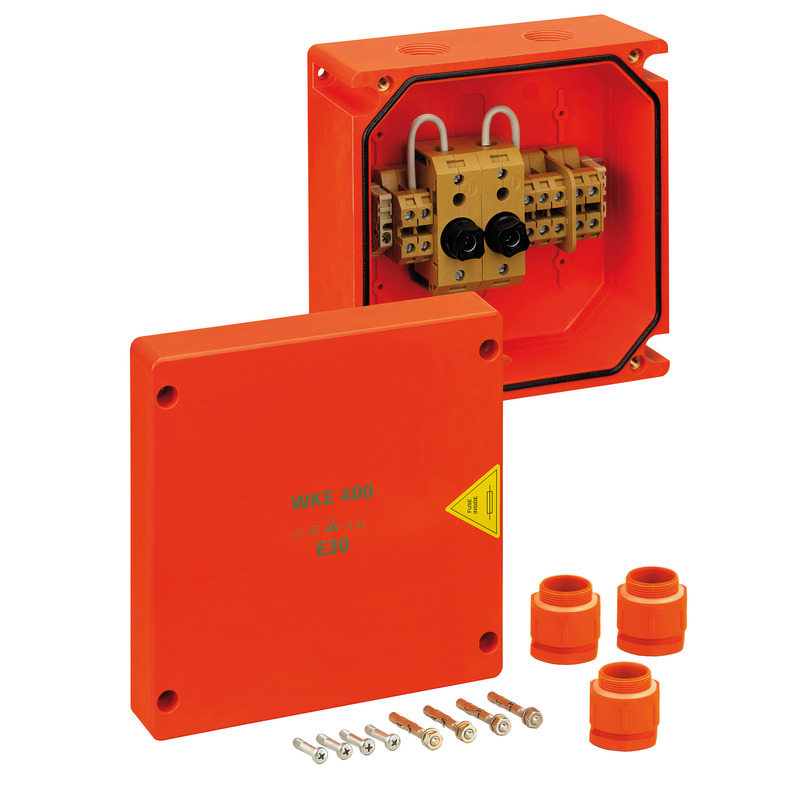

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), M25/M32, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, enclosure and terminal block are made from halogen-free special thermosetting plastic

orange, Junction box with fused branch, connection box 3-pole, junction box 3-pole, number of clampable wires per pole 4 x 1.5 - 10 mm², clamping capacity per terminal point 1 x 1.5 - 10 mm², fuse holder DO2, max. 6 A

Accessories supplied:

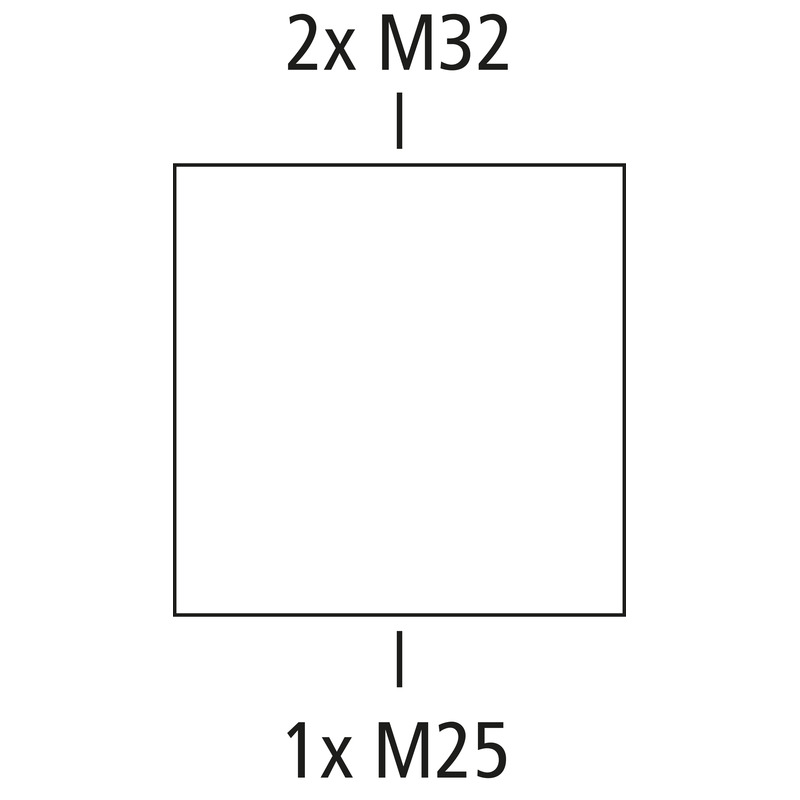

2 off cable glands M32 (17 - 26mm), 1 off cable gland M25 (9 - 19mm), wall plug set ø 6 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	1,5 mm²
max. wire cross section (wire branching)	10 mm²
Min. conductor cross section	1,5 mm²
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP66
secured junction	yes
Circuit integrity class	E30
Number of poles (T-piece)	3
Number of poles (feed-through)	3
UL Type Rating	not specified
Number of fuses in T-piece	2

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Fused T-piece

Dimensions

Width	200 mm
Length	200 mm
Height	110 mm
Inner length	176 mm
Inner width	176 mm
Inner height	84 mm
Weight	3.74 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	no
Cover screw torque	2.5 Nm
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902574834
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Plastic
Sealing material	Thermoplastic elastomer

Certificates

Test mark	VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2))

Logistic data

Outer packaging

EAN / GTIN	4013902574834
Width	0.21 m
Weight	3.87 kg
Height	0.125 m
Quantity	1 pieces
Depth	0.209 m

Pallet

EAN / GTIN	4013902574841
Width	0.8 m
Weight	370.3 kg
Height	0.607 m
Quantity	90 pieces
Depth	1.2 m
