cabinet

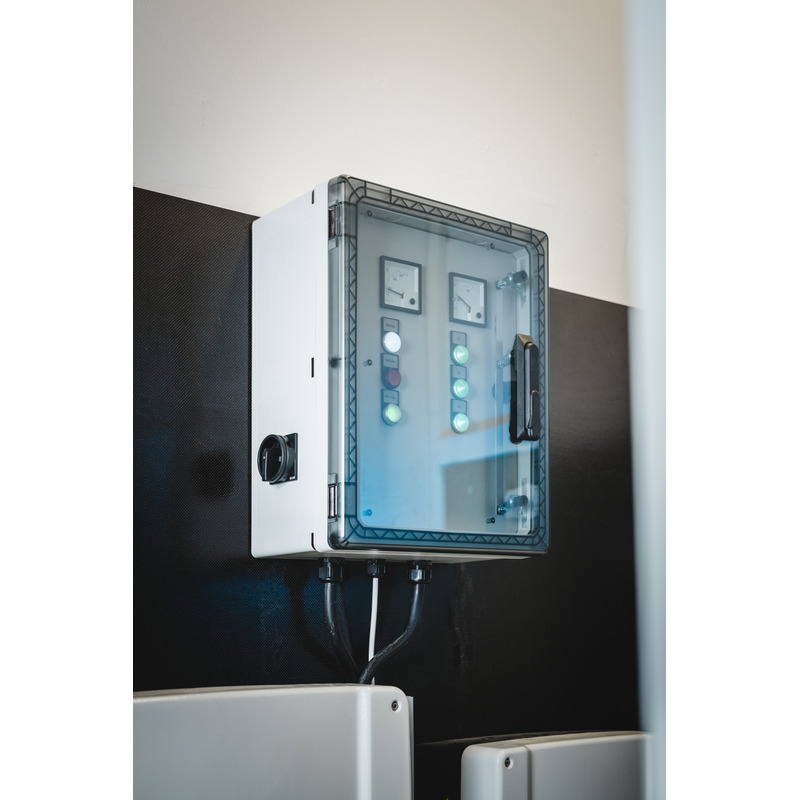

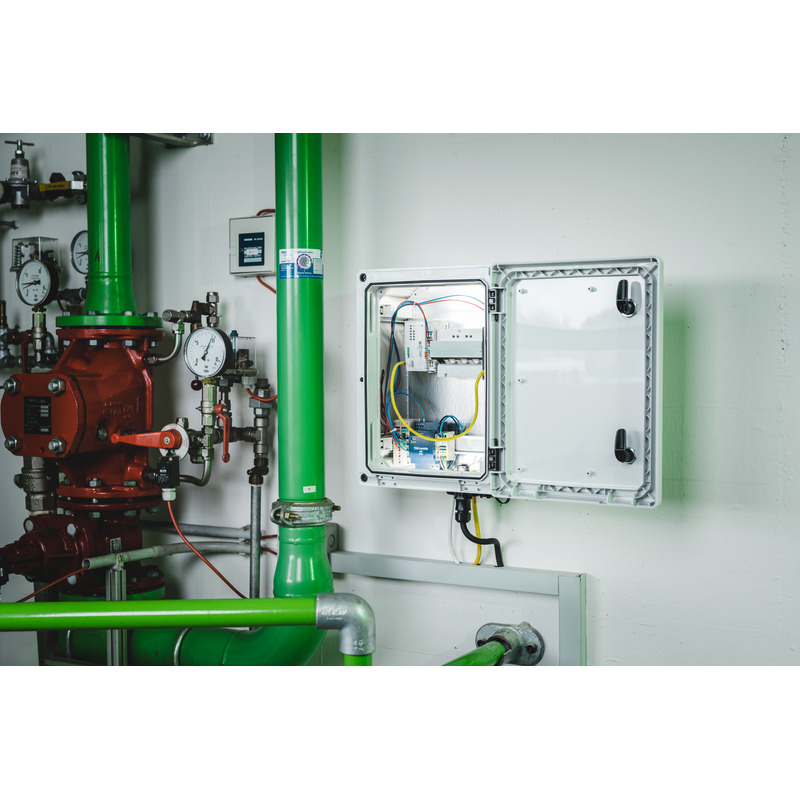

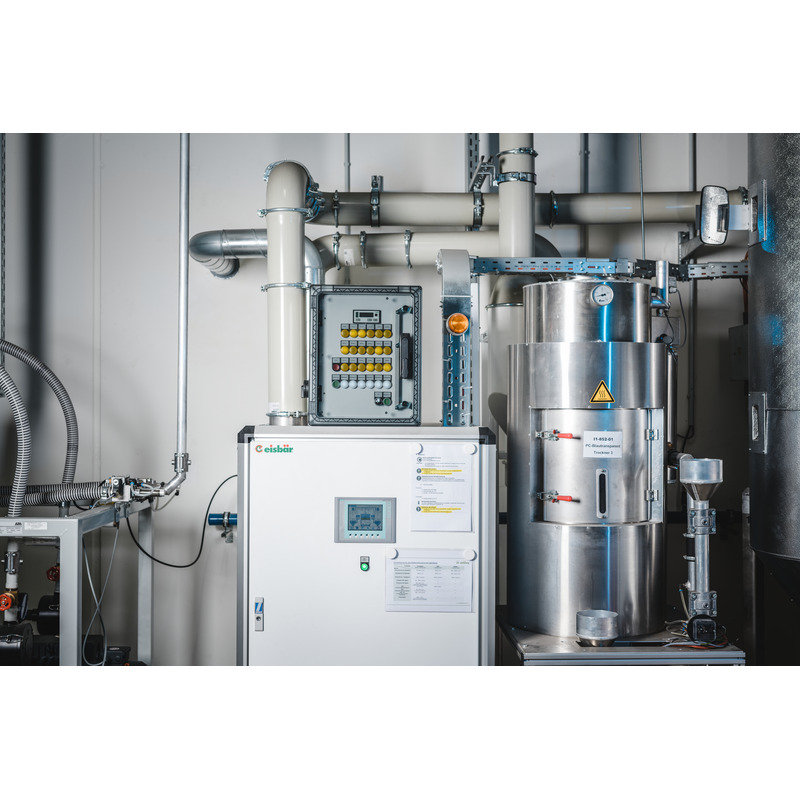

GEOS-S 3040-18-o/SH

Productnumber: 72043401 | Dimensions: 300 x 400 x 180 mm

Cabinet, suitable for installation in harsh environments and in exposed outside areas, box and frame: glass-fibre reinforced polycarbonate, grey, similar to RAL 7035, door: Polycarbonate.
Swivel lever for inserting profile-cylinders in accordance to DIN 18252

with grey door

electrical characteristics

Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1500 V
Protection class	II
Type of protection	IP66/IP67/IP69
vented	no
UL Type Rating	4X, 12/12K

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	300 mm
Length	400 mm
Height	180 mm
Inner length	371 mm
Inner width	271 mm
Inner height	158 mm
Weight	3.996 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Burning behaviour in accordance with UL 50/UL 746C	comparable with 5VA
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK09
Sealable	yes
Flange variant	no
Stackable	no
Stop system	2-point installation, swivel lever
with fastening points in the cover	yes
Type of top part	Door
Locking insert	none

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

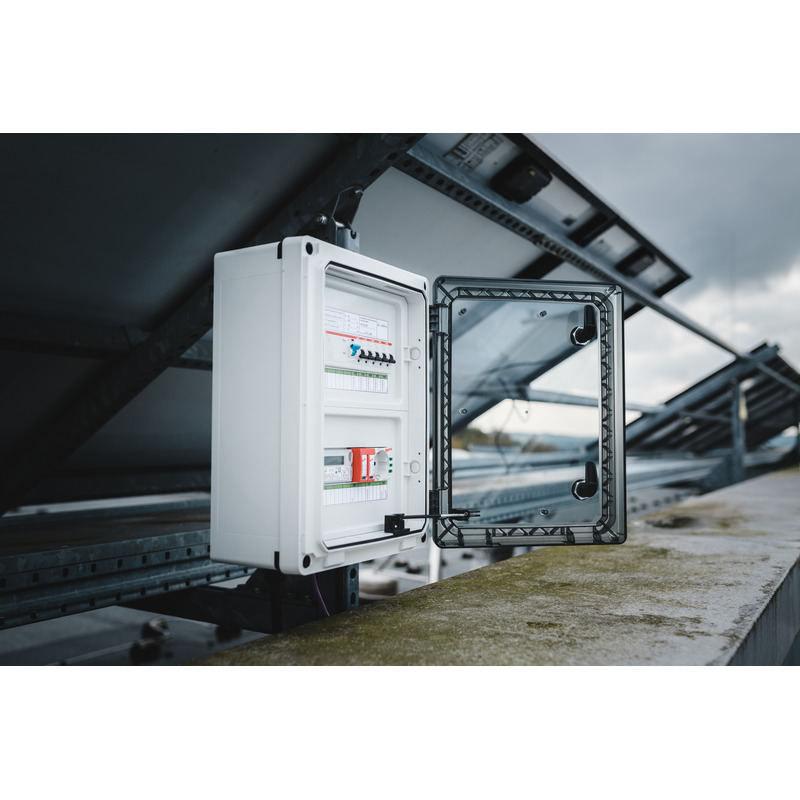

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902646036
Packing Unit Code	CT
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Entry material	not relevant
Sealing material	Silicone
Cover screw material	Polyamide, glass-fibre reinforced

Certificates

Test mark	UL-EU (EN 62208)
Test mark	UL-EU (EN 61439-1/-2)
Test mark	UL-EU (EN 61439-1/-3)
Test mark	UL-EU (EN 61439-1 & EN IEC 61439-7)
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)
