#24842001 | Dimensions: 26,5 x 26,5 x 42 mm

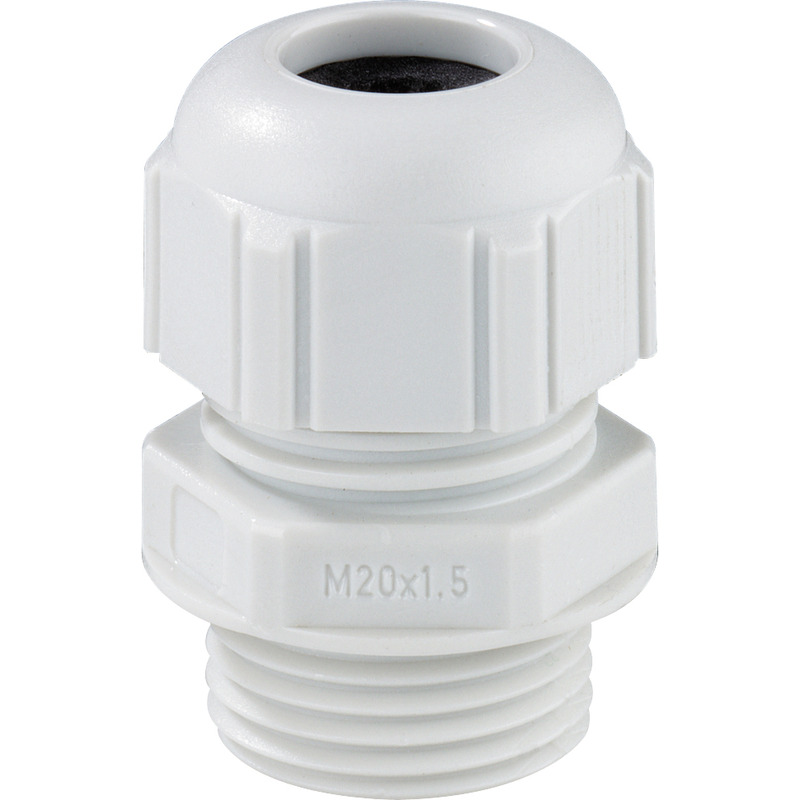

Cable gland

KVR M20 LG

Cable gland, IP68/IP69*, with strain relief, long thread, M_ x 1.5 mm, without locknut, polyamide, grey
(* IP69 in conjunction with GEOS series empty enclosures and switch cabinets and Abox Pro...

read more

Description

Cable gland, IP68/IP69*, with strain relief, long thread, M_ x 1.5 mm, without locknut, polyamide, grey
(* IP69 in conjunction with GEOS series empty enclosures and switch cabinets and Abox Pro series connection boxes), certified by DNV (class: ships & offshore installations)

Sealing range 6 - 12 mm, Thread length 15 mm

Technical Data

Logistic data

Inner packaging

4013902620944
0.115
0.566
0.165
50
0.083

Outer packaging

4013902620920
0.357
3.611
0.127
300
0.257

Pallet

4013902620937
0.8
412
1.67
32400
1.2

Piece

4013902620913
0.027
0.0107
0.042
1
0.027
