Description
Empty enclosure, for individual expansion with standard rails or mounting plates
IP65, protective insulation, box + lid polycarbonate, grey, simil. RAL 7035
#59122001 | Dimensions: 150 x 150 x 137 mm
Empty enclosure
Technical Data
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
Colours
| Base unit colour | grey |
|---|
Dimensions
| Width | 150 mm |
|---|---|
| Length | 150 mm |
| Height | 137 mm |
| Inner length | 140 mm |
| Inner width | 140 mm |
| Inner height | 119 mm |
| Weight | 0.5904 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK07 |
Ambient conditions
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902395866 |
|---|---|
| ETIM Class | EC000058 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
Material
| Base unit material | Plastic |
|---|---|
| Cover material | Polycarbonate |
Logistic data
Outer packaging
| EAN / GTIN | 4013902395866 |
|---|---|
| Width | 0.318 m |
| Weight | 1.18 kg |
| Height | 0.18 m |
| Quantity | 1 pieces |
| Depth | 0.158 m |
Pallet
| EAN / GTIN | 4013902395859 |
|---|---|
| Width | 0.8 m |
| Weight | 178 kg |
| Height | 1.57 m |
| Quantity | 130 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet

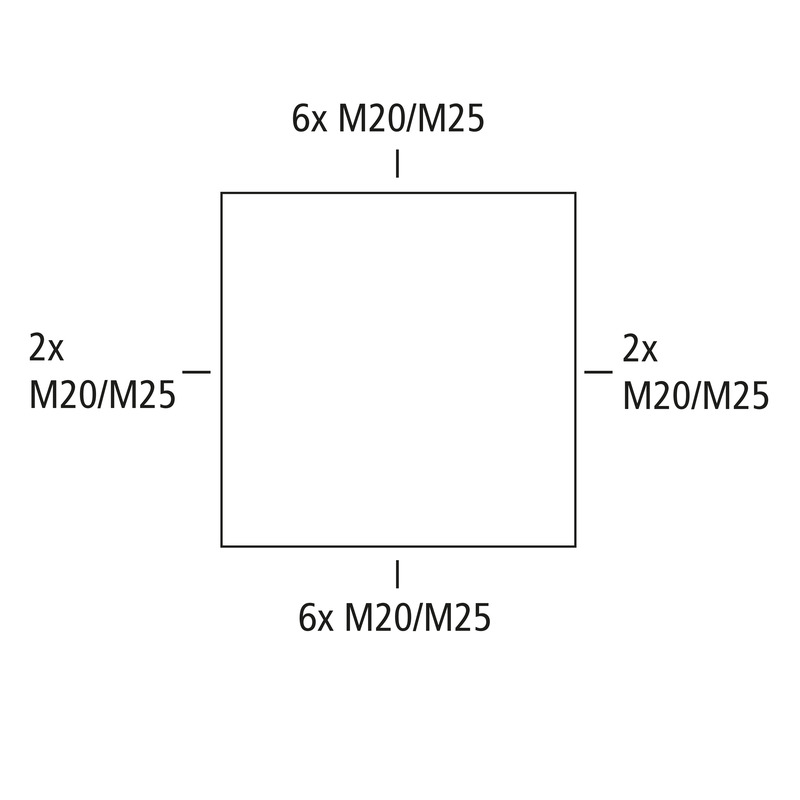

Dimensioned drawing
