#33591201 | Dimensions: 85 x 85 x 37 mm

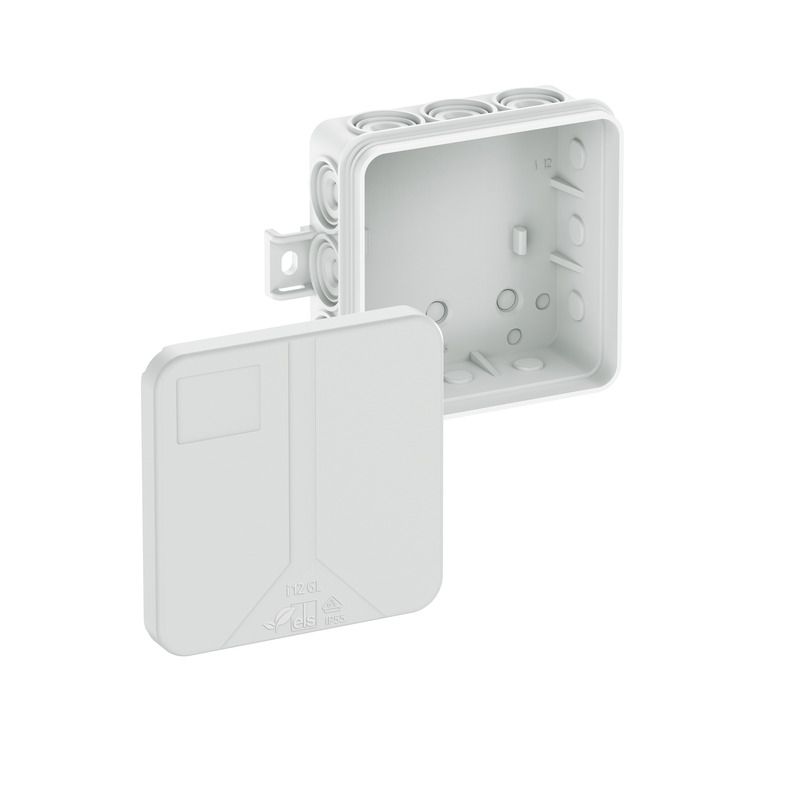

Junction box, sustainable

i 12-L GL

Junction box, sustainable, GreenLine, protection class IP55, nominal cross-section 2.5 mm², U_i=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing insertion membranes,...

Login to see price

Remember product

Description

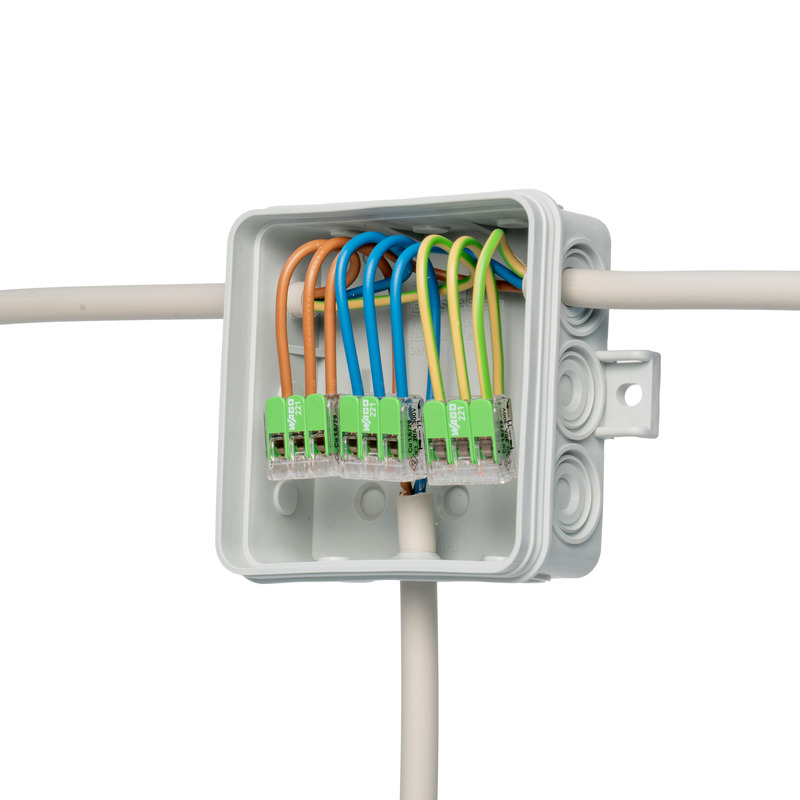

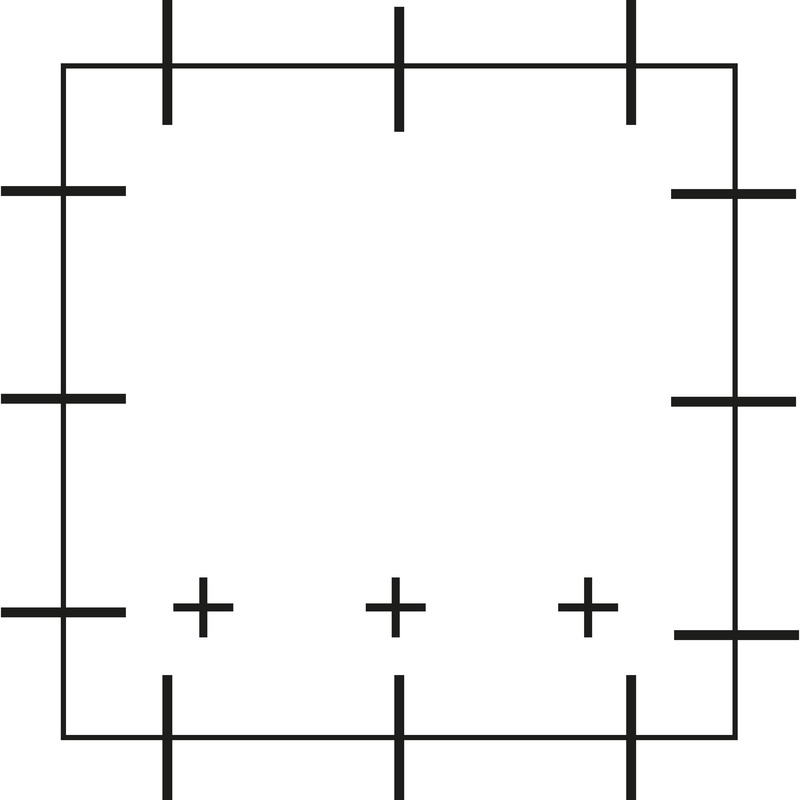

Junction box, sustainable, GreenLine, protection class IP55, nominal cross-section 2.5 mm², U_i=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing insertion membranes, sealing range 8,2 - 12,5 mm, (3 rear, 12 side), external fixing lugs, made from recycled plastics, for standard indoor installations

grey, I_n=24 A, without terminals

Highlights

GreenLine - The environmentally friendly junction box with proven quality. The i 12-L GL consists of at least 90 % PCR. By using recycled plastics, the ecological footprint can be reduced by at least 40 % compared to the conventional i 12.

Technical Data

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	400 V
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP55
Terminal type	none
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	85 mm
Length	85 mm
Height	37 mm
Inner length	74 mm
Inner width	74 mm
Inner height	32 mm
Weight	0.044 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

for sealing range min	8.2 mm
for sealing range max	12.5 mm
Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	no
Type of fastening	Wall/ceiling mounting
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902689651
ETIM Class	EC002600
Custom tariff number	85389099
Minimum order quantity	10

Material

Base unit material	Recycled polyethylene
Cover material	Recycled polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Logistic data

Inner packaging

EAN / GTIN	4013902689668
Width	0.34 m
Weight	0.45 kg
Height	0.105 m
Quantity	10 pieces
Depth	0.07 m

Piece

EAN / GTIN	4013902689651
Width	0.085 m
Weight	0.044 kg
Height	0.037 m
Quantity	1 pieces
Depth	0.085 m

Outer packaging

EAN / GTIN	4013902689675
Width	0.444 m
Weight	2.98 kg
Height	0.19 m
Quantity	60 pieces
Depth	0.329 m

Pallet

EAN / GTIN	4013902689682
Width	0.8 m
Weight	190.26 kg
Height	1.85 m
Quantity	3600 pieces
Depth	1.2 m
