#33420401 | Dimensions: 56 x 40 x 23 mm

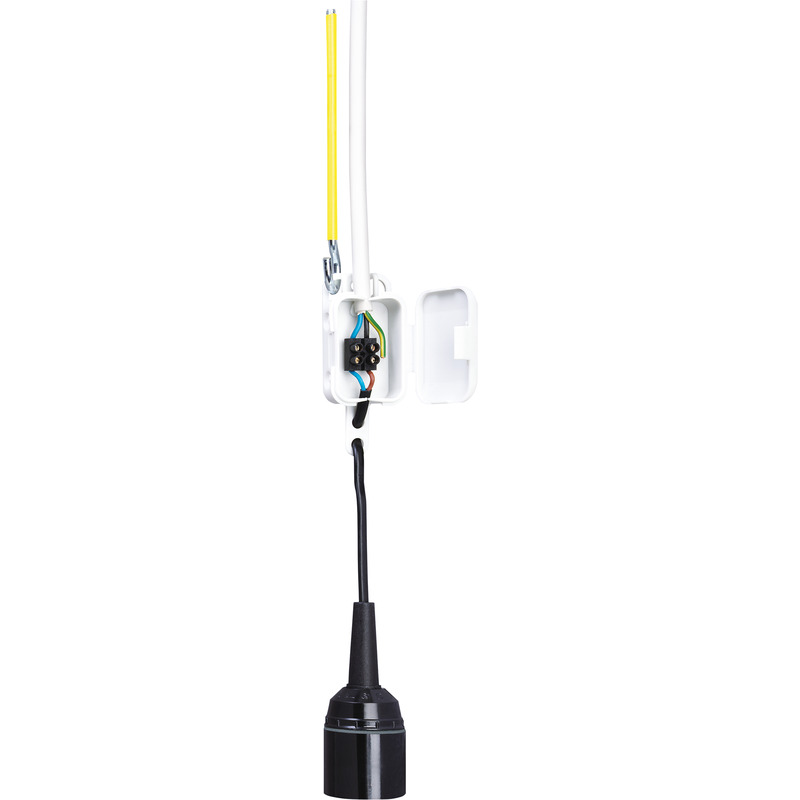

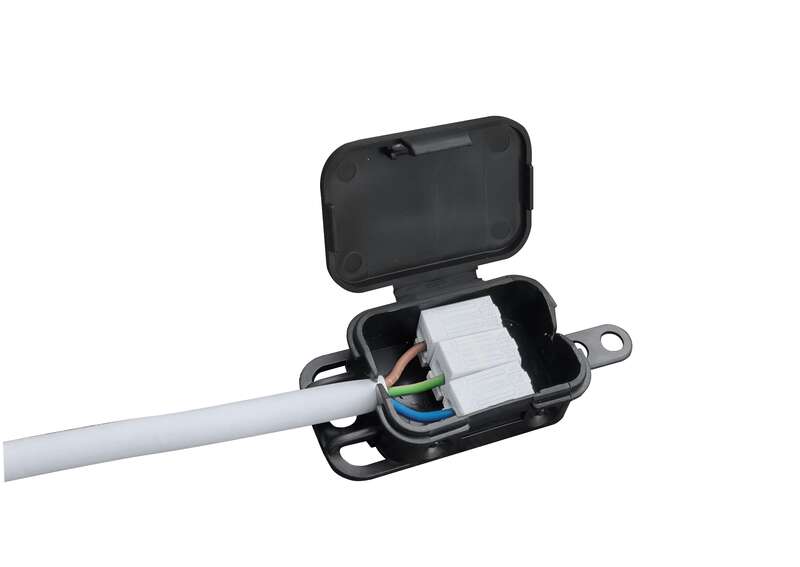

Light fixture junction box
Light fixture junction box, protection class IP20, nominal cross-section 2.5 mm², Ui=230 V AC, certified by VDE (DIN EN 60598-1 (VDE 0711-1)), inserts with cable retention capacity, (4 side), for standard indoor installations, with cable retention, cable entry from above possible
black, without terminals
| Rated operating voltage AC | 230 V |
|---|---|
| Rated operating voltage DC | 230 V |
| Rated insulation voltage AC | 230 V |
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP20 |
| UL Type Rating | not specified |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 56 mm |
|---|---|
| Length | 40 mm |
| Height | 23 mm |
| Weight | 0.012 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | no |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902707188 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 50 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60598-1 (VDE 0711-1)) |
|---|
| EAN / GTIN | 4013902707188 |
|---|---|
| Width | 0.056 m |
| Weight | 0.012 kg |
| Height | 0.023 m |
| Quantity | 1 pieces |
| Depth | 0.04 m |
| EAN / GTIN | 4013902707195 |
|---|---|
| Width | 0.357 m |
| Weight | 0.79 kg |
| Height | 0.127 m |
| Quantity | 50 pieces |
| Depth | 0.257 m |
| EAN / GTIN | 4013902707201 |
|---|---|
| Width | 0.8 m |
| Weight | 105.32 kg |
| Height | 1.67 m |
| Quantity | 5400 pieces |
| Depth | 1.2 m |
