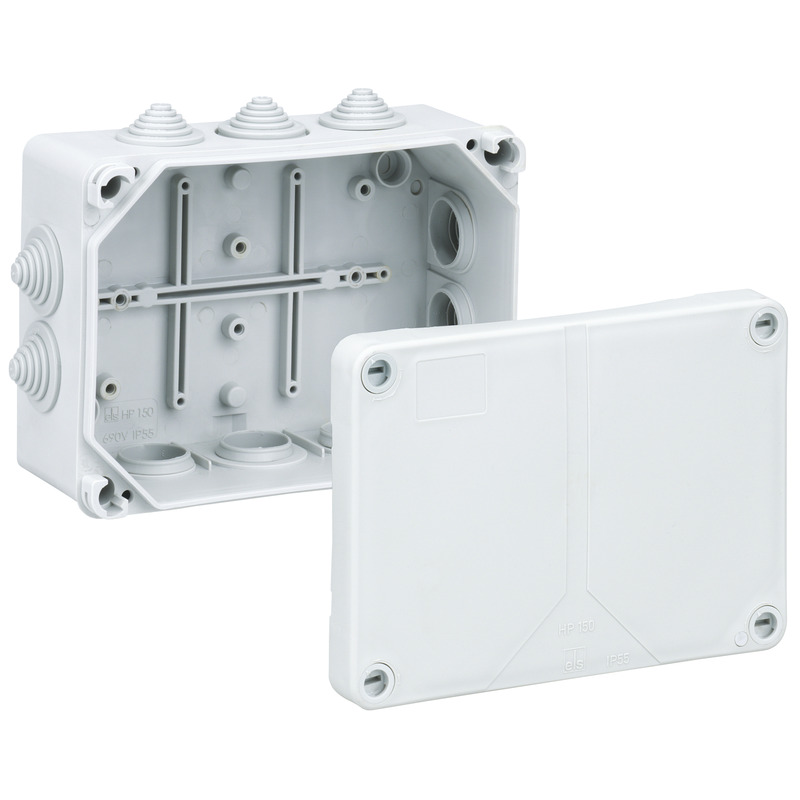

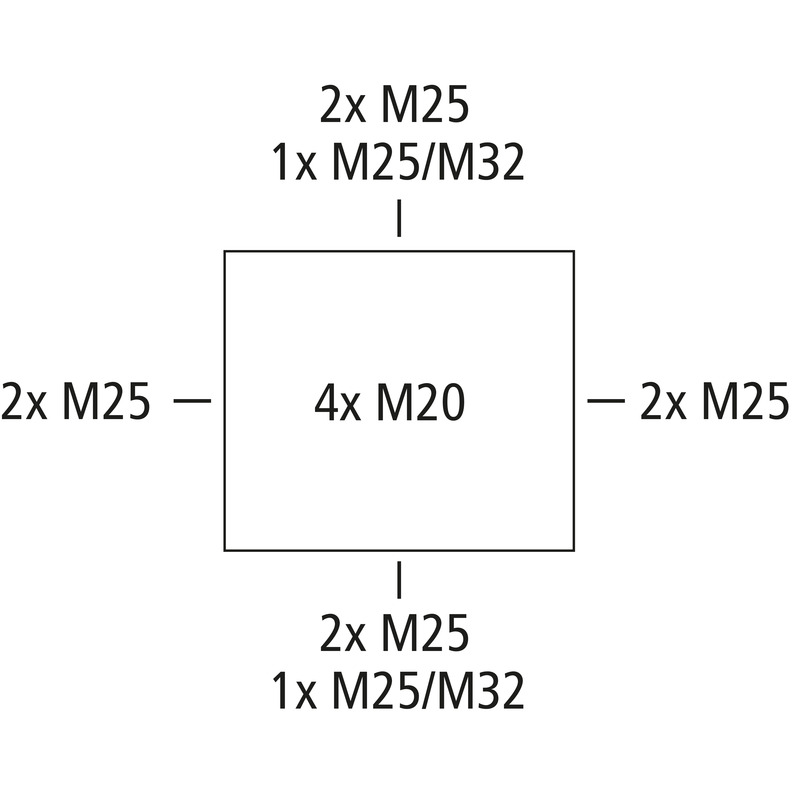

Junction box, protection class IP55, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), stepped nipple, M20/M25/M32, sealing range 5 - 21 mm, (4 rear, 10 side), internal fixing points, for standard indoor installations
grey, without terminals
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 10 mm² |
| Protection class | II |
| Type of protection | IP55 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 164 mm |
|---|---|
| Length | 119 mm |
| Height | 77 mm |
| Inner length | 110 mm |
| Inner width | 155 mm |
| Inner height | 70 mm |
| Weight | 0.25 kg |
| UV-resistant | no |
|---|---|
| Halogen free | no |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 5 mm |
|---|---|
| for sealing range max | 21 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902940066 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 12 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902339549 |
|---|---|
| Width | 0.437 m |
| Weight | 3 kg |
| Height | 0.212 m |
| Quantity | 12 pieces |
| Depth | 0.317 m |
| EAN / GTIN | 4013902339556 |
|---|---|
| Width | 0.8 m |
| Weight | 147.34 kg |
| Height | 1.85 m |
| Quantity | 576 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902940066 |
|---|---|
| Width | 0.164 m |
| Weight | 0.25 kg |
| Height | 0.077 m |
| Quantity | 1 pieces |
| Depth | 0.119 m |
Standard rail
NS 35-106
Productnumber 19810601
for TK 1309, TK 1313 and Abox/Abox-i 100, length 106 mm
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
Standard rail

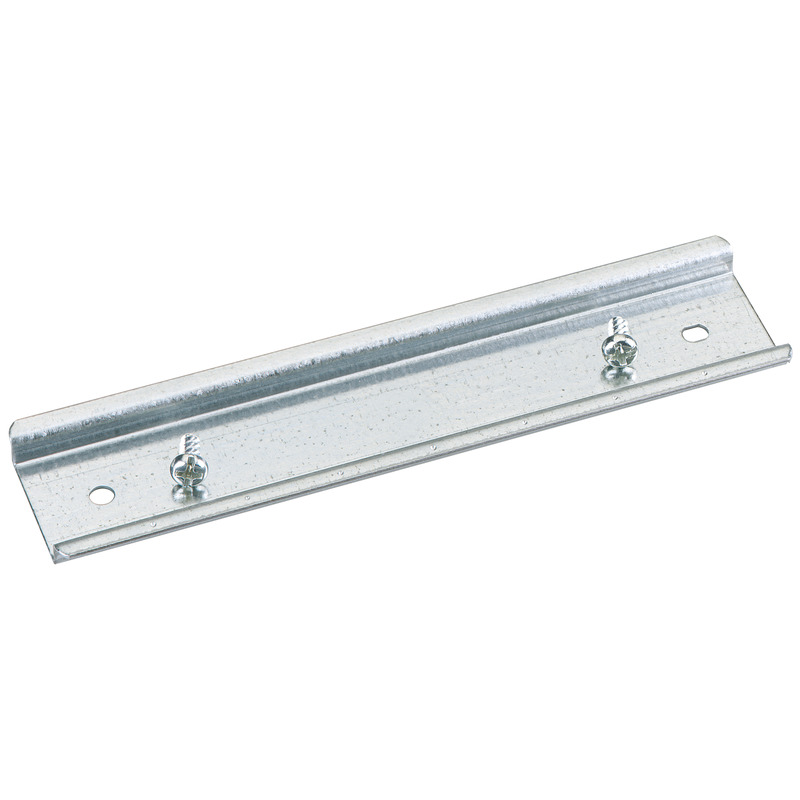

NS 35-144
Productnumber 19814401
TK PS/PC 1809/1811/1813/1818/2518
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
Stepped nipple

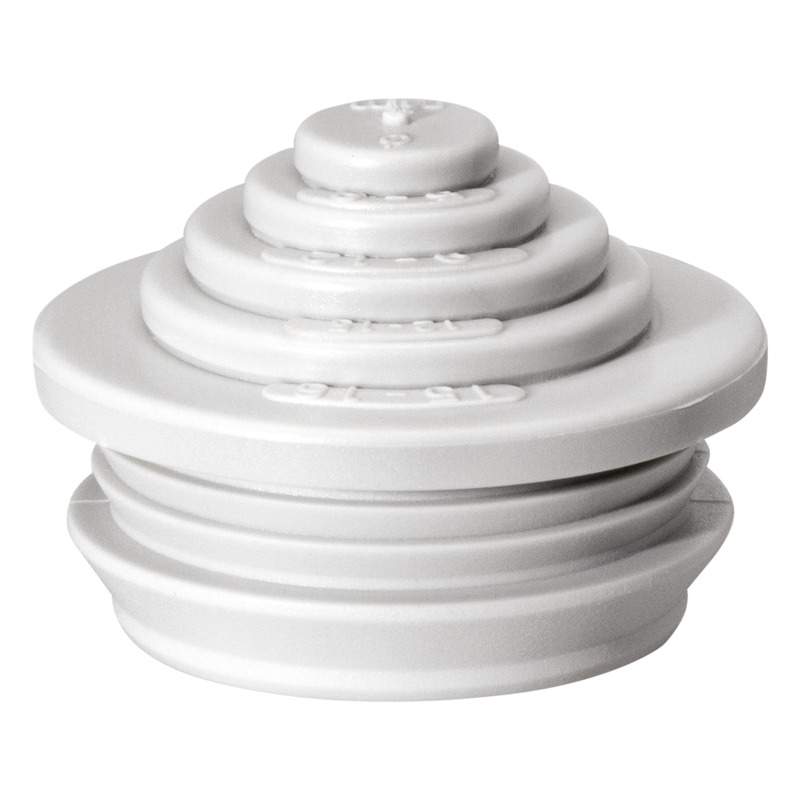

SNI M25
Productnumber 21642501
Sealing range 5 - 21 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Terminal block

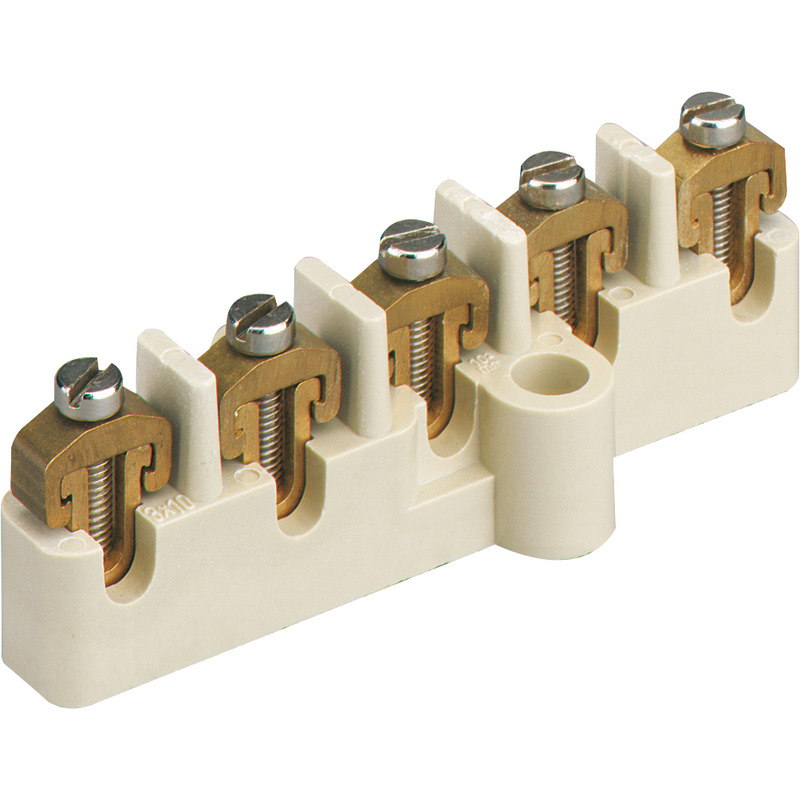

WK 100 KLS-10²
Productnumber 46051001
5x10 mm², for K15, K3-, K4-EK boxes
Connecting terminal, Ui=400V / 690V
Standard rail
NS 35-90
Productnumber 97980001
standard rail (35 mm) for subsequent installation in IBTronic-TT...
Standard rail acc. to DIN EN 60715, 35 x 7.5mm
Cable tray fastening
KTB 1-100
Productnumber 89602901
Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...
