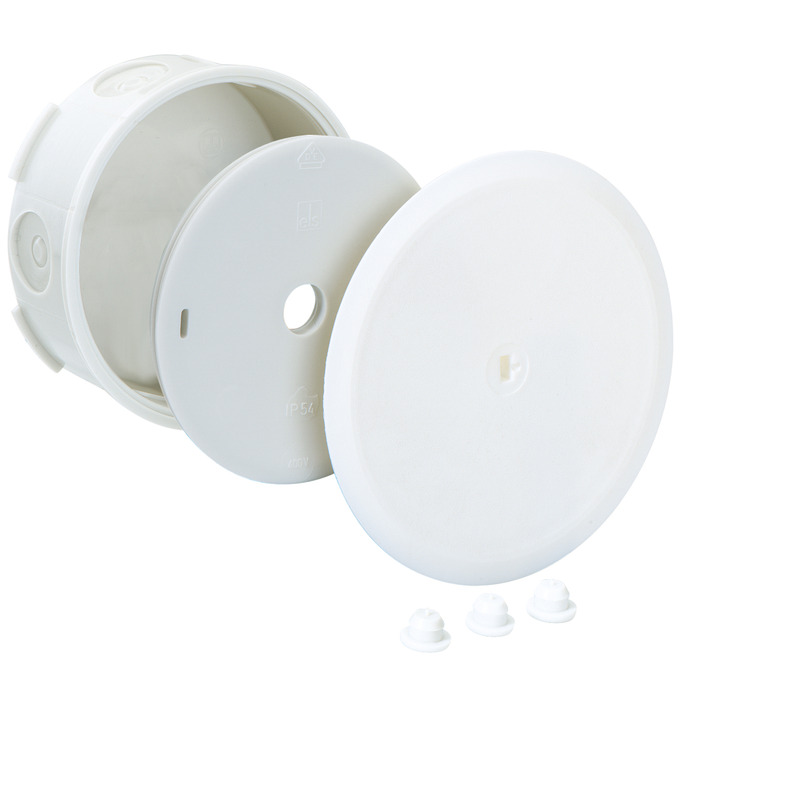

Junction box acc. to DIN EN 60670 (VDE 0606), with self-sealing inlet membranes, with separate flush-fitting lid
Grey, without terminals, for VDE approved single terminals
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP54 |
| Width | 80 mm |
|---|---|
| Length | 80 mm |
| Height | 32 mm |
| Inner height | 28 mm |
| Weight | 0.052 kg |
| Halogen free | yes |
|---|
| Installation location | Indoors |
|---|
| EAN | 4013902020034 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 50 |
| Base unit material | Plastic |
|---|
| EAN / GTIN | 4013902316083 |
|---|---|
| Width | 0.357 m |
| Weight | 2.881 kg |
| Height | 0.247 m |
| Quantity | 50 pieces |
| Depth | 0.26 m |
| EAN / GTIN | 4013902316090 |
|---|---|
| Width | 0.8 m |
| Weight | 173.574 kg |
| Height | 1.87 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902020034 |
|---|---|
| Width | 0.08 m |
| Weight | 0.052 kg |
| Height | 0.032 m |
| Quantity | 1 pieces |
| Depth | 0.08 m |

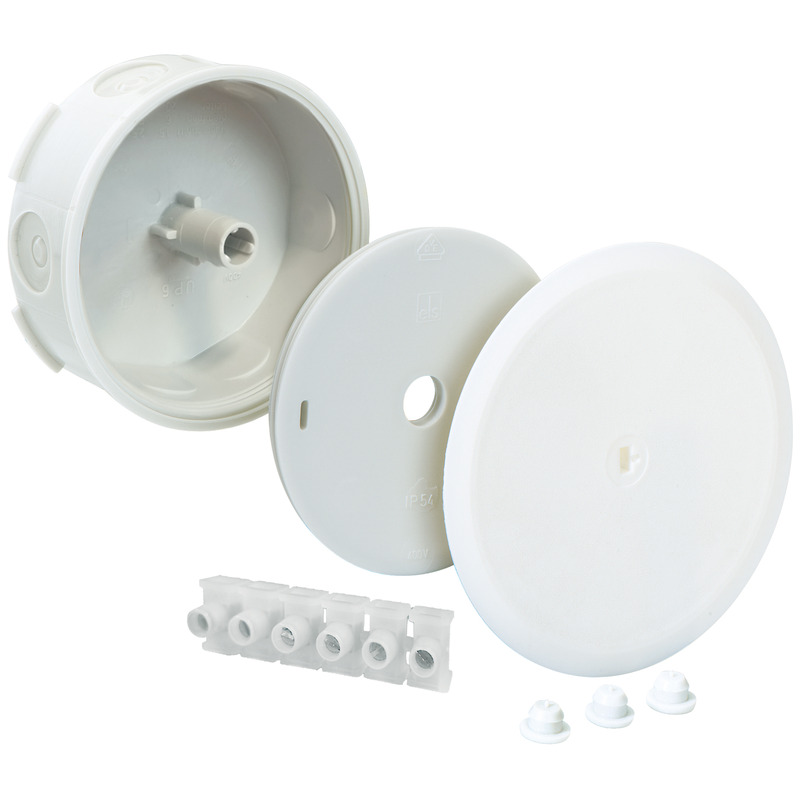

Flush-mounted junction box
UP 6-2,5²
Productnumber 30640601
Grey, with screw terminal 5-pole - 2.5 mm²
Junction box acc. to DIN EN 60670 (VDE 0606), with self-sealing inlet membranes, with separate...
