#80647001 | Dimensions: 152 x 152 x 80 mm

Junction box

Abox SLK-6²

Junction box, protection class IP66, nominal cross-section 6 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion...

Login to see price

Remember product

Description

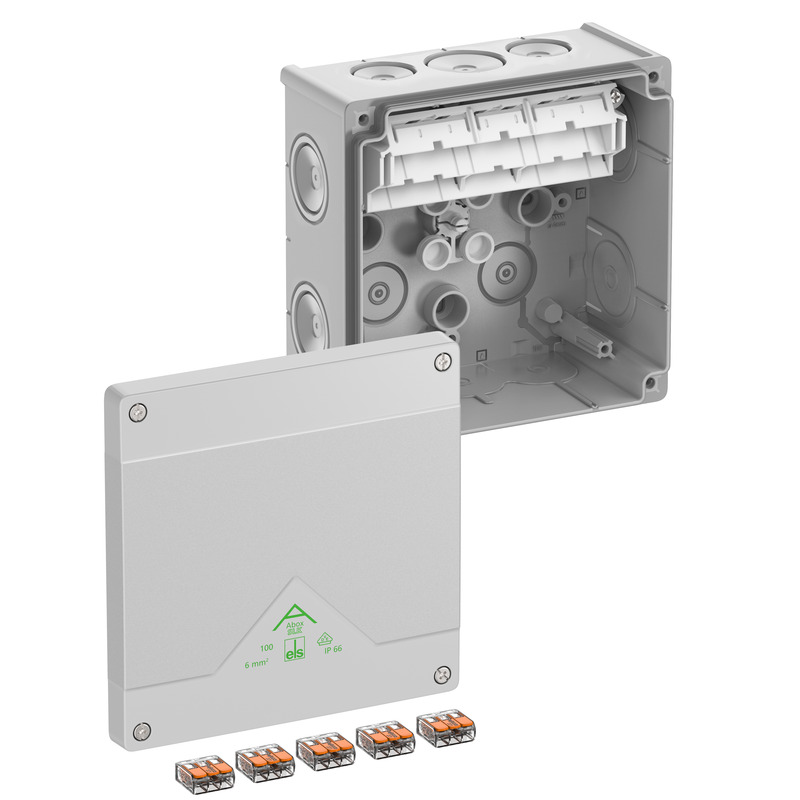

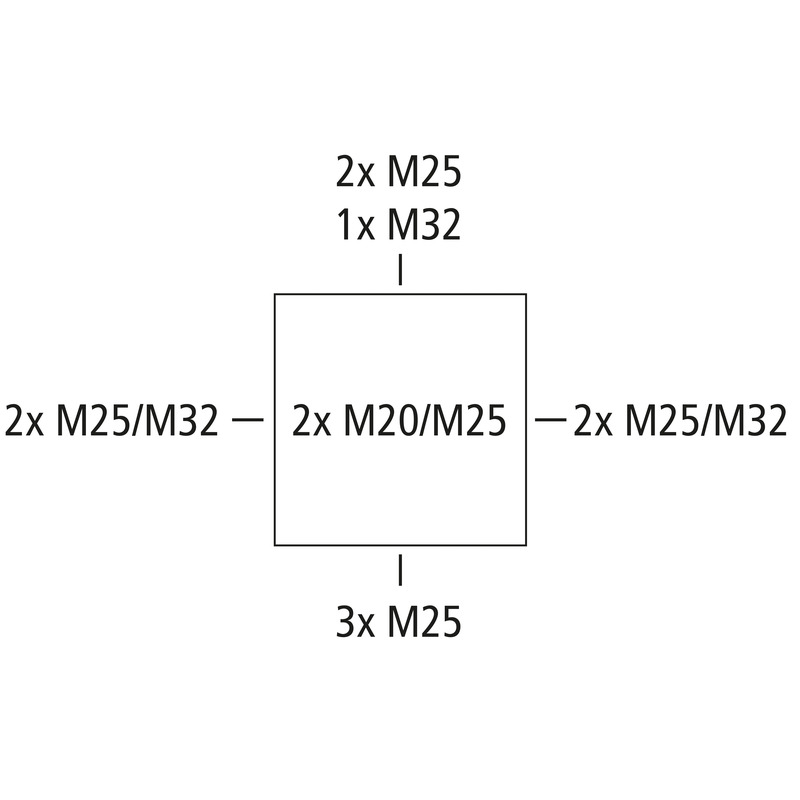

Junction box, protection class IP66, nominal cross-section 6 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8 - 28 mm, (2 rear, 10 side), internal fixing points, with screwless terminals and clamp holders, for standard indoor and protected outdoor installations

grey, I_n=41 A, with 5 raised, screwless 3-wire terminals, type Wago 221-613 - 6 mm², clampable cross-sections per pole: 3 x 0.2 to 6 mm² rigid/flexible Cu

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP66
Rated current	41 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	152 mm
Length	152 mm
Height	80 mm
Inner length	139 mm
Inner width	140 mm
Inner height	64 mm
Weight	0.3325 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	750 °C (EN 60695-2-11)

mechanical properties

for sealing range min	8 mm
for sealing range max	28 mm
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902660759
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Piece

EAN / GTIN	4013902660759
Width	0.152 m
Weight	0.3325 kg
Height	0.08 m
Quantity	1 pieces
Depth	0.152 m

Outer packaging

EAN / GTIN	4013902660766
Width	0.35 m
Weight	7.03 kg
Height	0.425 m
Quantity	20 pieces
Depth	0.305 m

Pallet

EAN / GTIN	4013902660773
Width	0.8 m
Weight	106.36 kg
Height	0.982 m
Quantity	240 pieces
Depth	1.2 m

Downloads

Download Data Sheet

Download Data Sheet (80647001.pdf)

Installation instructions

Assembly instruction DE/EN pdf (3 MB)

Assembly instruction FR/ES pdf (3 MB)

Dimensioned drawing

Dimensional drawing pdf (6 MB)

Dimensional drawing dwg (8 MB)

Dimensional drawing dxf (36 MB)

Certificate

DLG Approval DE pdf (752 KB)

CE Declaration DE/EN/FR pdf (34 KB)

UKCA Declaration EN pdf (167 KB)

DLG Approval EN pdf (727 KB)

VDE Certificate DE/EN pdf (207 KB)

CE Declaration DE/EN/PL pdf (94 KB)

Planningdata

CAD-Data

Product videos

Accessories

Terminal holderAbox 100 KH 221 6²

Terminal holder - Abox 100 KH 221 6²

Terminal holder

Abox 100 KH 221 6²

Productnumber 89600501

for position-fixed and elevated mounting of up to 6 terminals Wago...
