#80412001 | Dimensions: 102 x 102 x 57 mm

Junction box

Abox 040-4²/w

Junction box, protection class IP66, nominal cross-section 4 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes,...

Color variants

Customize

Login to see price

Remember product

Description

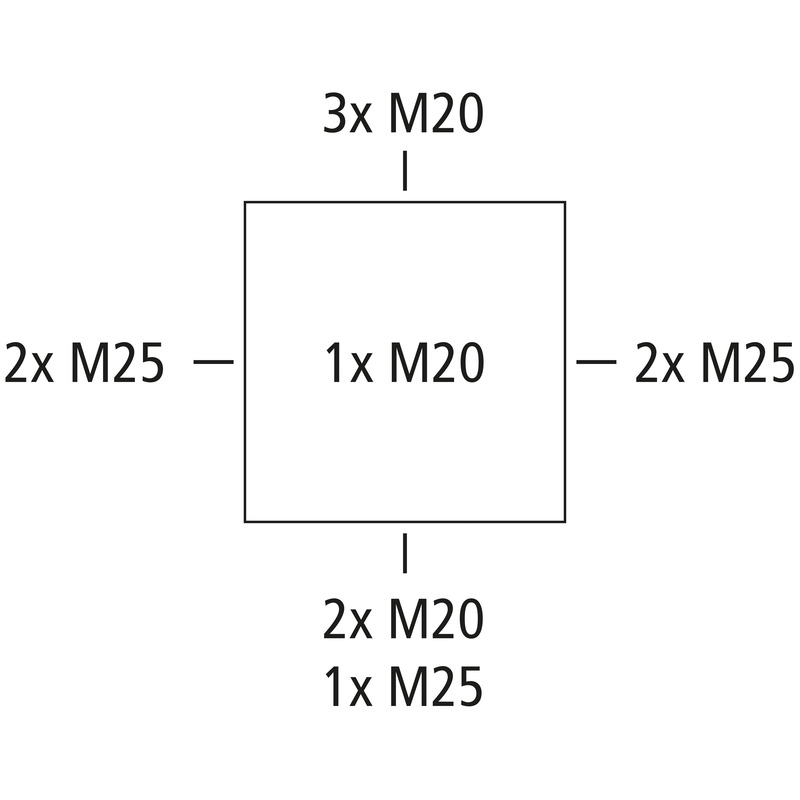

Junction box, protection class IP66, nominal cross-section 4 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25, sealing range 4 - 21 mm, (1 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations

white, U_i=400 V AC, I_n=32 A, with 5 screwless 4-wire terminals, Wago 773-604, max. nominal cross-section in accordance with DIN EN 60998: 4 mm², clampable cross-sections per pole: 4 x 1.5 - 4.0 mm² rigid Cu/Al (follow installation instructions)

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Rated insulation voltage DC	400 V
Min. conductor cross section	1,5 mm²
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP66
Rated current	32 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	white
Cover colour	white

Dimensions

Width	102 mm
Length	102 mm
Height	57 mm
Inner length	90 mm
Inner width	90 mm
Inner height	49 mm
Weight	0.142 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	750 °C (EN 60695-2-11)

mechanical properties

for sealing range min	4 mm
for sealing range max	21 mm
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902661534
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Piece

EAN / GTIN	4013902661534
Width	0.102 m
Weight	0.142 kg
Height	0.057 m
Quantity	1 pieces
Depth	0.102 m

Outer packaging

EAN / GTIN	4013902661541
Width	0.41 m
Weight	8.687 kg
Height	0.295 m
Quantity	60 pieces
Depth	0.305 m

Pallet

EAN / GTIN	4013902661558
Width	0.8 m
Weight	178.366 kg
Height	1.053 m
Quantity	1080 pieces
Depth	1.2 m
