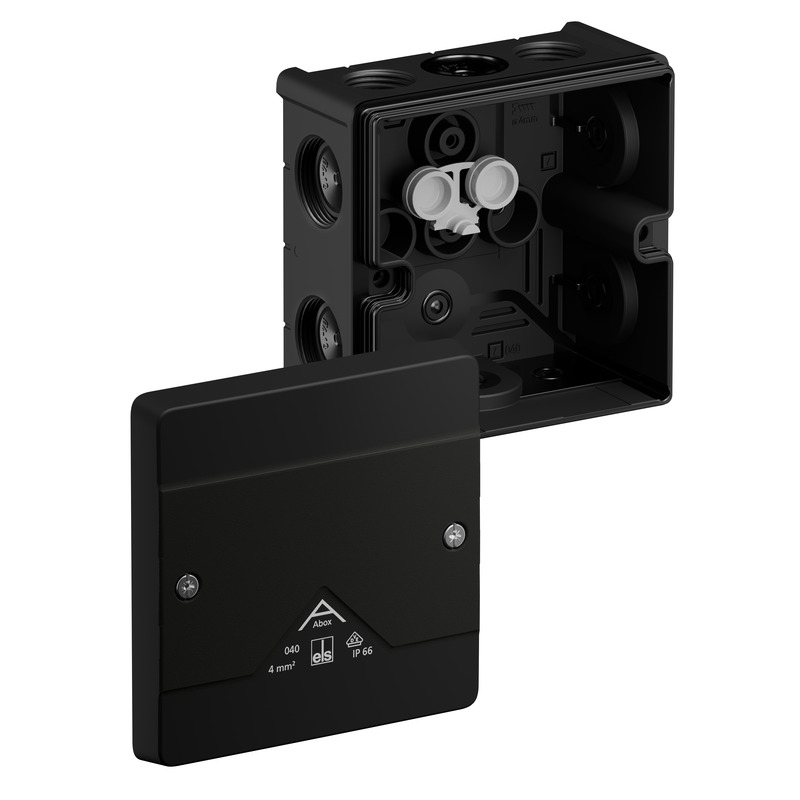

#80408801 | Dimensions: 102 x 102 x 57 mm
Junction box

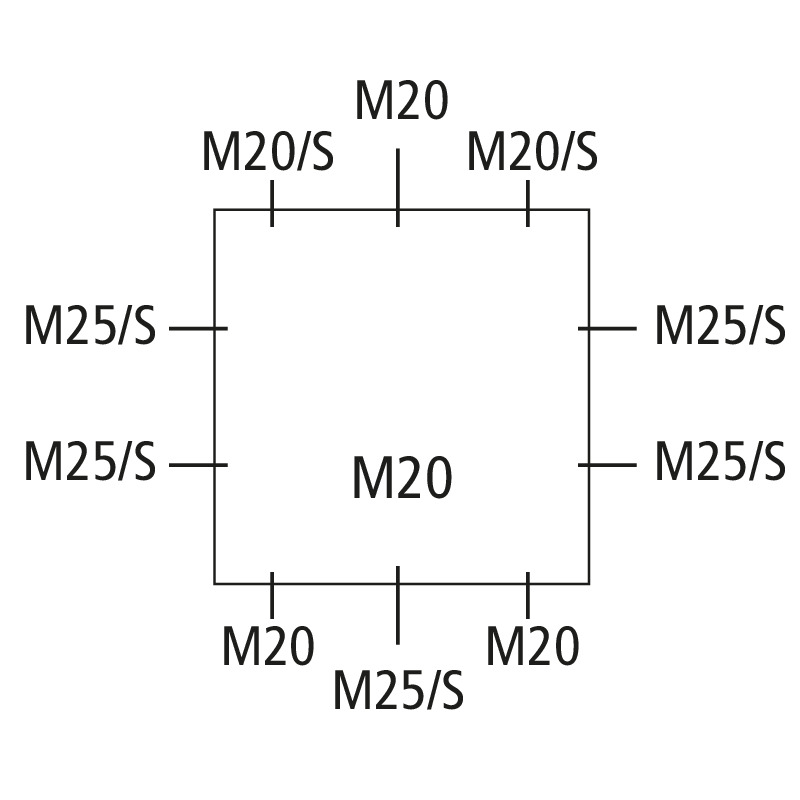

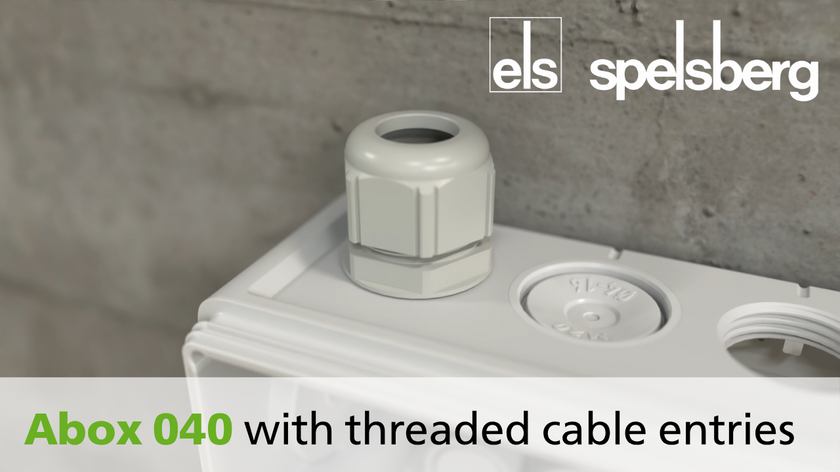

Junction box, protection class IP66, nominal cross-section 4 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, with threaded cable entries for direct use of cable glands, M20/M25, sealing range 3 - 16 mm, (1 rear, 10 side), internal fixing points
black, Ui=1000 V AC
| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP66 |
| Terminal type | none |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 102 mm |
|---|---|
| Length | 102 mm |
| Height | 57 mm |
| Inner length | 83 mm |
| Inner width | 82 mm |
| Inner height | 41 mm |
| Weight | 0.131 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 750 °C (EN 60695-2-11) |
| max. amount of terminals at 1,5² | 10 |
|---|---|
| max. amount of terminals at 2,5² | 8 |
| max. amount of terminals at 4² | 6 |
| max. amount of wires at 1,5² | 30 |
|---|---|
| max. amount of wires at 2,5² | 24 |
| max. amount of wires at 4² | 20 |
| for sealing range min | 3 mm |
|---|---|
| for sealing range max | 16 mm |
| Impact strength | IK07 |
| Sealable | yes |
| Cover screw torque | 1.2 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 55 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902708048 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Entry material | Thermoplastic elastomer |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902708048 |
|---|---|
| Width | 0.102 m |
| Weight | 0.131 kg |
| Height | 0.057 m |
| Quantity | 1 pieces |
| Depth | 0.102 m |
| EAN / GTIN | 4013902708055 |
|---|---|
| Width | 0.41 m |
| Weight | 8.2154 kg |
| Height | 0.295 m |
| Quantity | 60 pieces |
| Depth | 0.305 m |
| EAN / GTIN | 4013902708062 |
|---|---|
| Width | 0.8 m |
| Weight | 169.8772 kg |
| Height | 1.053 m |
| Quantity | 1080 pieces |
| Depth | 1.2 m |
