#41602001 | Dimensions: 182 x 182 x 90 mm

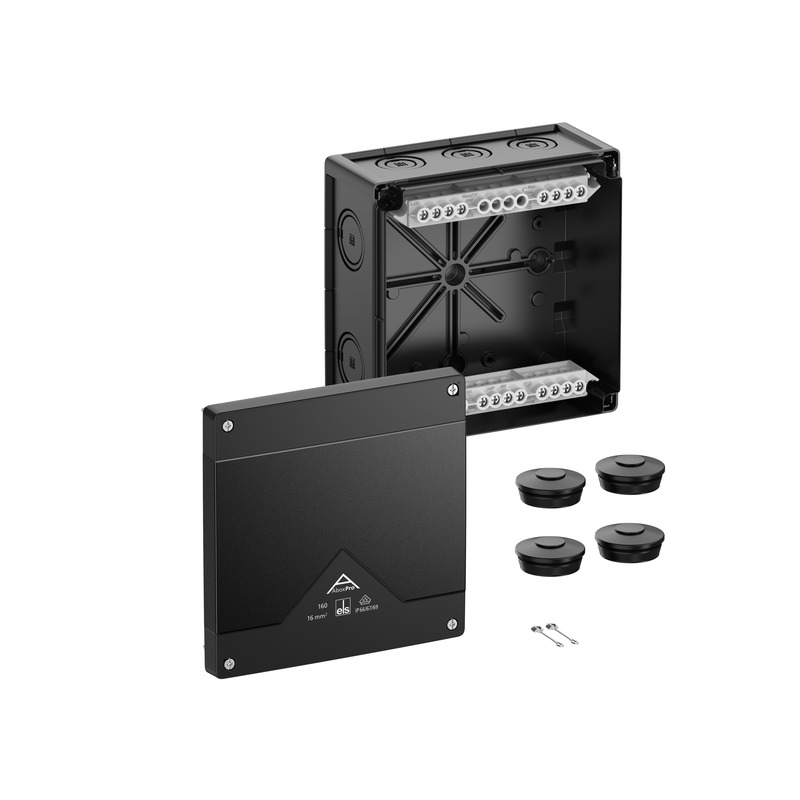

Junction box

Abox Pro 160-16²/sw

Junction box, protection class IP66/IP67/IP69, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore...

Color variants

Login to see price

Remember product

Description

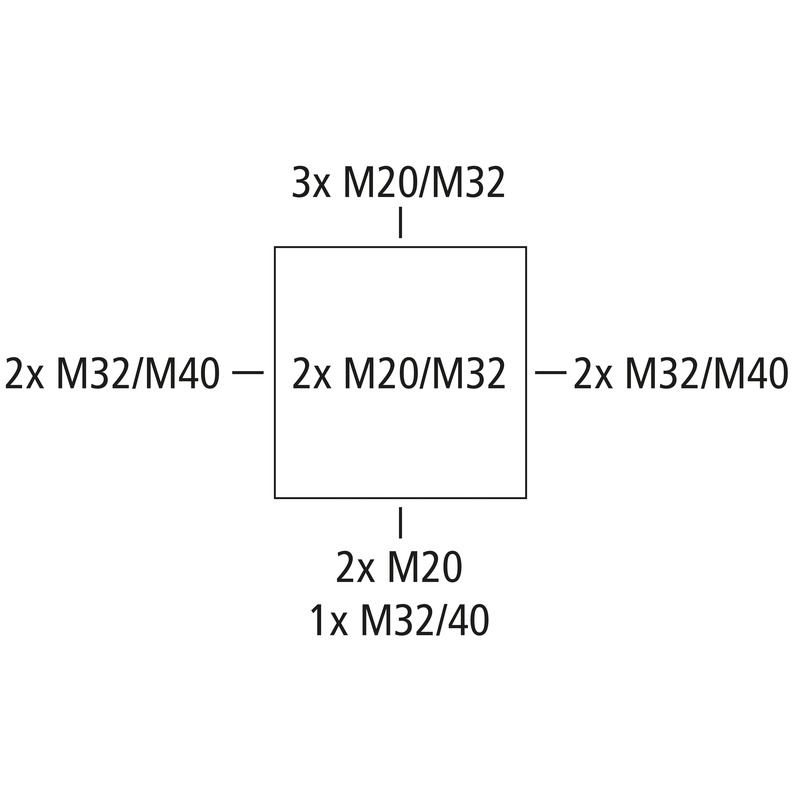

Junction box, protection class IP66/IP67/IP69, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32/M40, (2 rear, 10 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=690 V AC, I_n=76 A, with raised screw terminal block, 5-pole- 16 mm², clampable cross-sections per pole: 12 x 4 mm², 8 x 6 mm², 4 x 10 mm², 4 x 16 mm² rigid Cu/flexible with wire-end ferrule

Accessories supplied:
4 double membrane seals IP66 M40 sealing range 17 - 28 mm, cover retainer

Technical Data

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	4 mm²
Max. conductor cross section	16 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	76 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	182 mm
Length	182 mm
Height	90 mm
Inner length	167 mm
Inner width	167 mm
Inner height	69 mm
Weight	0.8407 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902663781
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Logistic data

Outer packaging

EAN / GTIN	4013902663798
Width	0.471 m
Weight	8.857 kg
Height	0.197 m
Quantity	10 pieces
Depth	0.371 m

Pallet

EAN / GTIN	4013902663804
Width	0.8 m
Weight	234.568 kg
Height	1.135 m
Quantity	240 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902663781
Width	0.182 m
Weight	0.8407 kg
Height	0.09 m
Quantity	1 pieces
Depth	0.182 m

Downloads

Planningdata

CAD-Data

Product videos

Accessories

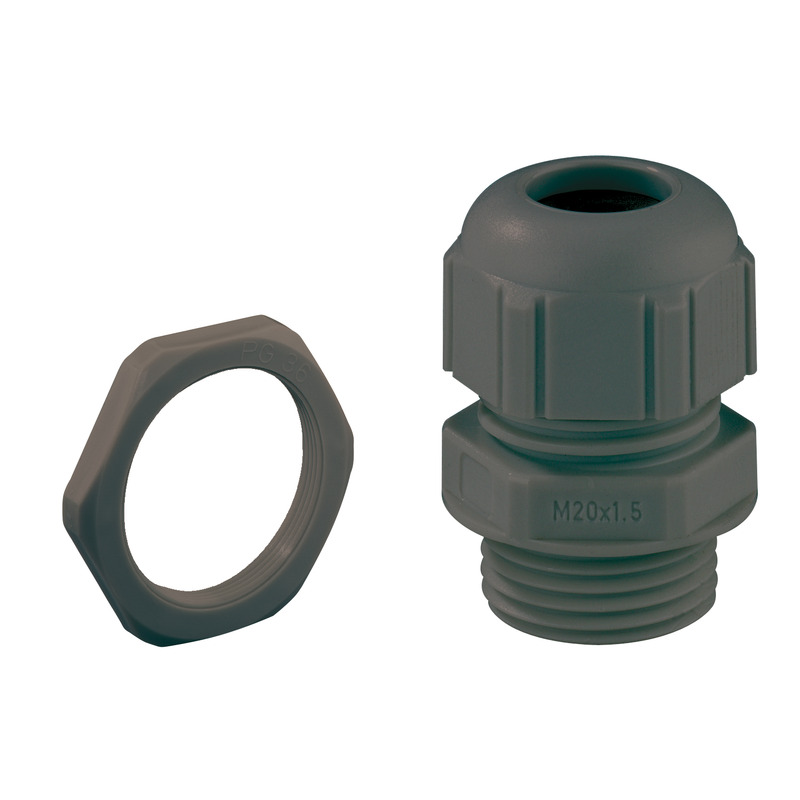

Cable glandKVR M20-MGM/sw

Cable gland

KVR M20-MGM/sw

Productnumber 22702001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...

Cable glandKVR M20-GDB/MGM/sw

Cable gland

KVR M20-GDB/MGM/sw

Productnumber 22702101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...

Cable glandKVR M32-MGM/sw

Cable gland

KVR M32-MGM/sw

Productnumber 22703201

Sealing range 11 - 21 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...

Cable glandKVR M40-MGM/sw

Cable gland

KVR M40-MGM/sw

Productnumber 22704001

Sealing range 16 - 28 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...

Double-membrane sealsDMS M20/sw

Double-membrane seals

DMS M20/sw

Productnumber 26002001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

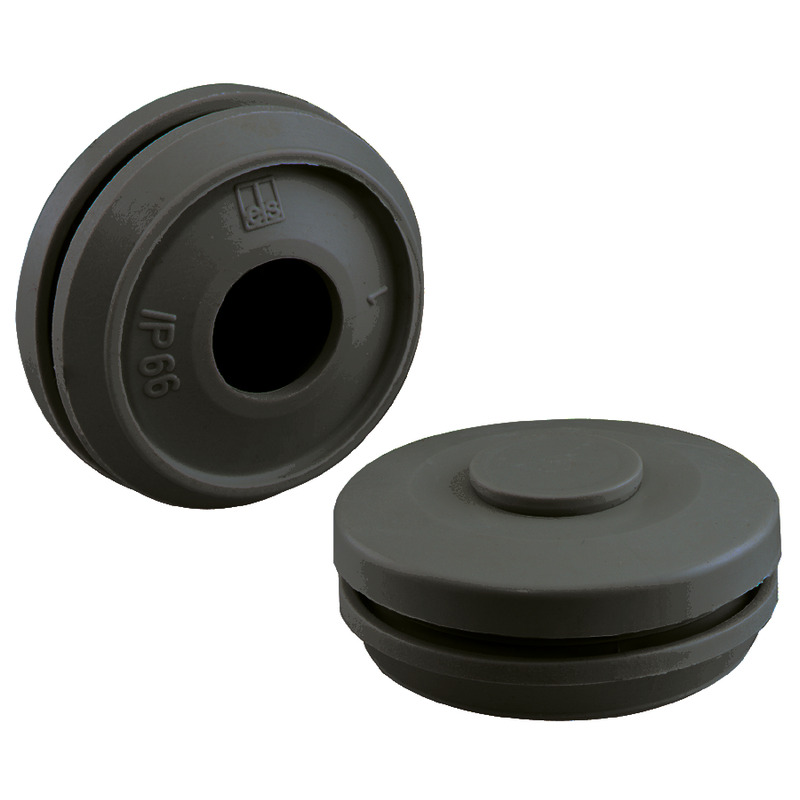

Double-membrane sealsDMS M32/sw

Double-membrane seals

DMS M32/sw

Productnumber 26003201

Sealing range 13 - 21 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Double-membrane sealsDMS M40/sw

Double-membrane seals

DMS M40/sw

Productnumber 26004001

Sealing range 17 - 28 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

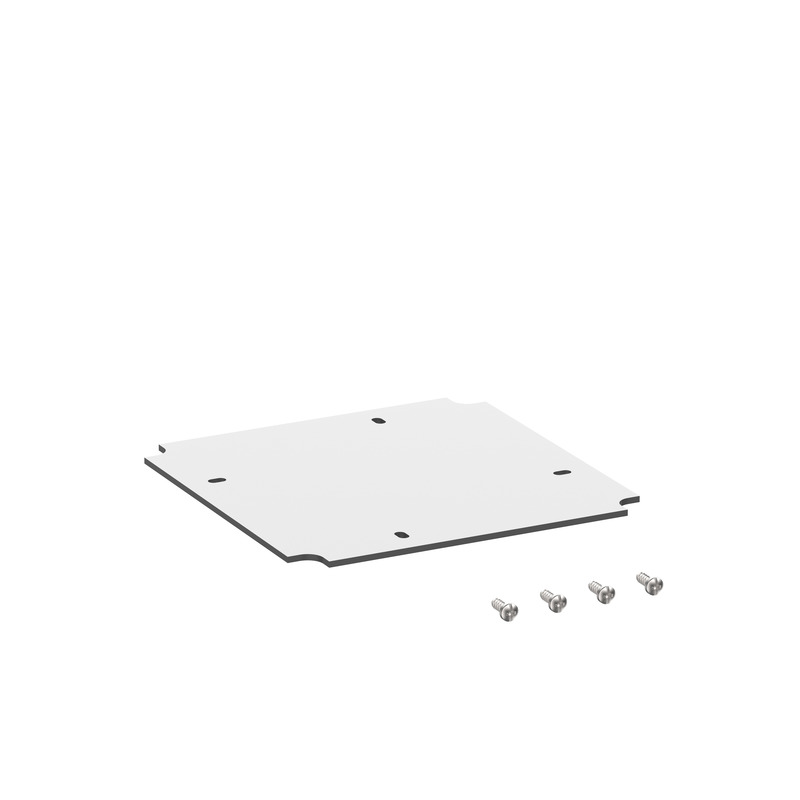

Mounting plateAbox MPI 160

Mounting plate

Abox MPI 160

Productnumber 89511601

for Abox / Abox Pro 160

Mounting plate in melamine lined insulating material, 2.5 mm thickness, grey incl. fixing screws....

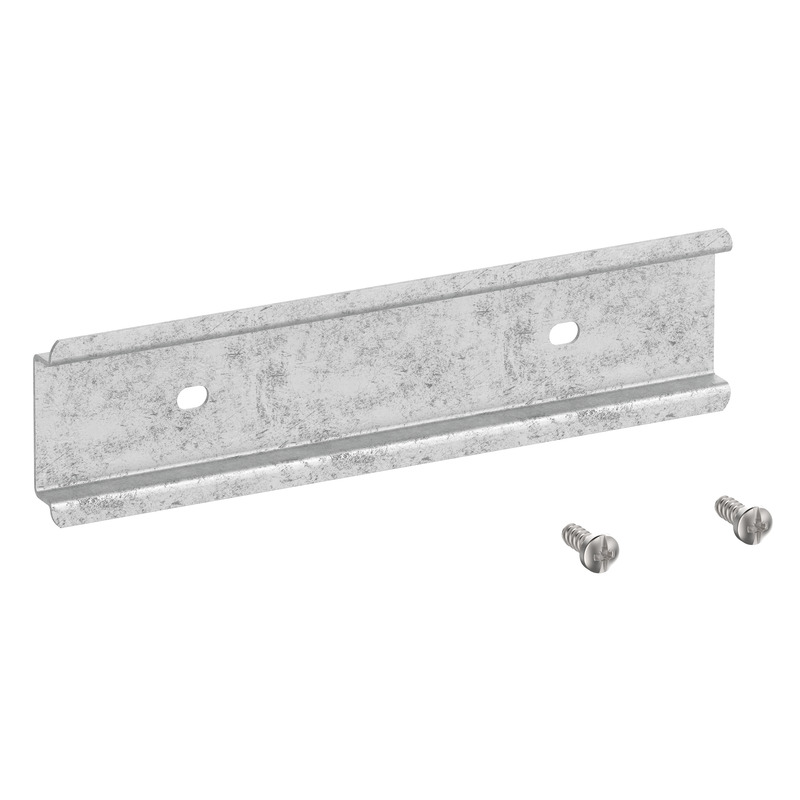

Standard railAbox 160/250 NS35

Standard rail

Abox 160/250 NS35

Productnumber 89531601

for Abox / Abox Pro 160

Standard rail in accordance with DIN EN 60715, 35 x 7.5 mm, incl. fixing screws. For mounting in...

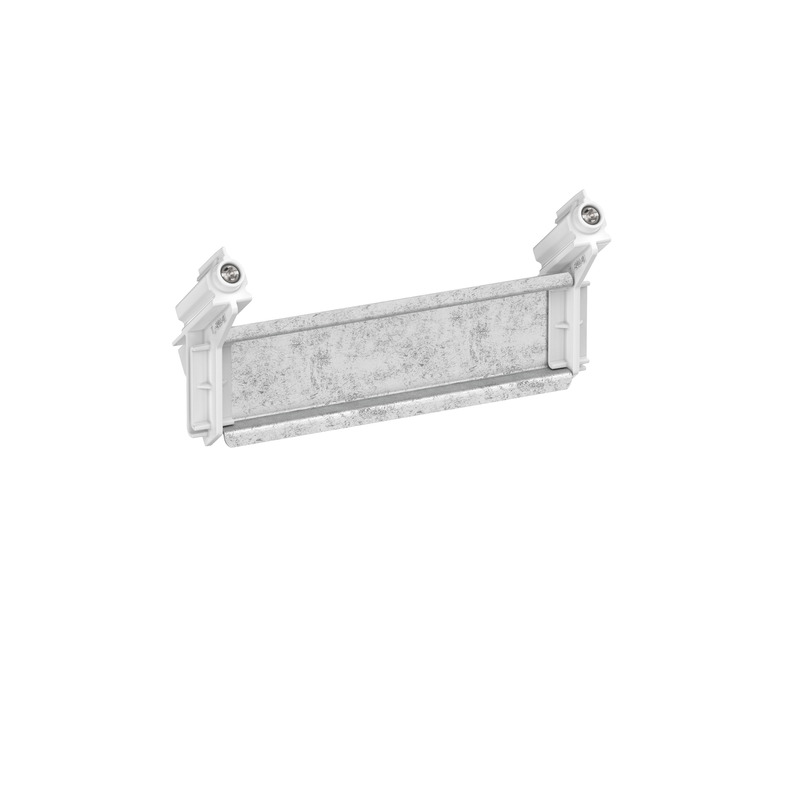

Terminal holderAbox 100 KH 2006 6²

Terminal holder

Abox 100 KH 2006 6²

Productnumber 89600601

terminal holder with standard rail NS35 for mounting of terminal...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

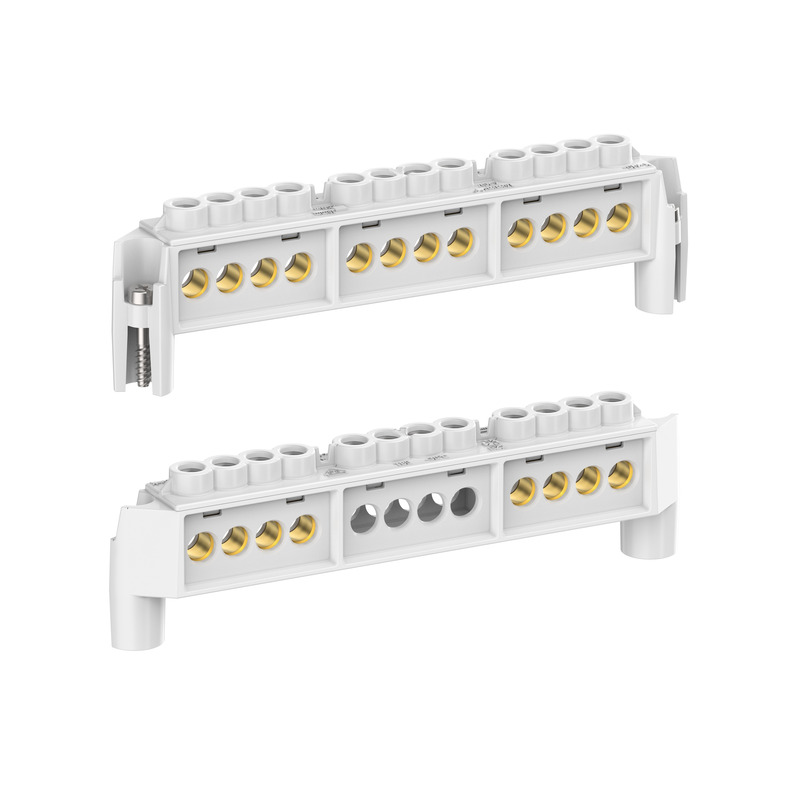

Terminal blockAbox 160 KLS-16²

Terminal block

Abox 160 KLS-16²

Productnumber 89641601

raised screw terminal block for Abox/Abox Pro 160, 5-pole - 16 mm², I_n...

Connecting terminal in accordance with DIN EN 60998 (VDE 0613), U_i=690V. For assembly in junction...

Mast/pipe fixing setMABF 150-1

Mast/pipe fixing set

MABF 150-1

Productnumber 89603001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...

Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...

Cable tray fasteningKTB 1-100 new

Cable tray fastening

KTB 1-100

Productnumber 89602901

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

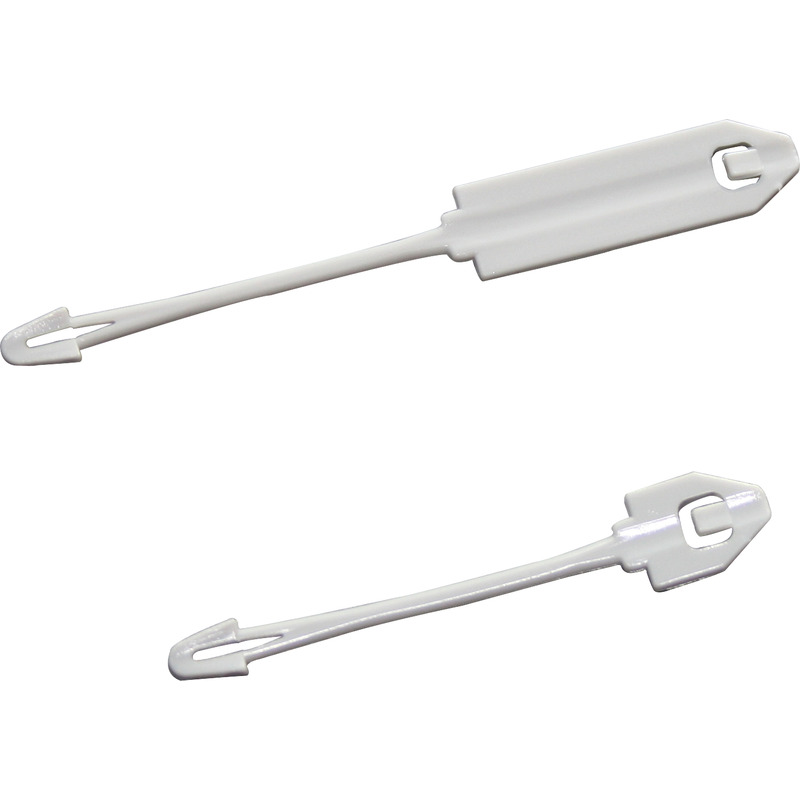

Cover retainerTG DVS-42

Cover retainer

TG DVS-42

Productnumber 18200601

for TG 88, TG 1208, TG 1212, TG 1608, Abox Pro 025 - 350

spare cover retainer, Set = 10 pcs.

Similar products

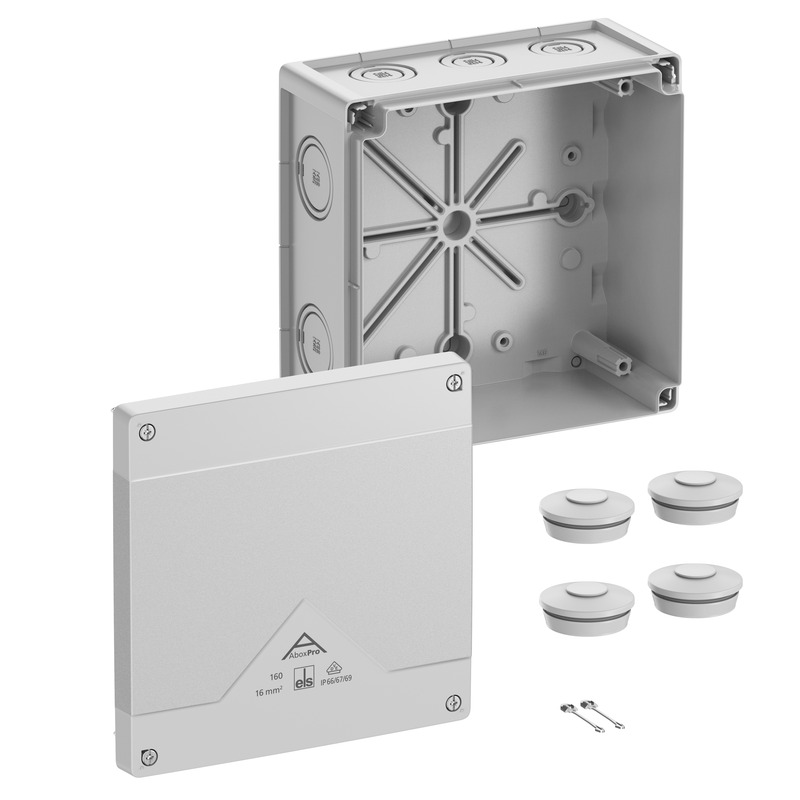

Junction boxAbox Pro 160-L

Junction box

Abox Pro 160-L

Productnumber 41640001

grey, U_i=1000 V AC, without terminals

Junction box, protection class IP66/IP67/IP69, nominal cross-section 16 mm², certified by VDE (DIN...

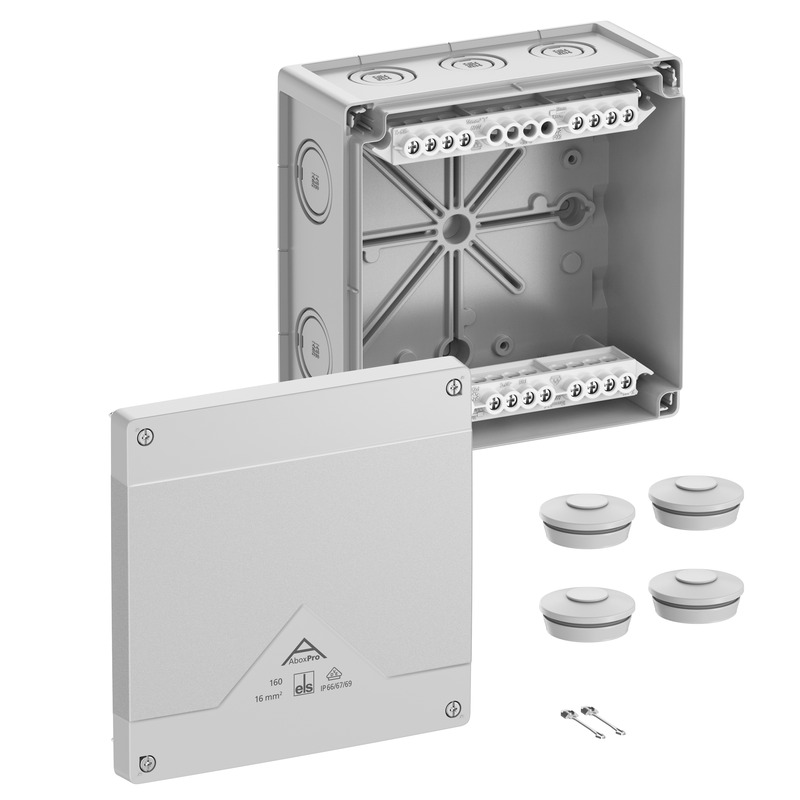

Junction boxAbox Pro 160-16²

Junction box

Abox Pro 160-16²

Productnumber 41642001

grey, U_i=690 V AC, I_n=76 A, with raised screw terminal block, 5-pole-...

Junction box, protection class IP66/IP67/IP69, nominal cross-section 16 mm², certified by VDE (DIN...

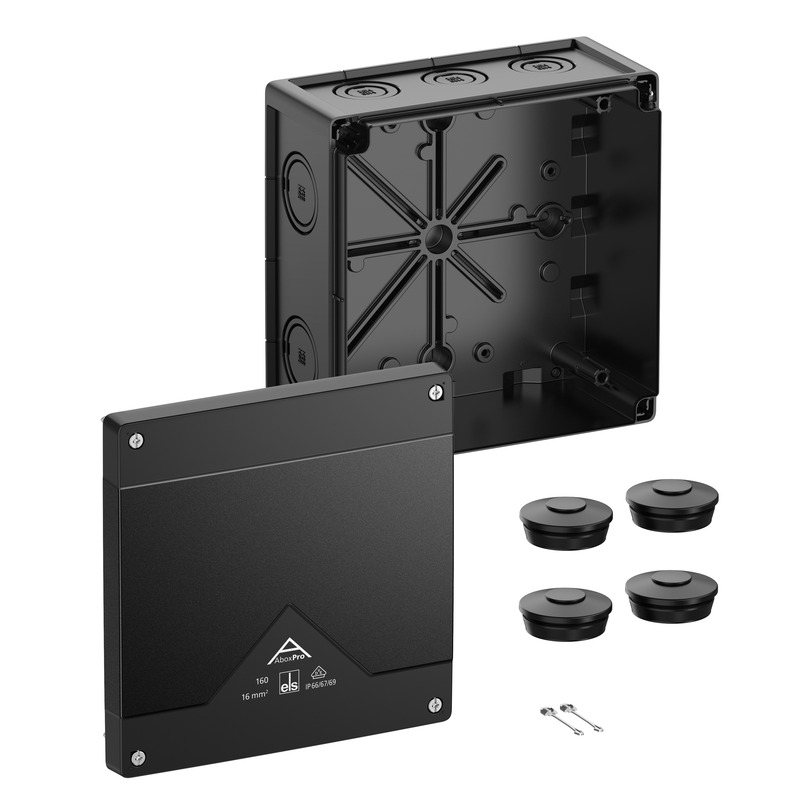

Junction boxAbox Pro 160-L/sw
