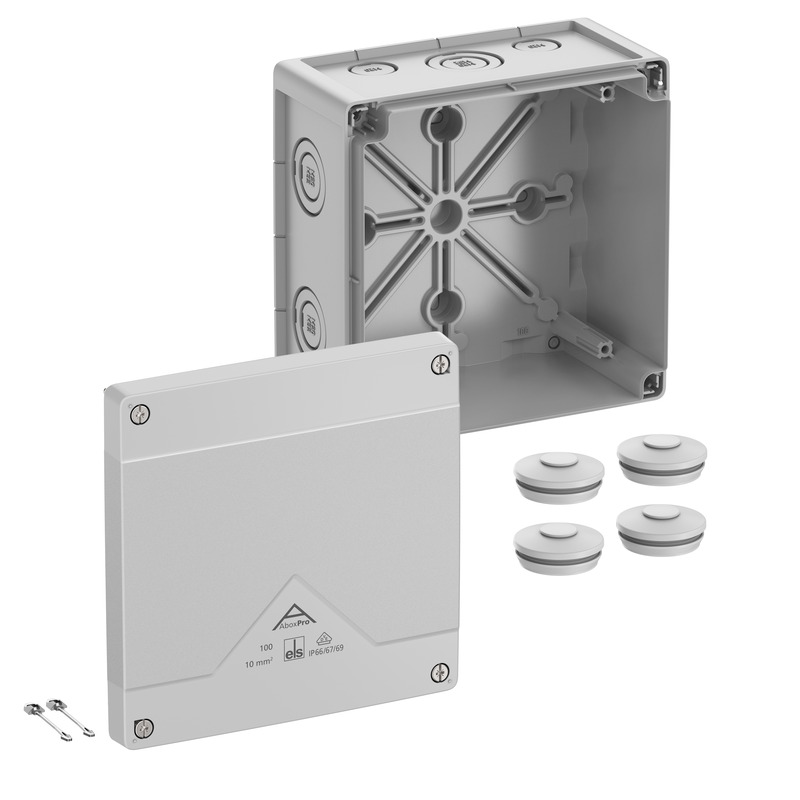

#41040001 | Dimensions: 152 x 152 x 85 mm
Junction box

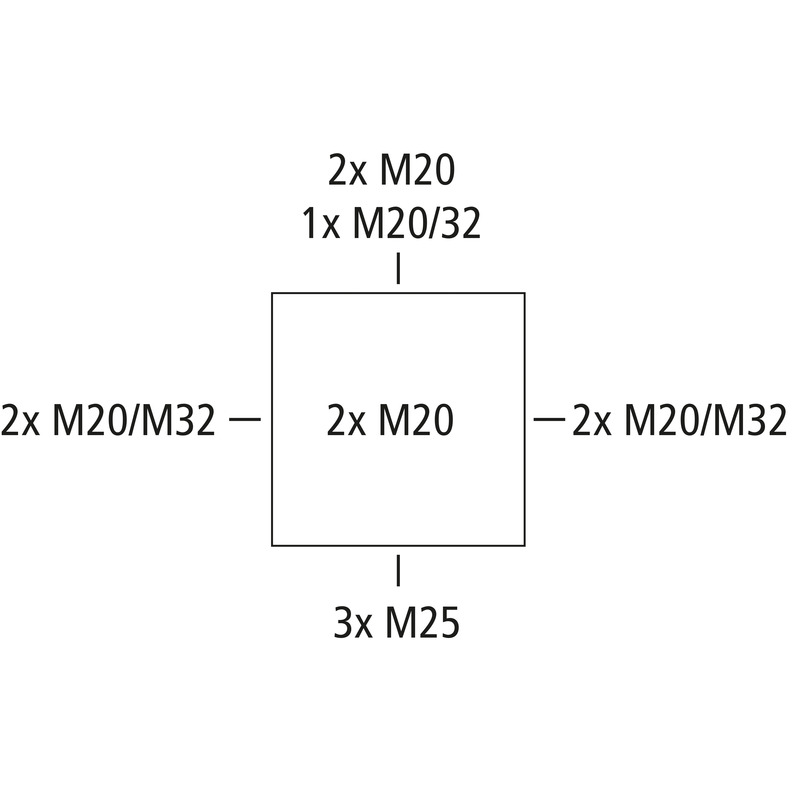

Junction box, protection class IP66/IP67/IP69, nominal cross-section 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas
grey, Ui=1000 V AC, without terminals
Accessories supplied:
4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer
| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Max. conductor cross section | 10 mm² |
| Protection class | II |
| Type of protection | IP66/IP67/IP69 |
| Terminal type | none |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 152 mm |
|---|---|
| Length | 152 mm |
| Height | 85 mm |
| Inner length | 137 mm |
| Inner width | 137 mm |
| Inner height | 65 mm |
| Weight | 0.4215 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| max. amount of terminals at 1,5² | 15 |
|---|---|
| max. amount of terminals at 2,5² | 12 |
| max. amount of terminals at 4² | 10 |
| max. amount of terminals at 6² | 8 |
| max. amount of terminals at 10² | 5 |
| max. amount of wires at 1,5² | 45 |
|---|---|
| max. amount of wires at 2,5² | 36 |
| max. amount of wires at 4² | 30 |
| max. amount of wires at 10² | 24 |
| max. amount of wires at 6² | 15 |
| Impact strength | IK09 |
|---|---|
| Sealable | yes |
| Cover screw torque | 1.5 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | unprotected outdoor areas |
| EAN | 4013902663910 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate, glass-fibre reinforced |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| EAN / GTIN | 4013902663927 |
|---|---|
| Width | 0.465 m |
| Weight | 4.77 kg |
| Height | 0.175 m |
| Quantity | 10 pieces |
| Depth | 0.32 m |
| EAN / GTIN | 4013902663934 |
|---|---|
| Width | 0.8 m |
| Weight | 165.1 kg |
| Height | 1.11 m |
| Quantity | 300 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902663910 |
|---|---|
| Width | 0.152 m |
| Weight | 0.4215 kg |
| Height | 0.085 m |
| Quantity | 1 pieces |
| Depth | 0.152 m |
