#40444001 | Dimensions: 127 x 127 x 75 mm

Junction box

Abox Pro SL-4²

Junction box, protection class IP66/IP67/IP69, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and...

Login to see price

Remember product

Description

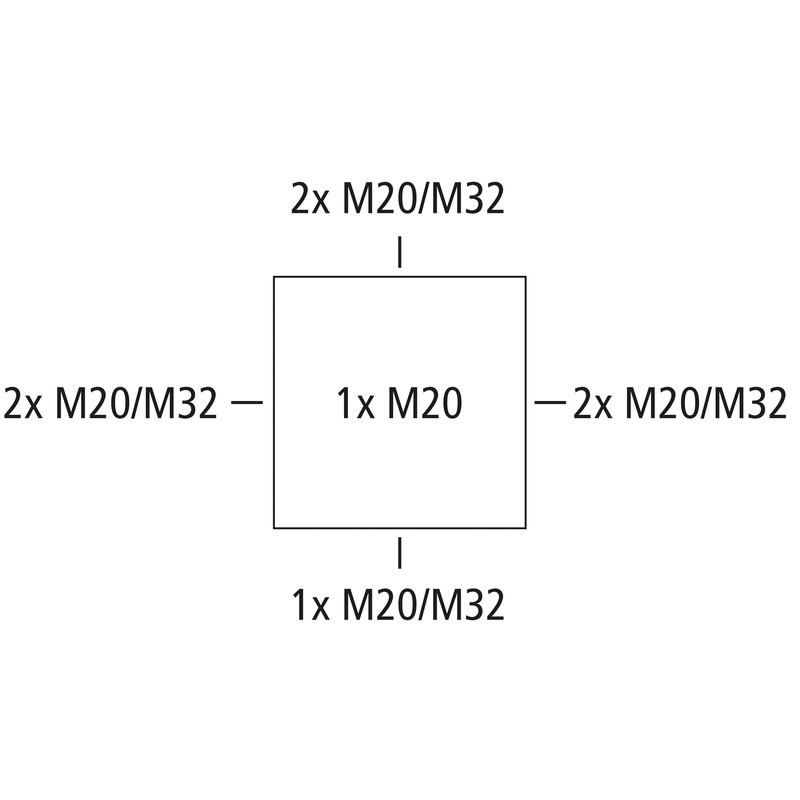

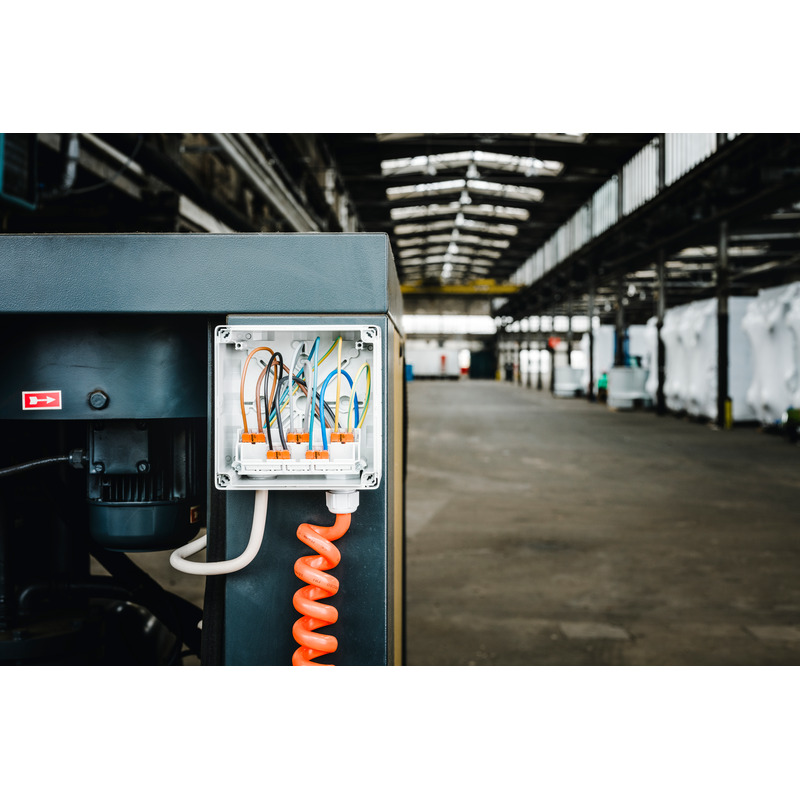

Junction box, protection class IP66/IP67/IP69, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32, (1 rear, 7 side), internal fixing points, with screwless terminals and clamp holder, for installation in industrial environments and unprotected outdoor areas

grey, I_n=32 A, with 5 raised screwless 3-wire terminal blocks, Wago 221-413, max. nominal cross-section in accordance with DIN EN 60998: 4 mm², clampable cross-sections per pole: 3 x 0.2 to 4 mm² rigid Cu and 3 x 0.14 to 4 mm² flexible Cu

Accessories supplied:

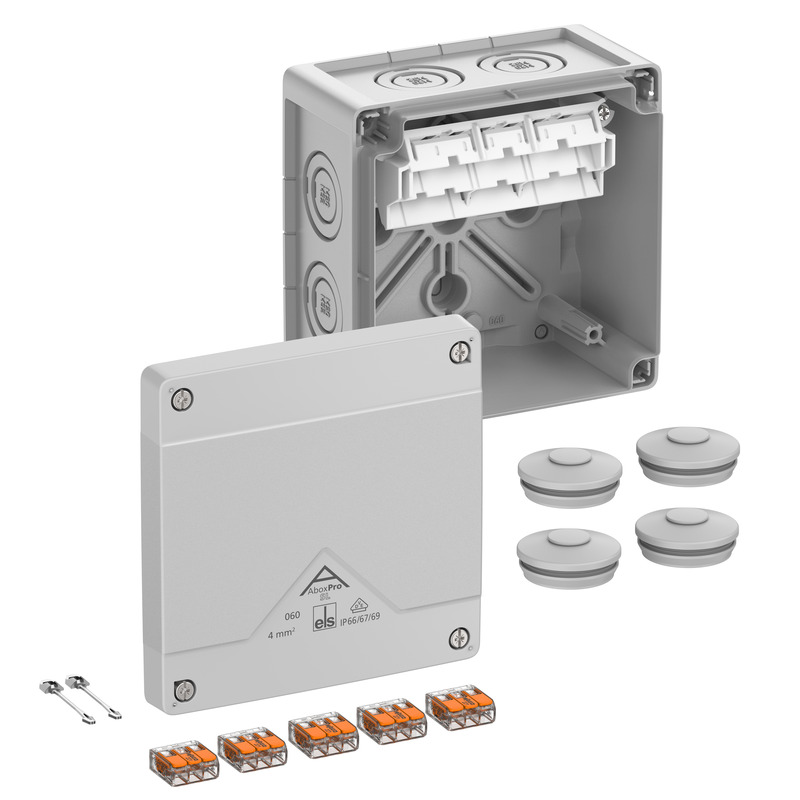

4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,2 mm²
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	32 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	127 mm
Length	127 mm
Height	75 mm
Inner length	113 mm
Inner width	113 mm
Inner height	55 mm
Weight	0.349 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902664665
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Logistic data

Outer packaging

EAN / GTIN	4013902664672
Width	0.507 m
Weight	7.315 kg
Height	0.277 m
Quantity	20 pieces
Depth	0.22 m

Pallet

EAN / GTIN	4013902664689
Width	0.8 m
Weight	175.615 kg
Height	0.981 m
Quantity	420 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902664665
Width	0.127 m
Weight	0.349 kg
Height	0.075 m
Quantity	1 pieces
Depth	0.127 m

Downloads

Download Data Sheet

Download Data Sheet (40444001.pdf)

Installation instructions

Assembly instruction FR/ES pdf (3 MB)

Dimensioned drawing

Dimensional drawing dxf (26 MB)

Dimensional drawing dwg (5 MB)

Dimensional drawing pdf (5 MB)

Certificate

CE Declaration DE/EN/FR pdf (34 KB)

CE Declaration DE/EN/PL pdf (94 KB)

DLG Approval EN pdf (727 KB)

UKCA Declaration EN pdf (166 KB)

DLG Approval DE pdf (752 KB)

VDE Certificate DE/EN pdf (613 KB)

DNV Certificate EN pdf (87 KB)

Planningdata

CAD-Data

Product videos

Accessories

Cable glandKVR M20-GDB/MGM

Cable gland - KVR M20-GDB/MGM

Cable gland

KVR M20-GDB/MGM

Productnumber 22742101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Cable glandKVR M20-MGM

Cable gland - KVR M20-MGM

Cable gland

KVR M20-MGM

Productnumber 22742001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Cable glandKVR M32-MGM

Cable gland - KVR M32-MGM

Cable gland

KVR M32-MGM

Productnumber 22743201

Sealing range 11 - 21 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Double-membrane sealsDMS M20

Double-membrane seals - DMS M20

Double-membrane seals

DMS M20

Productnumber 26042001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Double-membrane sealsDMS M32

Double-membrane seals - DMS M32

Double-membrane seals

DMS M32

Productnumber 26043201

Sealing range 13 - 21 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Cable tray fasteningKTB 1-100 new

Cable tray fastening - KTB 1-100

Cable tray fastening

KTB 1-100

Productnumber 89602901
