#40247001 | Dimensions: 92 x 92 x 60 mm

Junction box

Abox Pro SLK-2,5²

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and...

Color variants

Login to see price

Remember product

Description

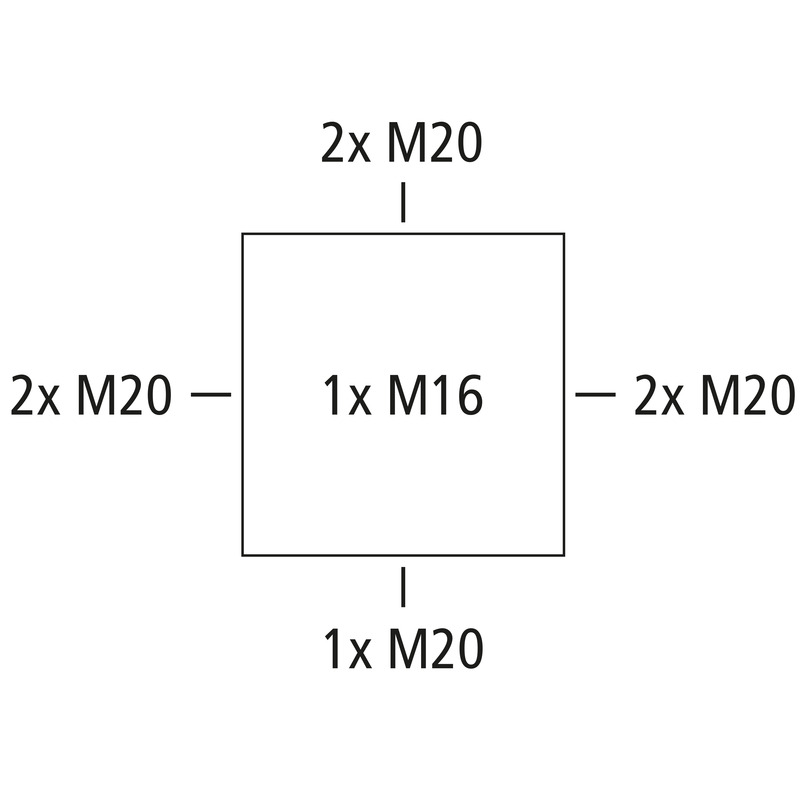

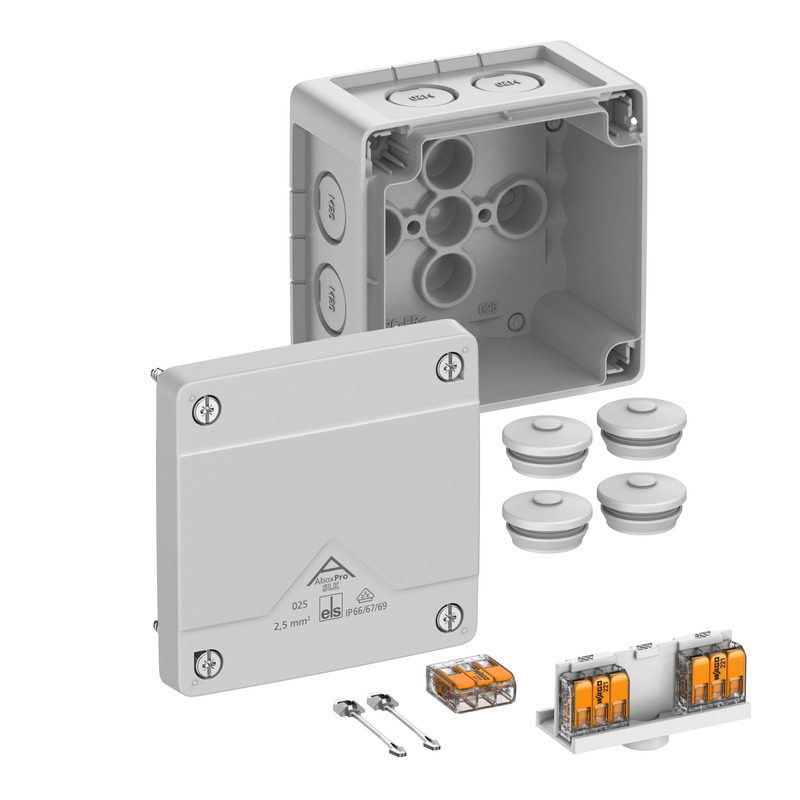

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), internal fixing points, with screwless terminals and clamp holder, for installation in industrial environments and unprotected outdoor areas

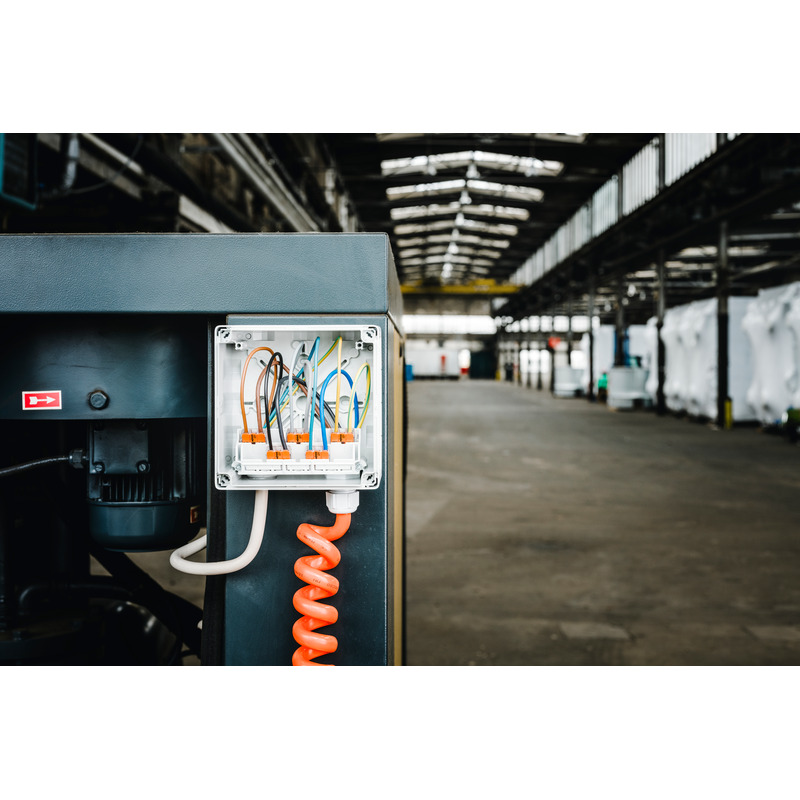

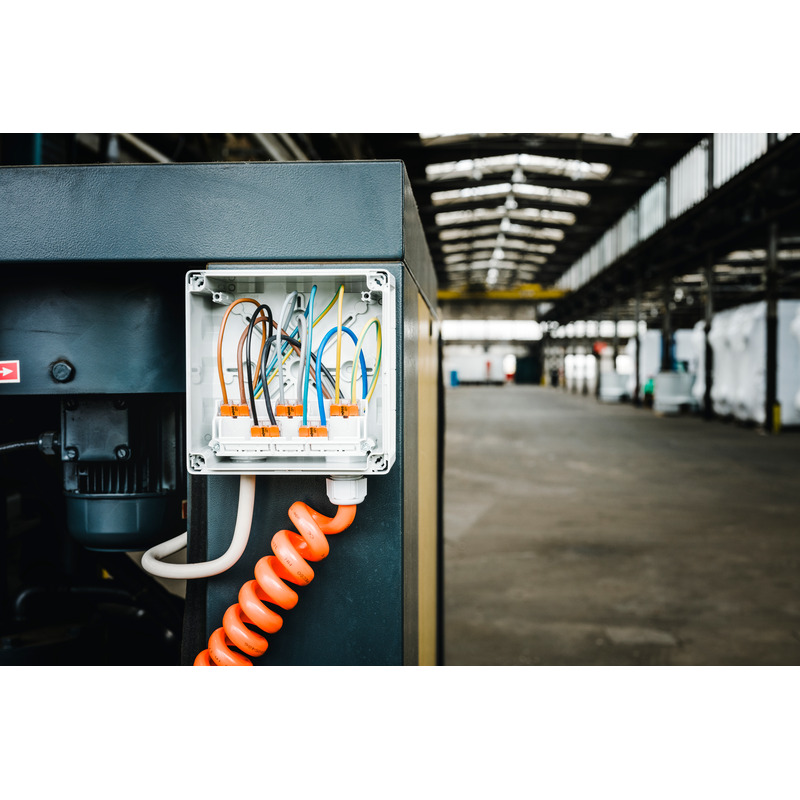

grey, I_n=24 A, with 3 floor-fixed, screwless 3-wire terminals, Wago 221-413 - 2.5 mm², clampable cross-sections per pole: 3 x 0.2 to 2.5 mm² rigid Cu and 3 x 0.14 to 2.5 mm² flexible Cu

Accessories supplied:
4 double membrane seals IP66 M20 sealing range 7 - 13 mm, cover retainer

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,2 mm²
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	24 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	92 mm
Length	92 mm
Height	60 mm
Inner length	78 mm
Inner width	78 mm
Inner height	40 mm
Weight	0.1834 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm

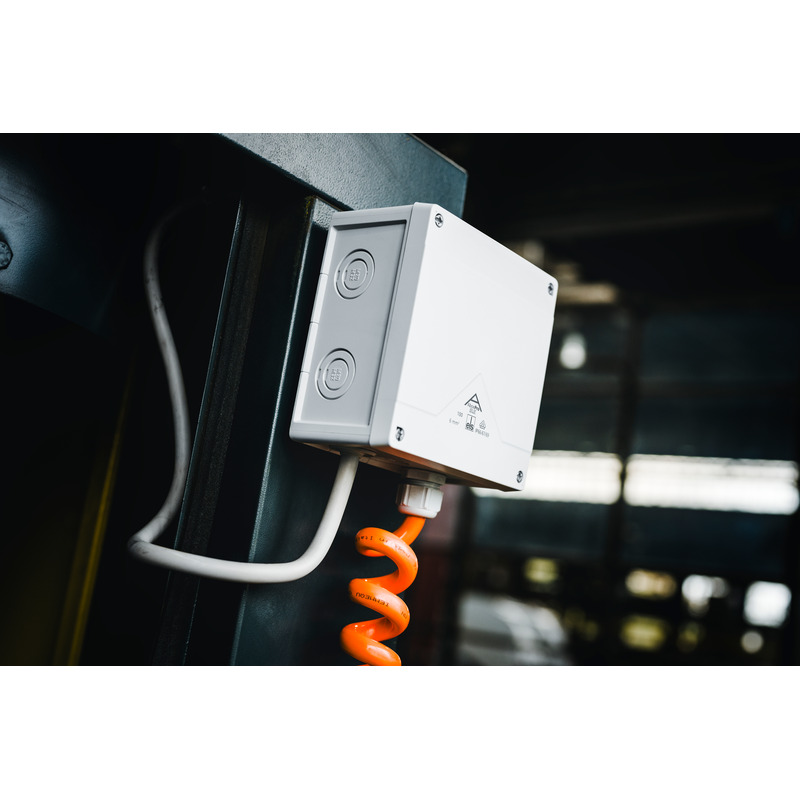

Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

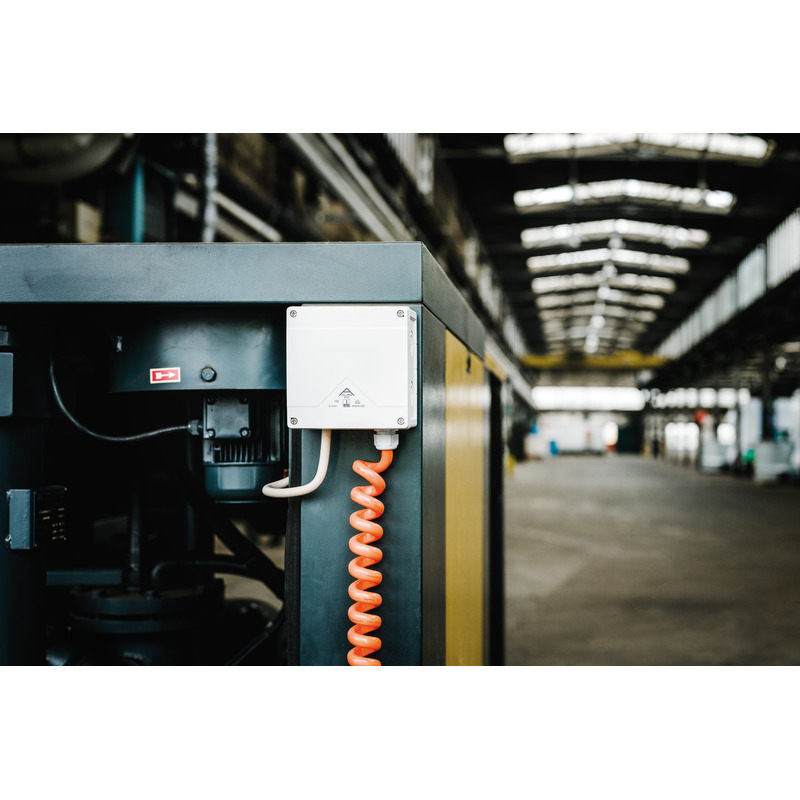

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902662524
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

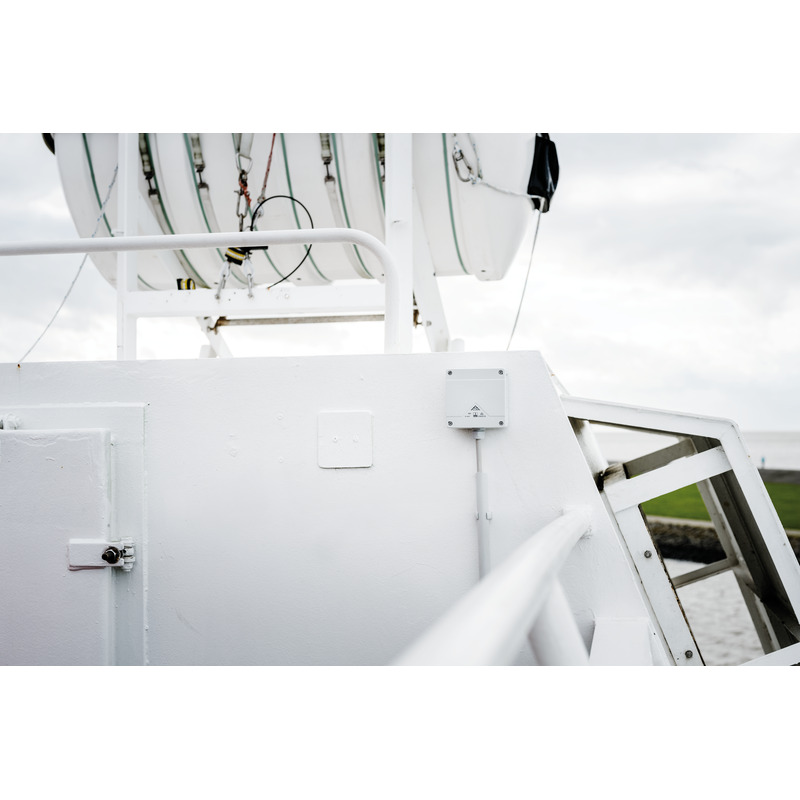

Test mark	DNV (Class: Ships and Offshore Installations)

Logistic data

Outer packaging

EAN / GTIN	4013902662531
Width	0.381 m
Weight	11.325 kg
Height	0.332 m
Quantity	60 pieces
Depth	0.291 m

Pallet

EAN / GTIN	4013902662548
Width	0.8 m
Weight	293.8 kg
Height	1.146 m
Quantity	1440 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902662524
Width	0.092 m
Weight	0.1834 kg
Height	0.06 m
Quantity	1 pieces
Depth	0.092 m
