This article is archived!

#81180701 | Dimensions: 94 x 94 x 57 mm

Junction box

Abox SLK 4²

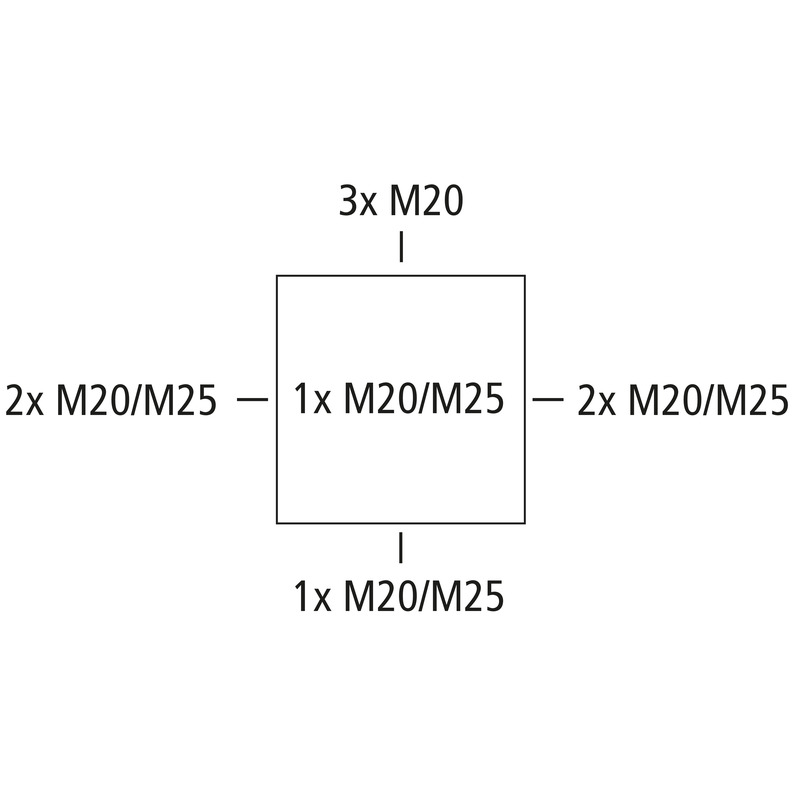

Junction box, protection class IP54/IP65, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M25, (1 rear, 8 side), internal fixing...

Login to see price

Description

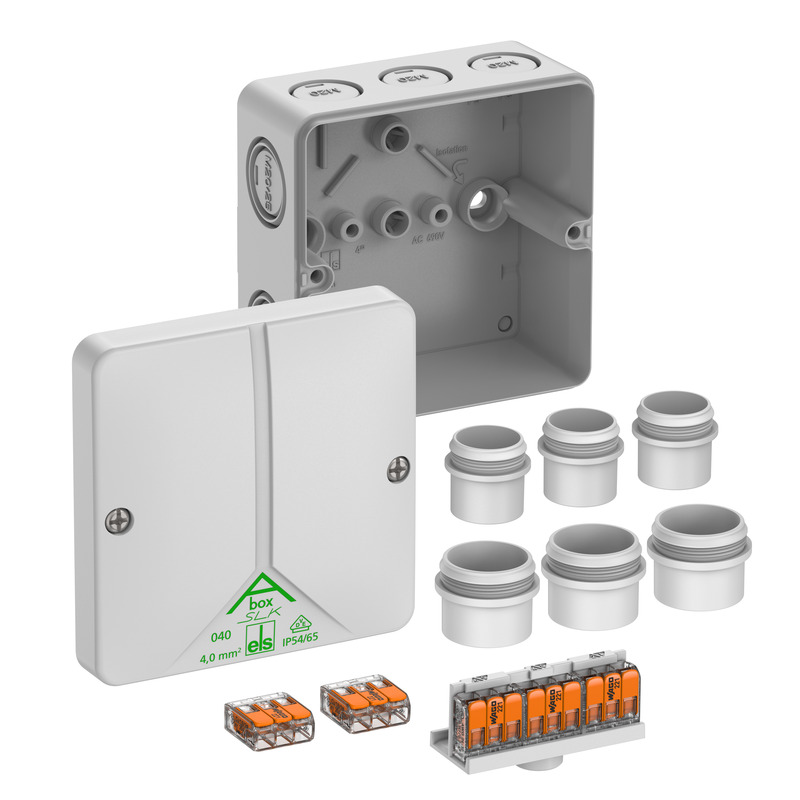

Junction box, protection class IP54/IP65, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M25, (1 rear, 8 side), internal fixing points, with screwless terminals for standard indoor installations

grey, with 5 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413 - 4 mm², cross-sections that can be clamped per pole: 3 x 0.2 to 4 mm² rigid Cu and 3 x 0.14 to 4 mm² flexible Cu

Accessories supplied:
3 attachment bushes IP54 M20 sealing range 8 - 13.5 mm, 3 attachment bushes IP54 M25 sealing range 9 - 18.5 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP54/IP65
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	94 mm
Length	94 mm
Height	57 mm
Weight	0.1528 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	yes
Cover screw torque	1 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902669011
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polystyrene
Cover material	Polystyrene
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Logistic data

Outer packaging

EAN / GTIN	4013902669028
Width	0.431 m
Weight	9.4912 kg
Height	0.302 m
Quantity	60 pieces
Depth	0.296 m

Pallet

EAN / GTIN	4013902669035
Width	0.8 m
Weight	420.6304 kg
Height	1.86 m
Quantity	2520 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902669011
Width	0.094 m
Weight	0.1528 kg
Height	0.057 m
Quantity	1 pieces
Depth	0.094 m
