This article is archived!

#80780701 | Dimensions: 82 x 82 x 52 mm

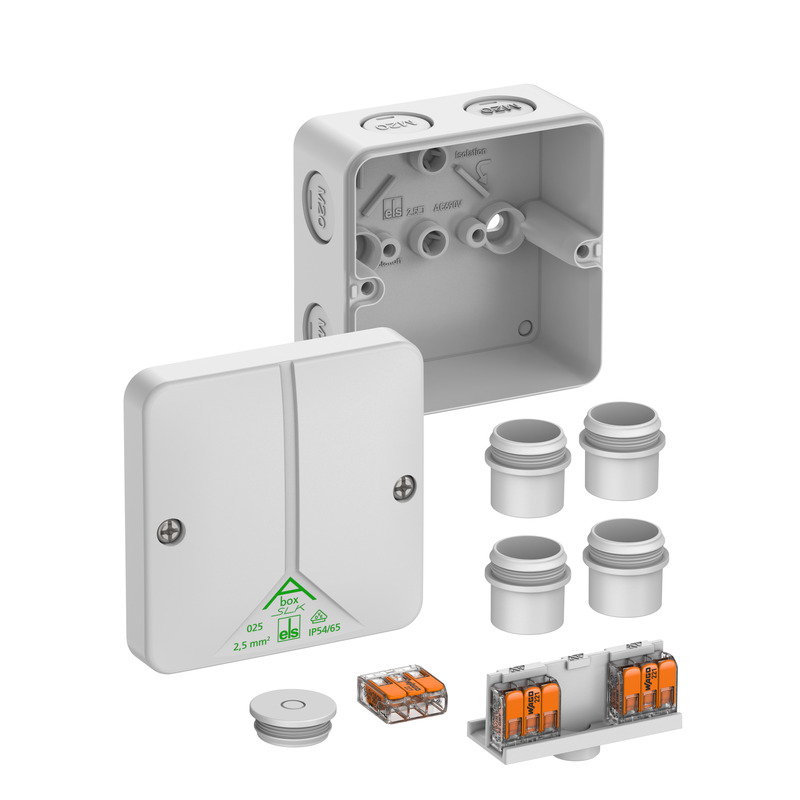

Junction box

Abox SLK-2,5²

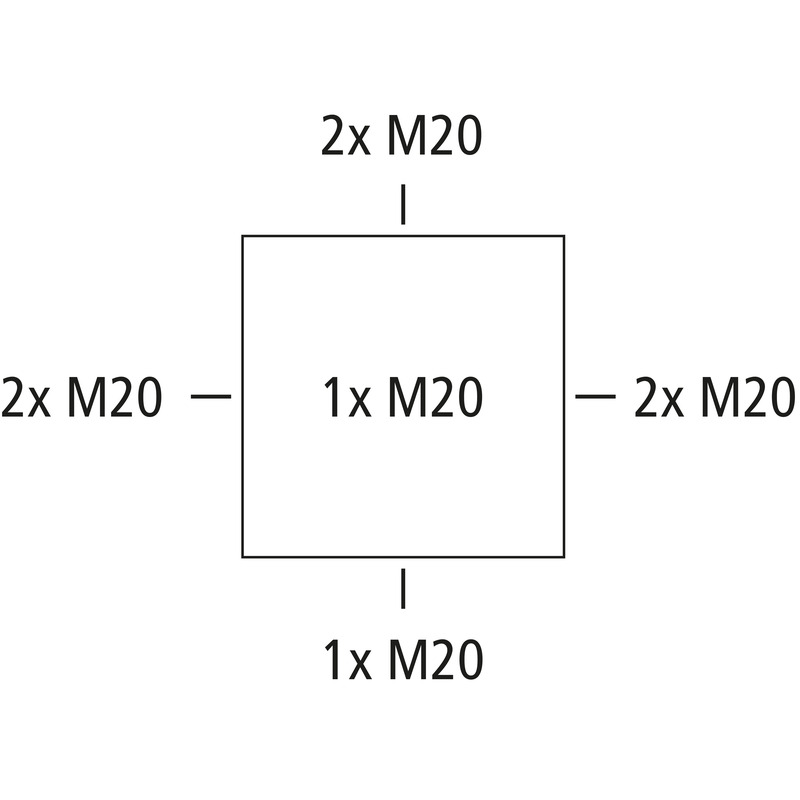

Junction box, protection class IP54/IP65, nominal cross-section 2.5 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20, (1 rear, 7 side), internal fixing...

Login to see price

Description

Junction box, protection class IP54/IP65, nominal cross-section 2.5 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20, (1 rear, 7 side), internal fixing points, with screwless terminals for standard indoor installations

grey, I_n=24 A, with 3 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413 - 2.5 mm², cross-sections that can be clamped per pole: 3 x 0.2 to 2.5 mm² rigid Cu and 3 x 0.14 to 2.5 mm² flexible Cu

Accessories supplied:
4 attachment bushes IP54 M20 sealing range 8 - 13.5 mm, 1 sealing plug M20

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP54/IP65
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	82 mm
Length	82 mm
Height	52 mm
Weight	0.11 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	yes
Cover screw torque	1 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902668984
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polystyrene
Cover material	Polystyrene
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Logistic data

Outer packaging

EAN / GTIN	4013902668991
Width	0.383 m
Weight	6.903 kg
Height	0.281 m
Quantity	60 pieces
Depth	0.258 m

Pallet

EAN / GTIN	4013902669004
Width	0.8 m
Weight	394.762 kg
Height	1.82 m
Quantity	3240 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902668984
Width	0.082 m
Weight	0.11 kg
Height	0.052 m
Quantity	1 pieces
Depth	0.082 m
