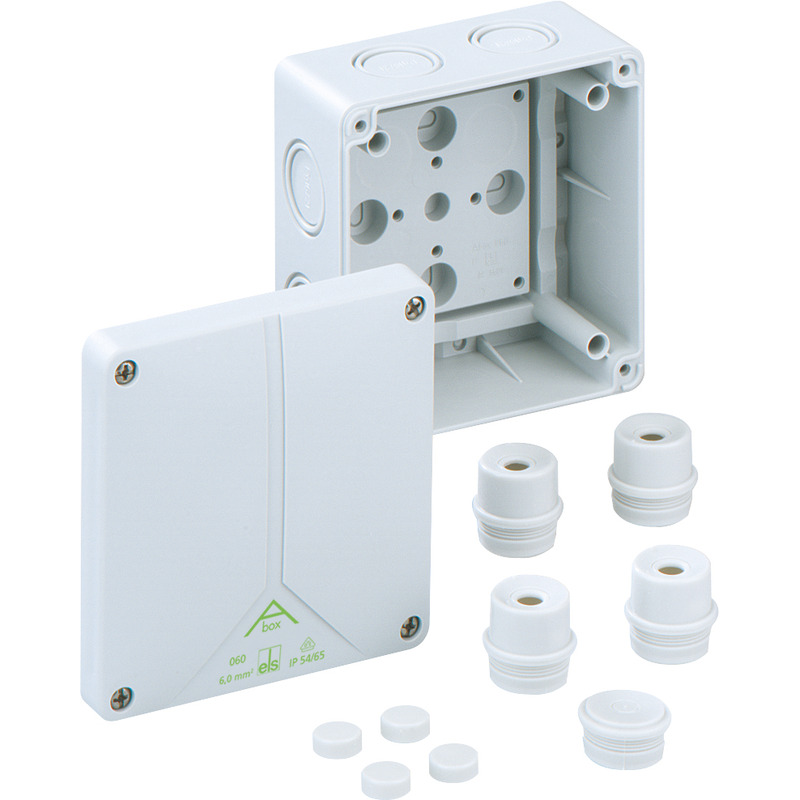

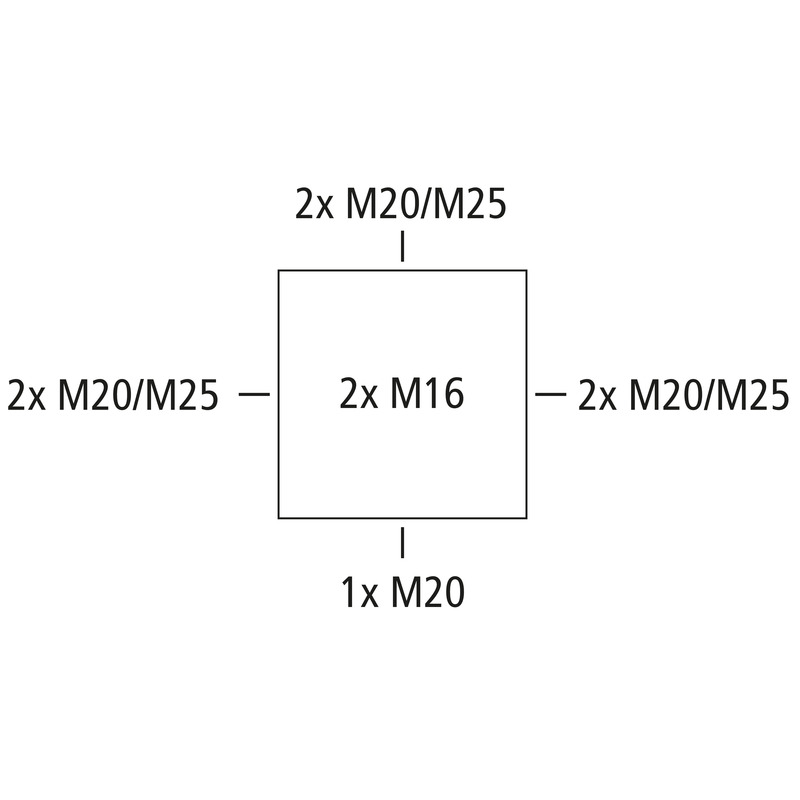

Junction box, protection class IP54/IP65, nominal cross-section 6 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M25, (2 rear, 7 side), internal fixing points, for standard indoor installations
grey, without terminals
Accessories supplied:
4 Attachment bushes IP54 M25 sealing range 9 - 18,5 mm, 1 sealing plugs M25
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 6 mm² |
| Protection class | II |
| Type of protection | IP54/IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 110 mm |
|---|---|
| Length | 110 mm |
| Height | 67 mm |
| Weight | 0.185 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | yes |
| Cover screw torque | 1 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902110193 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polystyrene |
|---|---|
| Cover material | Polystyrene |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902110193 |
|---|---|
| Width | 0.11 m |
| Weight | 0.185 kg |
| Height | 0.067 m |
| Quantity | 1 pieces |
| Depth | 0.11 m |
| EAN / GTIN | 4013902307517 |
|---|---|
| Width | 0.353 m |
| Weight | 4.72 kg |
| Height | 0.286 m |
| Quantity | 24 pieces |
| Depth | 0.233 m |
| EAN / GTIN | 4013902307524 |
|---|---|
| Width | 0.8 m |
| Weight | 272.88 kg |
| Height | 1.86 m |
| Quantity | 1296 pieces |
| Depth | 1.2 m |
Combi set
KS M20
Productnumber 19202001
Thread length 17 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M25
Productnumber 19202501
Thread length 19 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M25-gro
Productnumber 19202601
Thread length 22 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Standard rail
NS 35-81
Productnumber 19808101
for TK 1111, TK 1309, TK 1313, TK 1809, TK 1811 and Abox/Abox-i 060,...
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
Twist plug
WST M20
Productnumber 20342001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist plug
WST M25
Productnumber 20342501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Lock nut
GMU PA M20
Productnumber 20842001
Thread M20x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Lock nut
GMU PA M25
Productnumber 20842501
Thread M25x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Twist nipple
WNI M20
Productnumber 21342001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Twist nipple
WNI M25
Productnumber 21342501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Stepped nipple
SNI M20
Productnumber 21642001
Sealing range 5 - 16 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Stepped nipple
SNI M25
Productnumber 21642501
Sealing range 5 - 21 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Cable gland
KVR M20-MGM
Productnumber 22742001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M20-GDB/MGM
Productnumber 22742101
Sealing range 7 - 14 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Attachment bushes
AST M20
Productnumber 23042001
Sealing range 8 - 13,5 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes
AST M25
Productnumber 23042501
Sealing range 9 - 18,5 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Sealing plugs
VST M20
Productnumber 23142001
Sealing range 8 - 13,5 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Sealing plugs
VST M25
Productnumber 23142501
Sealing range 9 - 16 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Double-membrane seals
DMS M20/sw
Productnumber 26002001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20/w
Productnumber 26012001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25/w
Productnumber 26012501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20
Productnumber 26042001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25
Productnumber 26042501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Ventilation seal
BST M20/sw
Productnumber 26202001
Black
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Ventilation seal
BST M20
Productnumber 26242001
Grey
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Conduit connector
RST M20
Productnumber 28842001
for conduits with an external diameter of 20 mm
Pipe socket to take smooth pipes, with locknut, polystyrene, grey
Conduit connector
RST M25
Productnumber 28842501
for conduits with an external diameter of 25 mm
Pipe socket to take smooth pipes, with locknut, polystyrene, grey
Terminal block
Abox 060 KLS-6²
Productnumber 84000601
5-pole - 6 mm²
Connecting terminal acc. to DIN EN 60998 (VDE 0613), Ui=690V
Sealing kit
Abox PST
Productnumber 89001001
for junction boxes Abox/Abox-i 025 to 100, (from Abox/Abox-i 160,...
Sealing set

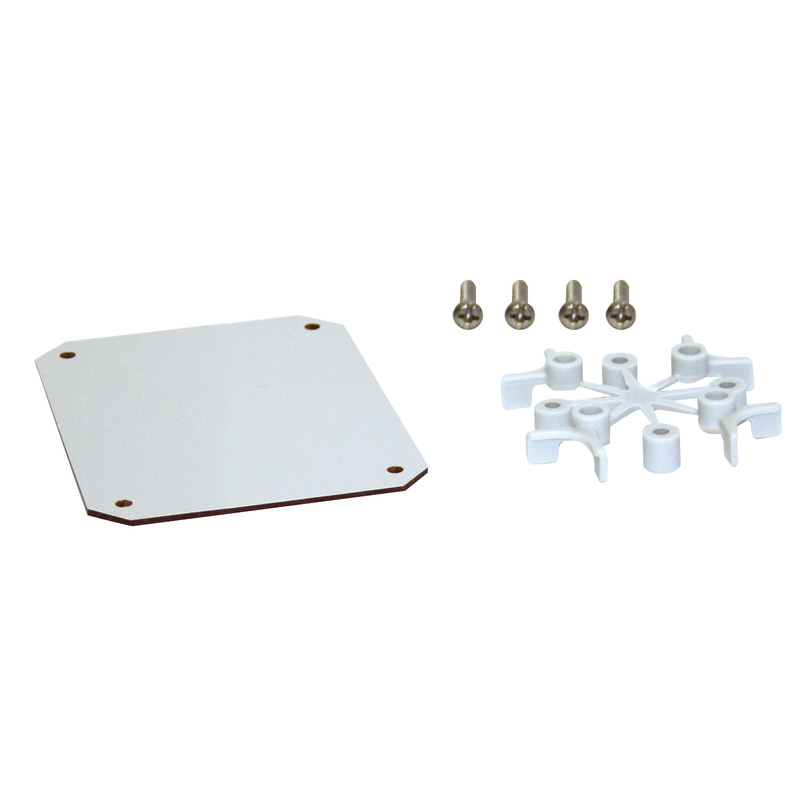

Mounting plate
Abox 060 MPI
Productnumber 89500601
for Abox/Abox-i 060
Assembly plate in melamine-clad insulating material, 2.5 mm thick, grey inc. fixing screws

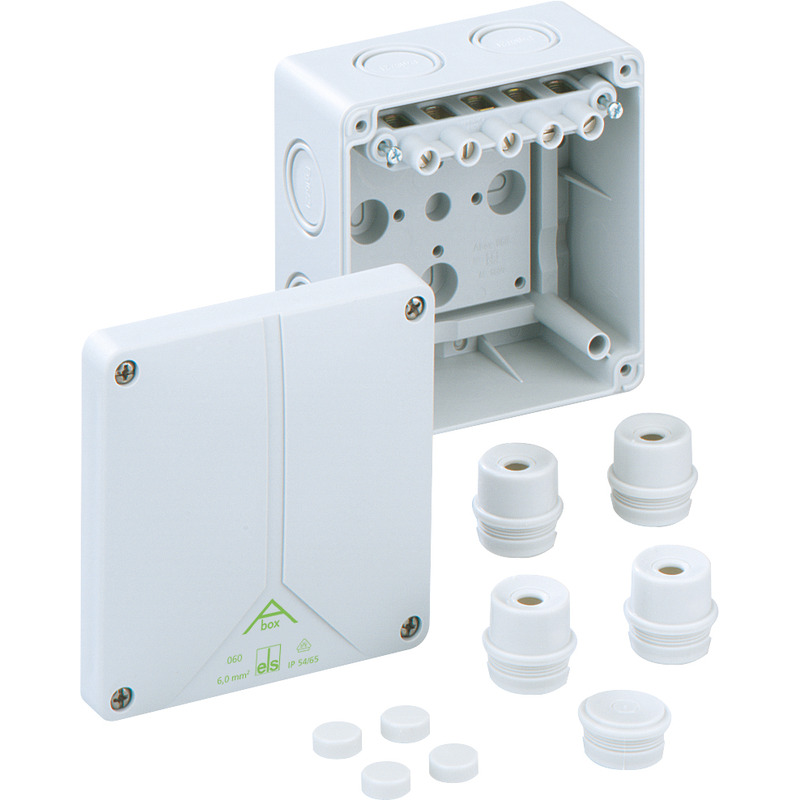

Junction box
Abox 060-6²
Productnumber 80640701
grey, with raised screw terminal, 5-pole - 6 mm² (4 x 2.5² / 4 x 4² /...
Junction box, protection class IP54/IP65, nominal cross-section 6 mm², Ui=690 V AC, certified by VDE...

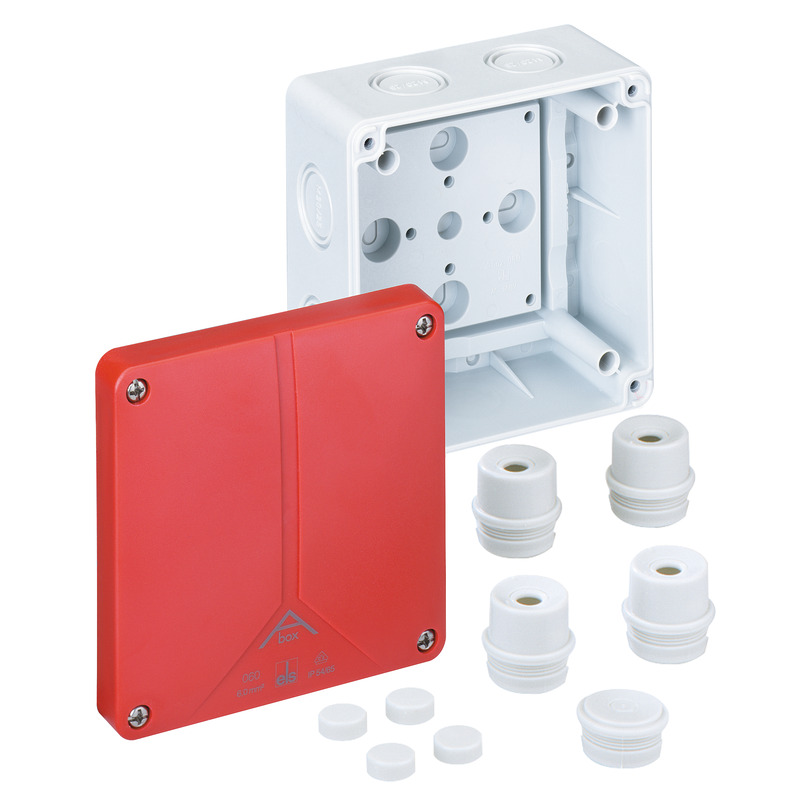

Junction box
