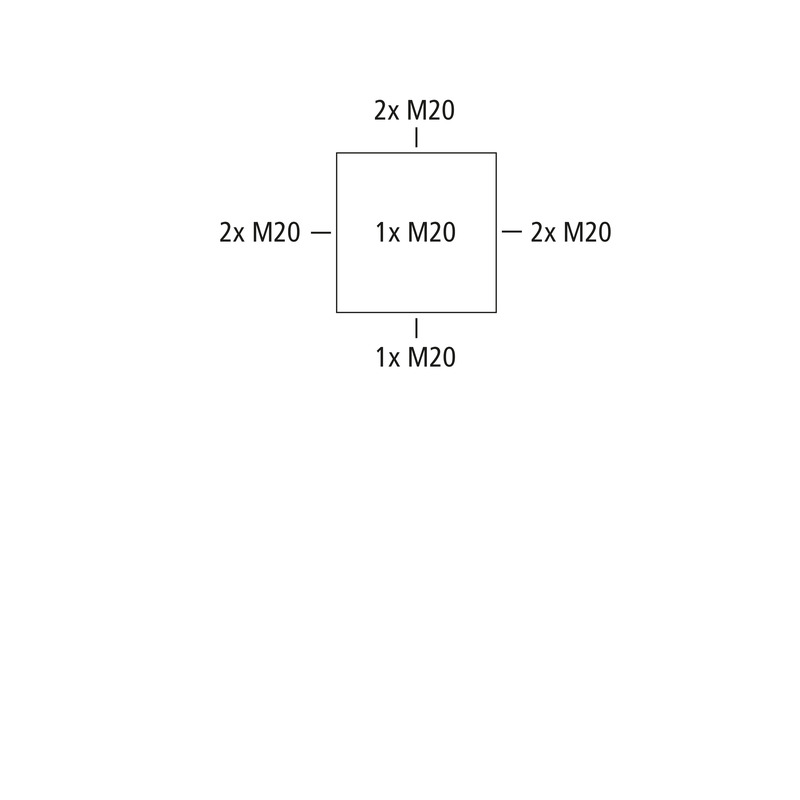

Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, M20, sealing range 2 - 16 mm, (1 rear, 7 side), internal fixing points, for standard indoor installations
grey, with red cover, without terminals, for identifying circuits for safety lighting
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | red |
| Width | 93 mm |
|---|---|
| Length | 93 mm |
| Height | 55 mm |
| Weight | 0.0974 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 2 mm |
|---|---|
| for sealing range max | 16 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | yes |
| Cover screw torque | 1 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902882137 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polystyrene |
|---|---|
| Cover material | Polystyrene |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902882137 |
|---|---|
| Width | 0.093 m |
| Weight | 0.0974 kg |
| Height | 0.055 m |
| Quantity | 1 pieces |
| Depth | 0.093 m |
| EAN / GTIN | 4013902307333 |
|---|---|
| Width | 0.403 m |
| Weight | 6.244 kg |
| Height | 0.296 m |
| Quantity | 60 pieces |
| Depth | 0.298 m |
| EAN / GTIN | 4013902307340 |
|---|---|
| Width | 0.8 m |
| Weight | 280.248 kg |
| Height | 1.91 m |
| Quantity | 2520 pieces |
| Depth | 1.2 m |
