This article is archived!

#50180401 | Dimensions: 94 x 94 x 57 mm

Junction box

Abox-i SLK-4²

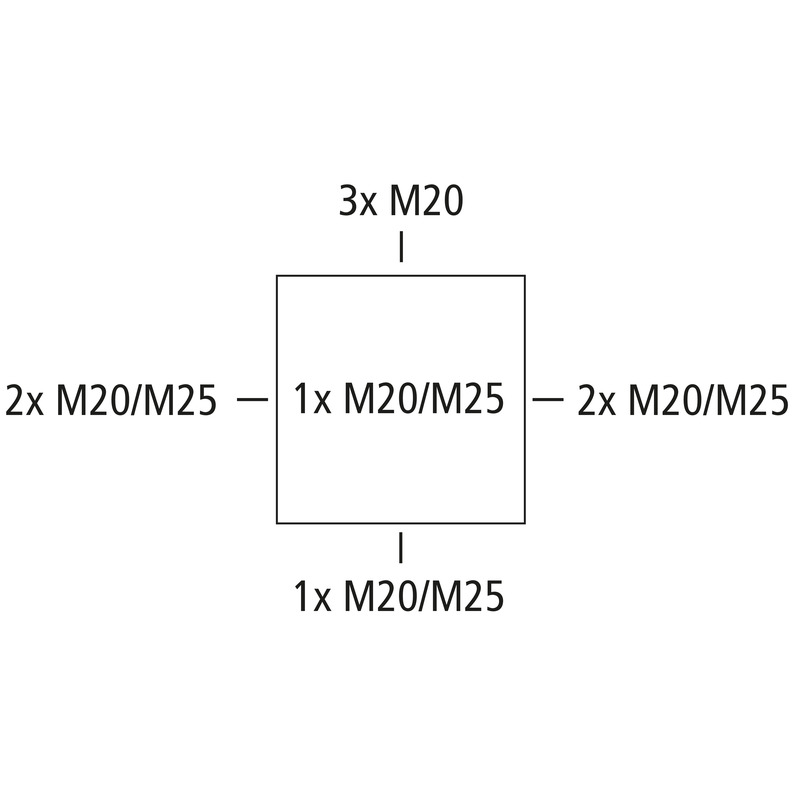

Junction box, protection class IP66, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25, (1 rear, 8...

Login to see price

Description

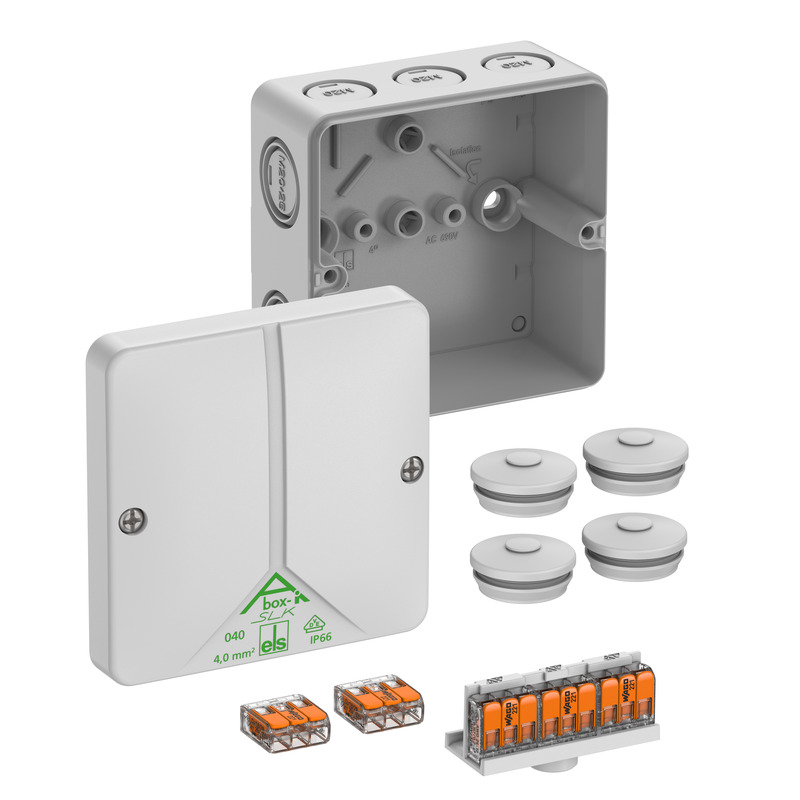

Junction box, protection class IP66, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25, (1 rear, 8 side), internal fixing points, with screwless terminals for installations in the industrial arena and protected outside areas

grey, with 5 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413 - 4 mm², cross-sections that can be clamped per pole: 3 x 0.2 to 4 mm² rigid Cu and 3 x 0.14 to 4 mm² flexible Cu

Accessories supplied:
4 double membrane seals IP66 M25 sealing range 9 - 16 mm,

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP66
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	94 mm
Length	94 mm
Height	57 mm
Weight	0.1763 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.7 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902668953
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Outer packaging

EAN / GTIN	4013902668960
Width	0.431 m
Weight	10.9012 kg
Height	0.302 m
Quantity	60 pieces
Depth	0.296 m

Pallet

EAN / GTIN	4013902668977
Width	0.8 m
Weight	479.8504 kg
Height	1.86 m
Quantity	2520 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902668953
Width	0.094 m
Weight	0.1763 kg
Height	0.057 m
Quantity	1 pieces
Depth	0.094 m
