#49470701 | Dimensions: 93 x 93 x 55 mm
Junction box

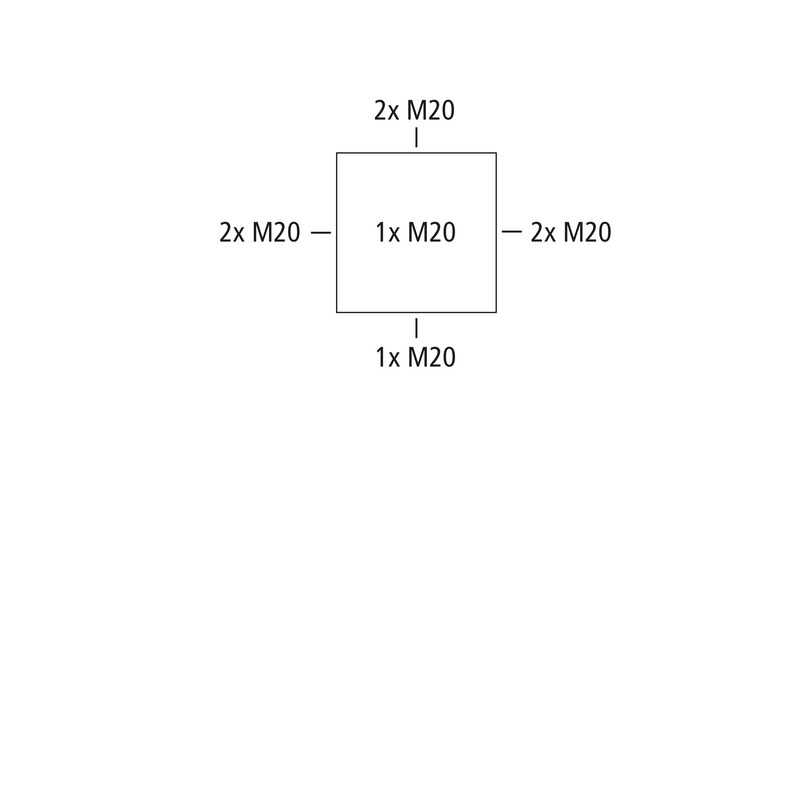

Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), self-sealing, soft insertion membranes, M20, sealing range 2 - 16 mm, (1 rear, 7 side), external fixing lugs, for installations in industrial environments and protected outdoor areas
grey, with red cover, without terminals, for identifying circuits for safety lighting
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | red |
| Width | 93 mm |
|---|---|
| Length | 93 mm |
| Height | 55 mm |
| Weight | 0.1022 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 2 mm |
|---|---|
| for sealing range max | 16 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK08 |
| Sealable | yes |
| Cover screw torque | 1.7 Nm |
| Fastening | external fixing lugs |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902316311 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | ASA-PC |
|---|---|
| Cover material | ASA-PC |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| EAN / GTIN | 4013902316311 |
|---|---|
| Width | 0.093 m |
| Weight | 0.1022 kg |
| Height | 0.055 m |
| Quantity | 1 pieces |
| Depth | 0.093 m |
| EAN / GTIN | 4013902340880 |
|---|---|
| Width | 0.403 m |
| Weight | 6.532 kg |
| Height | 0.296 m |
| Quantity | 60 pieces |
| Depth | 0.298 m |
| EAN / GTIN | 4013902340897 |
|---|---|
| Width | 0.8 m |
| Weight | 292.344 kg |
| Height | 1.91 m |
| Quantity | 2520 pieces |
| Depth | 1.2 m |
