#49141001 | Dimensions: 140 x 140 x 79 mm

Junction box

Abox-i 100-10²/sw

Junction box, protection class IP65, nominal cross-section 10 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore...

Customize

Login to see price

Description

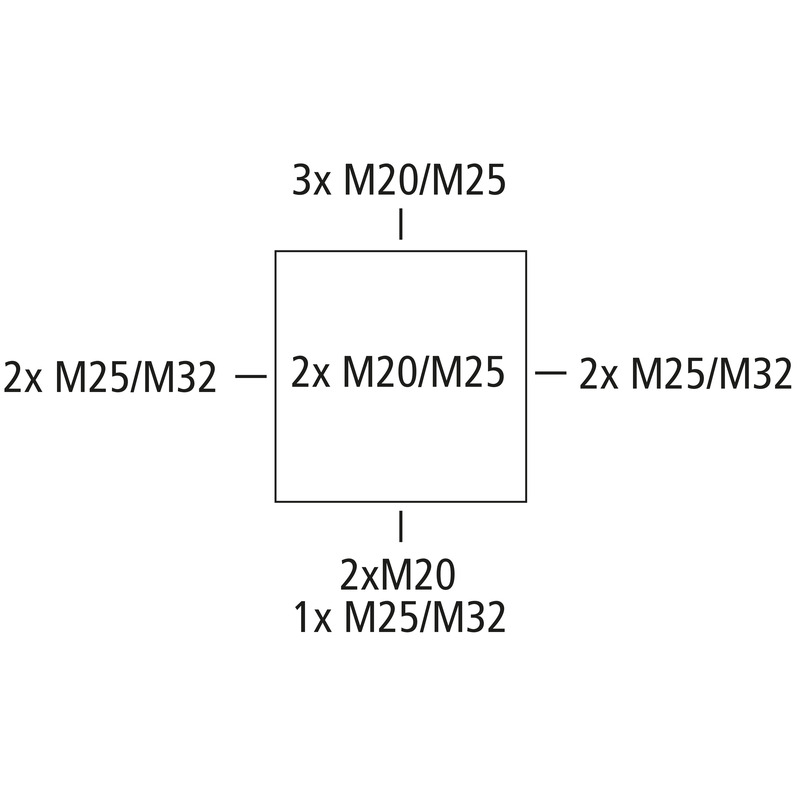

Junction box, protection class IP65, nominal cross-section 10 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, for installations in industrial environments and protected outdoor areas

black, with raised screw terminal, 5-pole - 10 mm² (4 x 4² / 4 x 6² / 4 x 10²)

Accessories supplied:
4 Double-membrane seal IP66 M32 sealing range 14 - 21 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	690 V
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP65
UL Type Rating	not specified

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	140 mm
Length	140 mm
Height	79 mm
Weight	0.4119 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.7 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902930975
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Logistic data

Piece

EAN / GTIN	4013902930975
Width	0.14 m
Weight	0.4119 kg
Height	0.079 m
Quantity	1 pieces
Depth	0.14 m

Outer packaging

EAN / GTIN	4013902312313
Width	0.381 m
Weight	8.638 kg
Height	0.332 m
Quantity	20 pieces
Depth	0.291 m

Pallet

EAN / GTIN	4013902312320
Width	0.8 m
Weight	320.33 kg
Height	1.87 m
Quantity	700 pieces
Depth	1.2 m

Downloads

Planningdata

Download 3D-BIM-Data

To the support page
