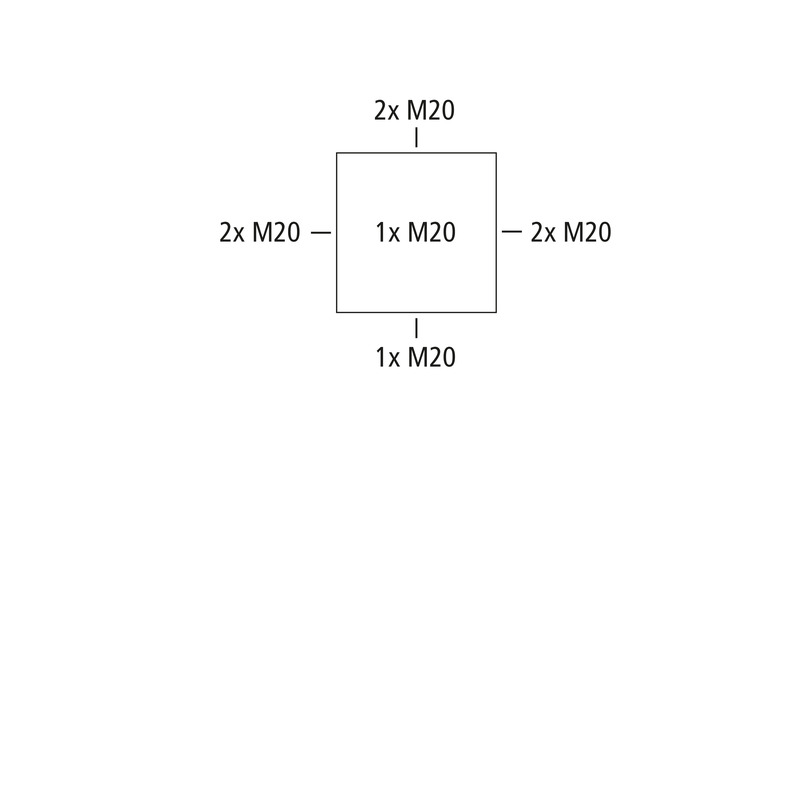

Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), self-sealing, soft insertion membranes, M20, sealing range 2 - 16 mm, (1 rear, 7 side), internal fixing points, for installations in industrial environments and protected outdoor areas
black, with screw terminal, 5-pole - 2.5/4 mm² (4 x 1.5² / 4 x 2.5² / 4 x 4²)
| 4013902930937 | |
| 0.093 | |
| 0.131 | |
| 0.055 | |
| 1 | |
| 0.093 |
| 4013902312276 | |
| 0.403 | |
| 8.26 | |
| 0.296 | |
| 60 | |
| 0.298 |
| 4013902312283 | |
| 0.8 | |
| 364.92 | |
| 1.91 | |
| 2520 | |
| 1.2 |
Twist plug
WST M20/sw
Productnumber 20302001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, black
Twist nipple
WNI M20/sw
Productnumber 21302001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, black
Cable gland
KVR M20-MGM/sw
Productnumber 22702001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Cable gland
KVR M20-GDB/MGM/sw
Productnumber 22702101
Sealing range 7 - 14 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Double-membrane seals
DMS M20/sw
Productnumber 26002001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Ventilation seal
BST M20/sw
Productnumber 26202001
Black
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Ventilation seal
BST M20
Productnumber 26242001
Grey
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Terminal block
Abox 025/040 KLS-2,5²/4²
Productnumber 84000401
5-pole - 2.5/4 mm²
Connecting terminal acc. to DIN EN 60998 (VDE 0613), Ui=690V
Sealing kit
Abox PST
Productnumber 89001001
for junction boxes Abox/Abox-i 025 to 100, (from Abox/Abox-i 160,...
Sealing set
Terminal holder
Abox 025/040 KLH-SL 0,2/4²
Productnumber 84000201
suitable for all junction boxes Abox / Abox -i 025/040 and Abox m /...
Terminal holder for WAGO terminals, series 221-41X
Junction box
Abox-i 040-L
Productnumber 49090401
grey, without terminals
Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN...
Junction box
Abox-i 040-4²
Productnumber 49040401
grey, with screw terminal, 5-pole - 2.5/4 mm² (4 x 1.5² / 4 x 2.5² / 4...
Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN...
Junction box
Abox-i 040 SB-L
Productnumber 49070401
grey, with red cover, without terminals, for identifying circuits for...
Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN...
Junction box
Abox-i 040-L/sw
Productnumber 49190401
black, without terminals
Junction box, protection class IP65, nominal cross-section 4 mm², Ui=690 V AC, certified by VDE (DIN...
