This article is archived!

#49081001 | Dimensions: 140 x 140 x 79 mm

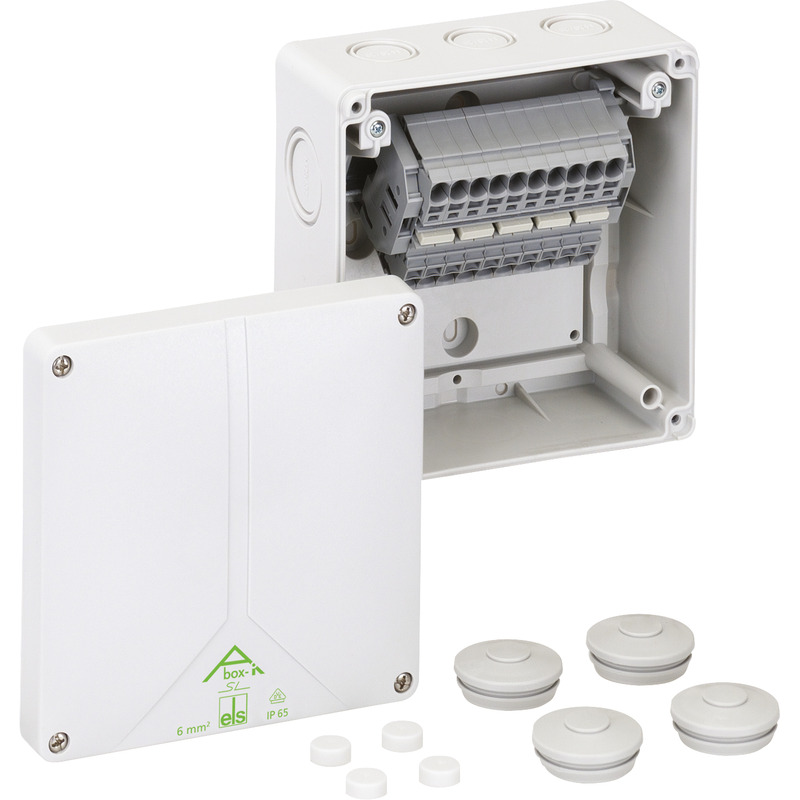

Junction box

Abox-i SL-6²

Junction box, protection class IP65, nominal cross-section 6 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25/M32, (2 rear,...

Customize

Login to see price

Description

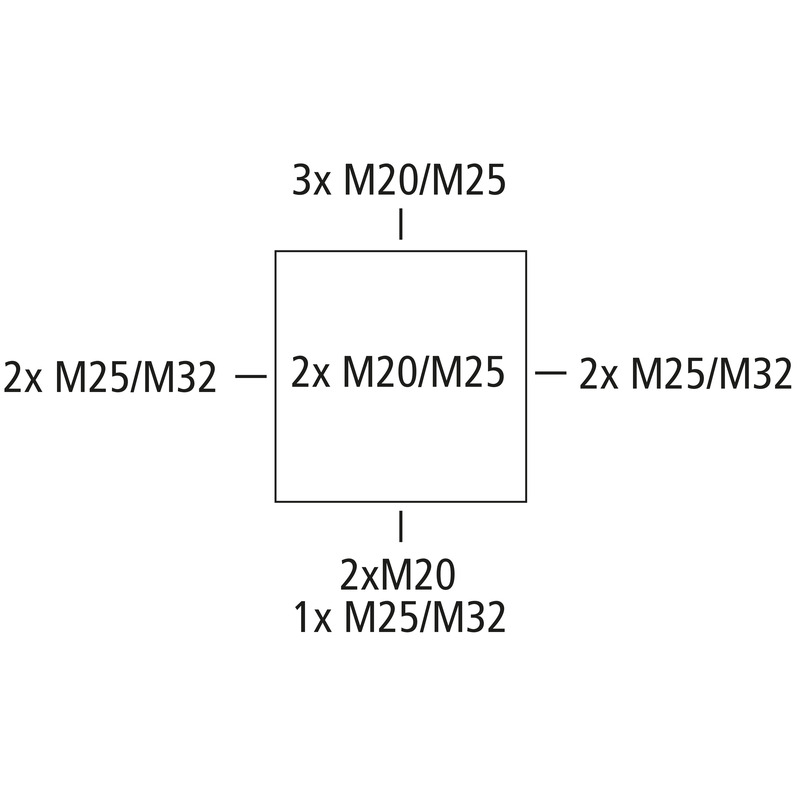

Junction box, protection class IP65, nominal cross-section 6 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, with screwless terminals for installations in the industrial arena and protected outside areas

grey, with raised, screwless terminal Wago 2006-1201, 5-pole, max. nominal cross-section according to DIN EN 60998: 6 mm², 41 A current load capacity, cross-sections able to be clamped per pole: 4 x 0.5 to 10 mm² rigid and flexible

Accessories supplied:
4 Double-membrane seal IP66 M32 sealing range 14 - 21 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	690 V
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP65
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	140 mm
Length	140 mm
Height	79 mm
Weight	0.5146 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.7 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902930883
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Piece

EAN / GTIN	4013902930883
Width	0.14 m
Weight	0.5146 kg
Height	0.079 m
Quantity	1 pieces
Depth	0.14 m

Outer packaging

EAN / GTIN	4013902312054
Width	0.381 m
Weight	10.692 kg
Height	0.332 m
Quantity	20 pieces
Depth	0.291 m

Pallet

EAN / GTIN	4013902312061
Width	0.8 m
Weight	392.22 kg
Height	1.87 m
Quantity	700 pieces
Depth	1.2 m
