#49040201 | Dimensions: 80 x 80 x 52 mm

Junction box

Abox-i 025-2,5²

Junction box, protection class IP65, nominal cross-section 2.5 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore...

Customize

Login to see price

Description

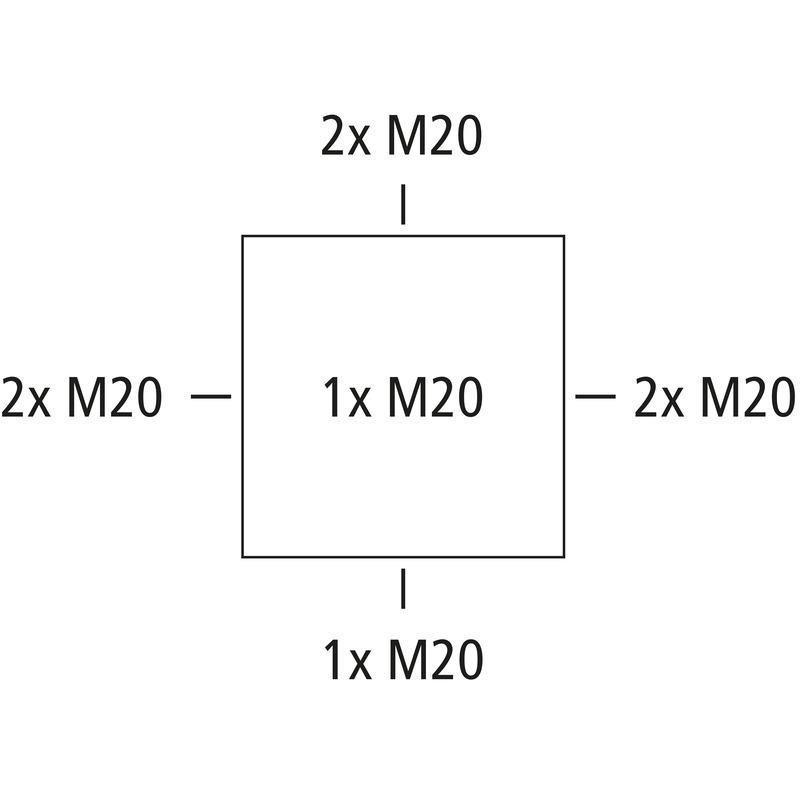

Junction box, protection class IP65, nominal cross-section 2.5 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), self-sealing, soft insertion membranes, M20, sealing range 2 - 16 mm, (1 rear, 7 side), internal fixing points, for installations in industrial environments and protected outdoor areas

grey, I_n=24 A, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x 2.5²)

Highlights

The Spelsberg Abox weather-resistant junction boxes with and without terminals from 1.5 to 240 mm² are extremely impact and break-resistant. They are designed for use in extreme conditions and can be used with a red cover if preferred for identification of safety lighting electric circuits.

Technical Data

electrical characteristics

Rated insulation voltage AC	690 V
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP65
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	80 mm
Length	80 mm
Height	52 mm
Weight	0.1092 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

for sealing range min	2 mm
for sealing range max	16 mm
Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.7 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

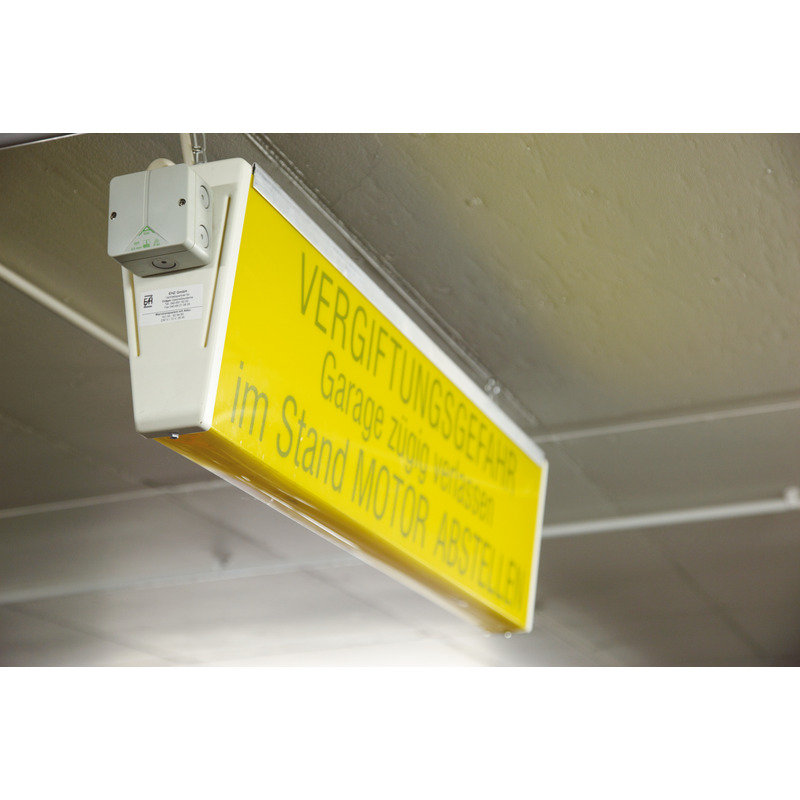

Installation location	protected outdoor areas

Sales Information

EAN	4013902152322
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	ASA-PC
Cover material	ASA-PC
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Logistic data

Piece

EAN / GTIN	4013902152322
Width	0.08 m
Weight	0.1092 kg
Height	0.052 m
Quantity	1 pieces
Depth	0.08 m

Outer packaging

EAN / GTIN	4013902311774
Width	0.383 m
Weight	6.867 kg
Height	0.281 m
Quantity	60 pieces
Depth	0.258 m

Pallet

EAN / GTIN	4013902311781
Width	0.8 m
Weight	388.818 kg
Height	1.82 m
Quantity	3240 pieces
Depth	1.2 m
