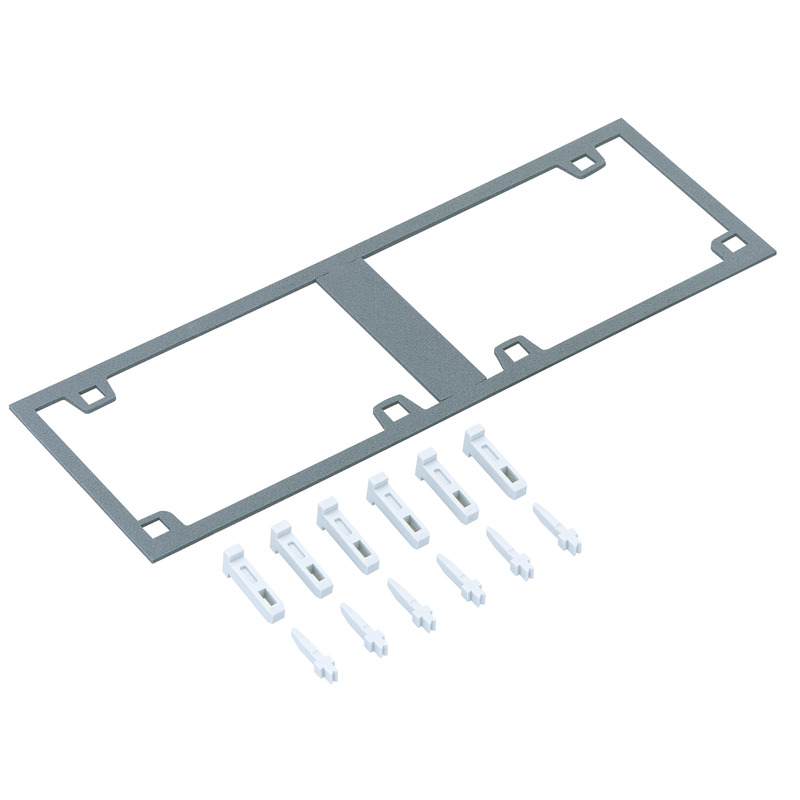

Combi set, for horizontal or vertical combination of all AK enclosures (until 04/15) and AKi enclosures from 300 x 150 mm, complete with wedge connectors and intermediate sealing for 150 and 300 mm enclosure sides, each 300 mm = 1 combi set
| Type of protection | IP65 |
|---|
| Width | 235 mm |
|---|---|
| Length | 150 mm |
| Height | 7 mm |
| Weight | 0.0164 kg |
| UV-resistant | no |
|---|---|
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of accessory | other |
|---|
| EAN | 4013902062690 |
|---|---|
| ETIM Class | EC002287 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| EAN / GTIN | 4013902062690 |
|---|---|
| Width | 0.235 m |
| Weight | 0.0164 kg |
| Height | 0.007 m |
| Quantity | 1 pieces |
| Depth | 0.15 m |
| EAN / GTIN | 4013902344048 |
|---|---|
| Width | 0.357 m |
| Weight | 1.035 kg |
| Height | 0.127 m |
| Quantity | 50 pieces |
| Depth | 0.257 m |
| EAN / GTIN | 4013902344055 |
|---|---|
| Width | 0.8 m |
| Weight | 129.78 kg |
| Height | 1.67 m |
| Quantity | 5400 pieces |
| Depth | 1.2 m |
