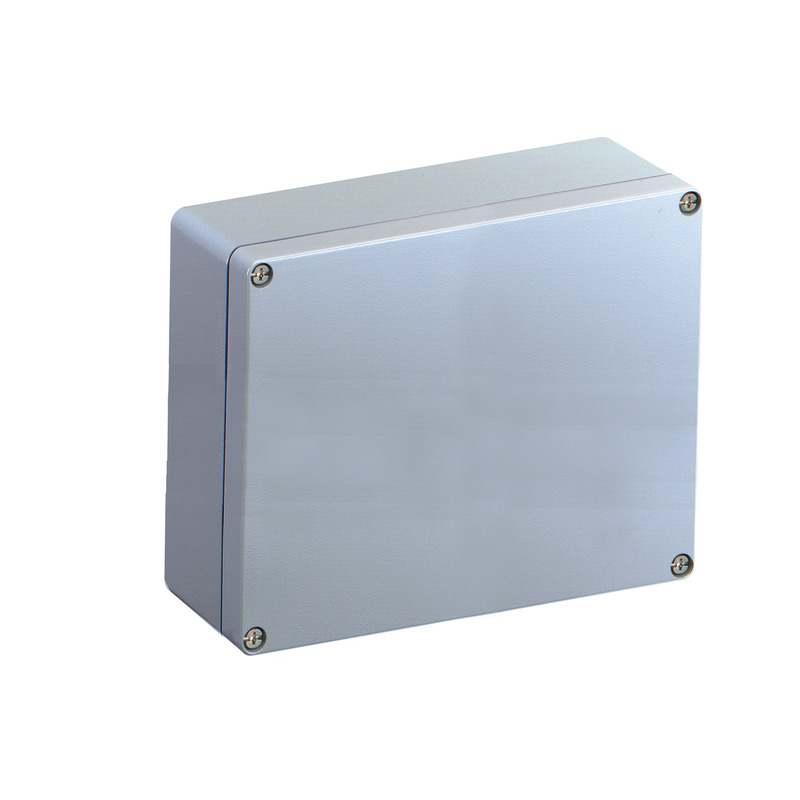

Empty enclosure, protection class IP66, Aluminium, powder-coated painting, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), for installations in industrial environments and protected outdoor areas
Box: Aluminium, powder-coated painting, Lid: Aluminium, powder-coated painting, silver-grey, smooth sidewalls
Compatible with the respective TK built-in components
| Protection class | I |
|---|---|
| Type of protection | IP66 |
| vented | no |
| UL Type Rating | 4X, 12 |
| Cover colour | silver-grey |
|---|
| Width | 273 mm |
|---|---|
| Length | 205 mm |
| Height | 95 mm |
| Weight | 2.7817 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK09 |
| Flange variant | no |
| Stackable | no |
| Type of top part | Cover |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 75 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902388325 |
|---|---|
| ETIM Class | EC000261 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Aluminium, powder-coated painting |
|---|---|
| Cover material | Aluminium, powder-coated painting |
| Sealing material | Silicone |
| Test mark | UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07) |
|---|
| EAN / GTIN | 4013902388325 |
|---|---|
| Width | 0.26 m |
| Weight | 2.7817 kg |
| Height | 0.091 m |
| Quantity | 1 pieces |
| Depth | 0.16 m |
| EAN / GTIN | 4013902388332 |
|---|---|
| Width | 0.8 m |
| Weight | 6175.0761 kg |
| Height | 1.4 m |
| Quantity | 2212 pieces |
| Depth | 1.2 m |
External attachment set
AL ALS-gro
Productnumber 15400601
for AL/ALR 1212, 1616, 2212, 2320, 2616, 2823, 3323, 3616
External fixing lugs
External hinge set
AL ASS
Productnumber 15421001
for AL/ALR 1010, 1212, 1616, 2212, 2320, 2616, 2823, 3323, 3616
For converting the enclosure cover into a hinged door. Incl. 2 hinges, fastening screws and drilling...

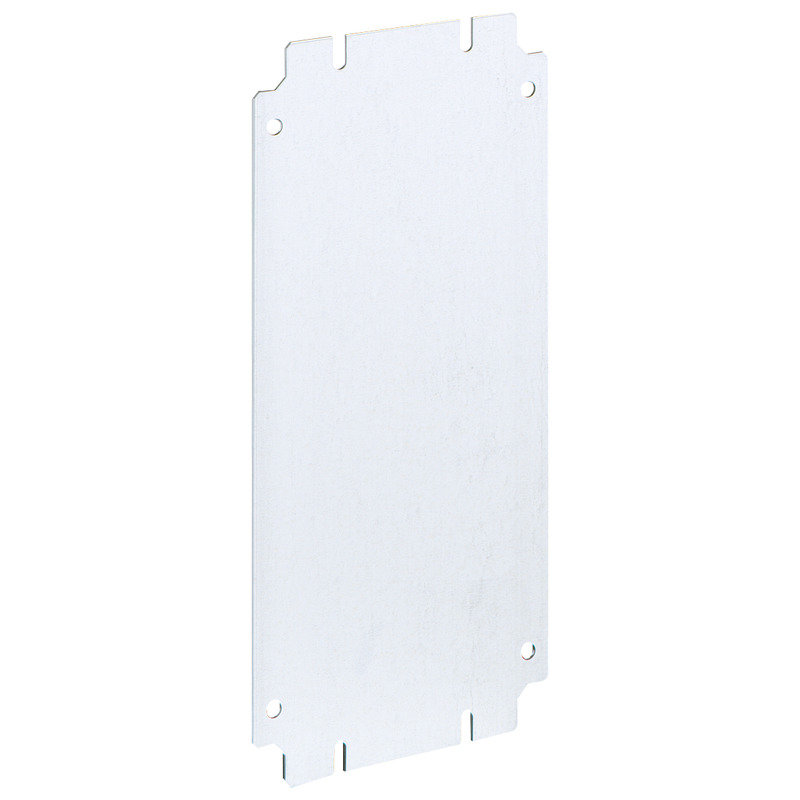

Mounting plate
AL MPS-1010
Productnumber 15500801
for AL 1010
Assembly plate, galvanized steel sheet, 1.5 mm thick
Mounting plate
TK MPS-2518
Productnumber 19700801
TK PS / TK PC 2518
Assembly plate, galvanized steel sheet, 2 mm thick, incl. fixing screws
Standard rail
TS 15-154
Productnumber 19715401
for TK 1809, TK 1811, TK 1813, TK 1818, TK 2518, length 154 mm
Standard rail acc. to DIN EN 60715, 15 x 5, width 15 mm, incl. fixing screws
Standard rail
NS 35-216
Productnumber 19821601
TK PS/PC 2518/362
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
