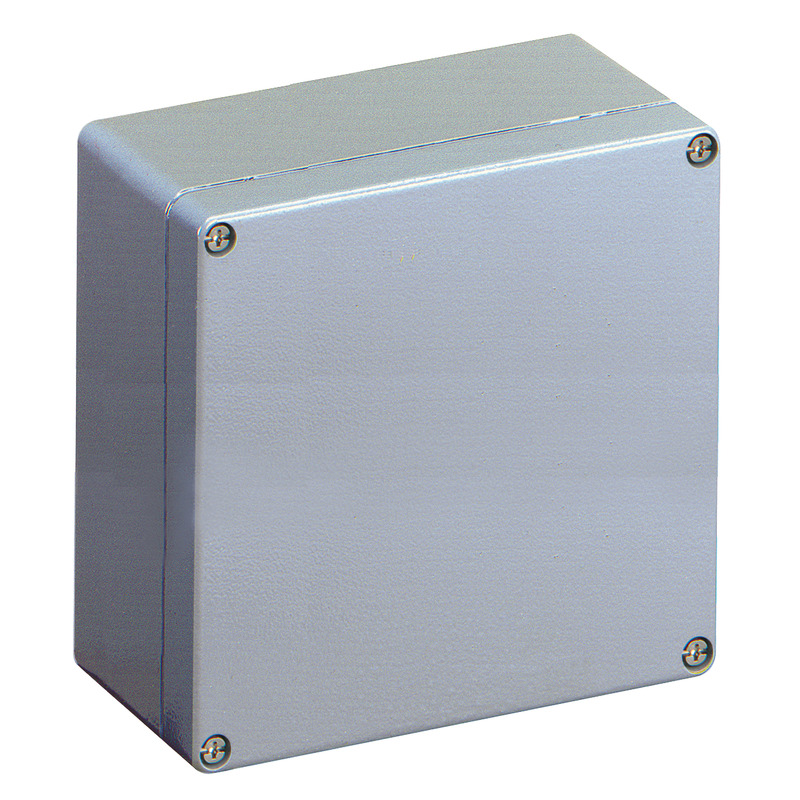

Empty enclosure, protection class IP66, Aluminium, powder-coated painting, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), for installations in industrial environments and protected outdoor areas
Box: Aluminium, powder-coated painting, Lid: Aluminium, powder-coated painting, silver-grey, smooth sidewalls
Compatible with the respective TK built-in components
| Protection class | I |
|---|---|
| Type of protection | IP66 |
| vented | no |
| UL Type Rating | 4X, 12 |
| Cover colour | silver-grey |
|---|
| Width | 154 mm |
|---|---|
| Length | 154 mm |
| Height | 81 mm |
| Weight | 1.6571 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK09 |
| Flange variant | no |
| Stackable | no |
| Type of top part | Cover |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 75 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902388233 |
|---|---|
| ETIM Class | EC000261 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Aluminium, powder-coated painting |
|---|---|
| Cover material | Aluminium, powder-coated painting |
| Sealing material | Silicone |
| Test mark | UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7) |
|---|
| EAN / GTIN | 4013902388233 |
|---|---|
| Width | 0.122 m |
| Weight | 1.6571 kg |
| Height | 0.081 m |
| Quantity | 1 pieces |
| Depth | 0.12 m |
| EAN / GTIN | 4013902388240 |
|---|---|
| Width | 0.8 m |
| Weight | 3687.5052 kg |
| Height | 1.4 m |
| Quantity | 2212 pieces |
| Depth | 1.2 m |
External attachment set
AL ALS-gro
Productnumber 15400601
for AL/ALR 1212, 1616, 2212, 2320, 2616, 2823, 3323, 3616
External fixing lugs
External hinge set
AL ASS
Productnumber 15421001
for AL/ALR 1010, 1212, 1616, 2212, 2320, 2616, 2823, 3323, 3616
For converting the enclosure cover into a hinged door. Incl. 2 hinges, fastening screws and drilling...
Mounting plate
TK MPI-1313
Productnumber 19500501
TK PS / TK PC 1313
Assembly plate in melamine-clad insulating material, 2.5 mm thick, incl. fixing screws and spacers,...

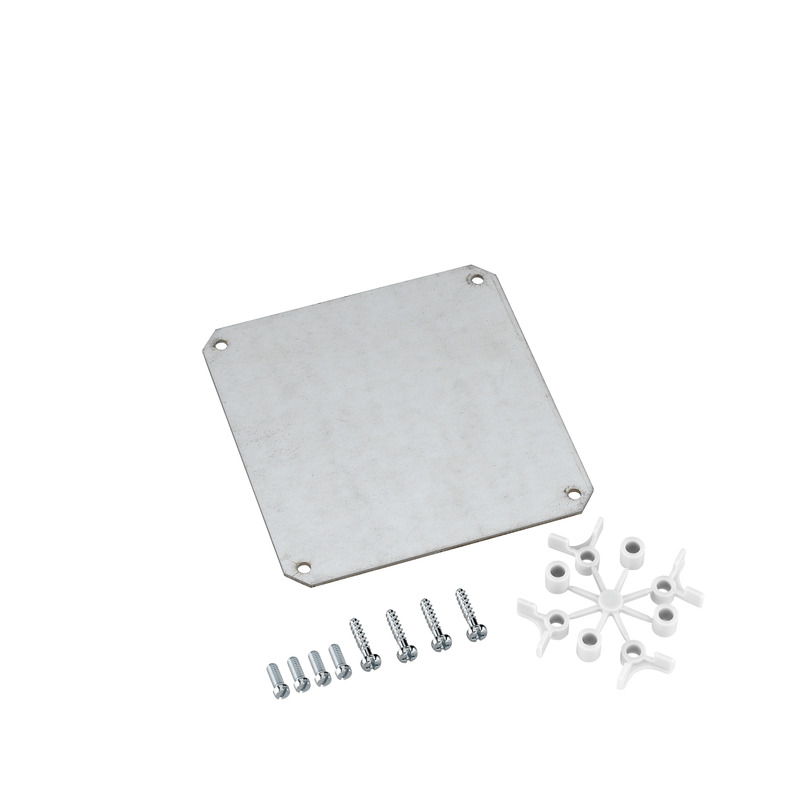

Mounting plate
TK MPS-1313
Productnumber 19700501
TK PS / TK PC 1313
Assembly plate in galvanized steel melamine-clad insulating material, 2 mm thick, incl. fixing...
Standard rail
TS 15-111
Productnumber 19711101
for TK 1309, TK 1313, length 111 mm
Standard rail acc. to DIN EN 60715, 15 x 5, width 15 mm, incl. fixing screws
Standard rail
NS 35-106
Productnumber 19810601
for TK 1309, TK 1313 and Abox/Abox-i 100, length 106 mm
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
