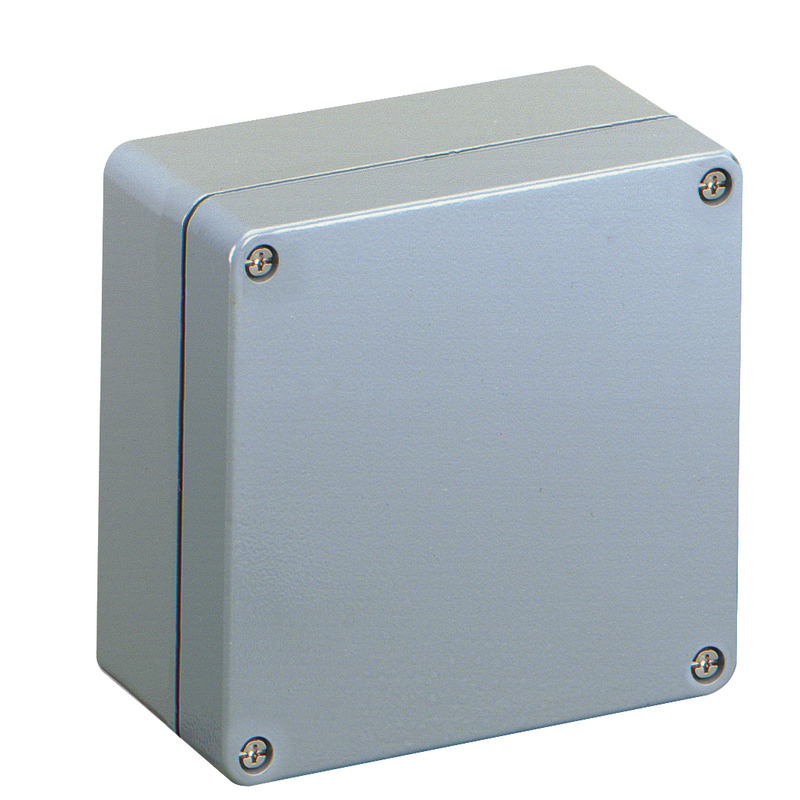

Empty enclosure, protection class IP66, Aluminium, powder-coated painting, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), for installations in industrial environments and protected outdoor areas
Box: Aluminium, powder-coated painting, Lid: Aluminium, powder-coated painting, silver-grey, smooth sidewalls
Internal dimensions and mounting points correspond to the respective TK PS/PC dimension
| Protection class | I |
|---|---|
| Type of protection | IP66 |
| vented | no |
| UL Type Rating | 4X, 12 |
| Cover colour | silver-grey |
|---|
| Width | 119 mm |
|---|---|
| Length | 119 mm |
| Height | 64 mm |
| Weight | 0.8652 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK09 |
| Flange variant | no |
| Stackable | no |
| Type of top part | Cover |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 75 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902388172 |
|---|---|
| ETIM Class | EC000261 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Aluminium, powder-coated painting |
|---|---|
| Cover material | Aluminium, powder-coated painting |
| Sealing material | Silicone |
| Test mark | UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7) |
|---|
| EAN / GTIN | 4013902388172 |
|---|---|
| Width | 0.122 m |
| Weight | 0.8652 kg |
| Height | 0.081 m |
| Quantity | 1 pieces |
| Depth | 0.12 m |
| EAN / GTIN | 4013902388189 |
|---|---|
| Width | 0.8 m |
| Weight | 1935.8224 kg |
| Height | 1.4 m |
| Quantity | 2212 pieces |
| Depth | 1.2 m |
External attachment set
AL ALS-kl
Productnumber 15400401
for AL/ALR 88, 1006, 1010, 1308, 1506, 1808
External fixing lugs
Mounting plate
TK MPI-99
Productnumber 19500301
TK PS / TK PC 99
Assembly plate in melamine-clad insulating material, 2.5 mm thick, incl. fixing screws and spacers,...

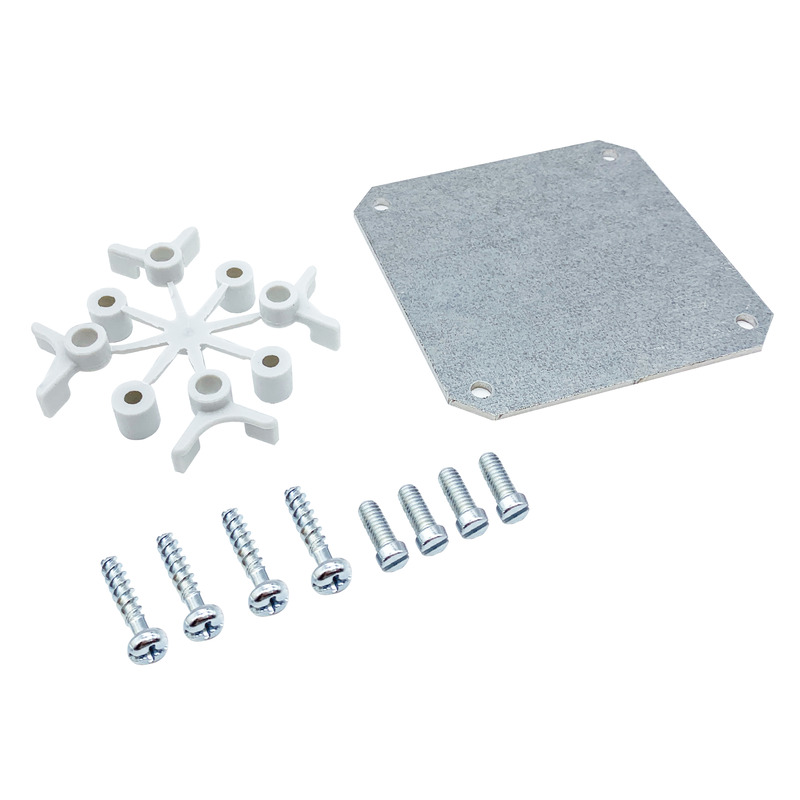

Mounting plate
TK MPS-99
Productnumber 19700301
TK PS / TK PC 99
Assembly plate in galvanized steel melamine-clad insulating material, 2 mm thick, incl. fixing...
Standard rail
TS 15-80
Productnumber 19708001
for TK 97, TK 99, TK 1111, TK 1309, TK 1313, TK 1809, TK 1811, length...
Standard rail acc. to DIN EN 60715, 15 x 5, width 15 mm, incl. fixing screws
