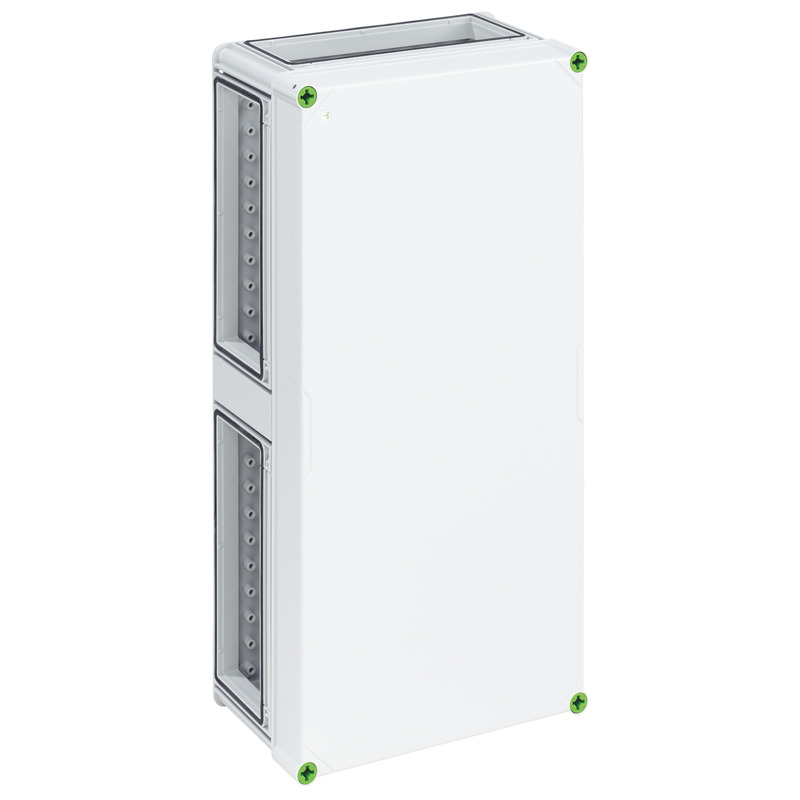

Description
Empty Enclosure, 4 x enclosure connectors (GGV)
with grey cover
#01040401 | Dimensions: 320 x 640 x 179 mm
Empty enclosure
Technical Data
electrical characteristics
| Rated insulation voltage AC | 690 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | 3R |
Colours
| Base unit colour | grey |
|---|
Dimensions
| Width | 320 mm |
|---|---|
| Length | 640 mm |
| Height | 179 mm |
| Inner height | 157 mm |
| Weight | 2.9932 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK08 |
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
Ambient conditions
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902050338 |
|---|---|
| ETIM Class | EC000058 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
Material
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
Logistic data
Outer packaging
| EAN / GTIN | 4013902050338 |
|---|---|
| Width | 0.655 m |
| Weight | 3.53 kg |
| Height | 0.27 m |
| Quantity | 1 pieces |
| Depth | 0.335 m |
Pallet
| EAN / GTIN | 4013902308095 |
|---|---|
| Width | 0.8 m |
| Weight | 107 kg |
| Height | 1.74 m |
| Quantity | 24 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet
Dimensioned drawing
Accessories
Weather protection coverGFW 30
Weather protection cover
GFW 30
Productnumber 07335001
320mm, Incl. milled flange GFL
Weather protection roof for GTi enclosure, Can be modularly combined, to prevent stress for the...
Flange setGFS 14-m
Flange set
GFS 14-m
Productnumber 07251401
Flange kit consisting of flanges GFL 321, 2x 331, 341, 351 and 361
Flange set with metric pre-embossing, 2 x flange connectors per flange
AIR ventilation elementBEL Air active M40 12-1/gr
new
AIR ventilation element
BEL Air active M40 12-1/gr
Productnumber 26541101
12 V DC, performance class 1, grey
Filter fan for installation in enclosure openings M40, for heat dissipation from industrial empty...
AIR ventilation elementBEL Air active M40 24-1/gr
new
AIR ventilation element
BEL Air active M40 24-1/gr
Productnumber 26541201
24 V DC, performance class 1, grey
Filter fan for installation in enclosure openings M40, for heat dissipation from industrial empty...
Similar products

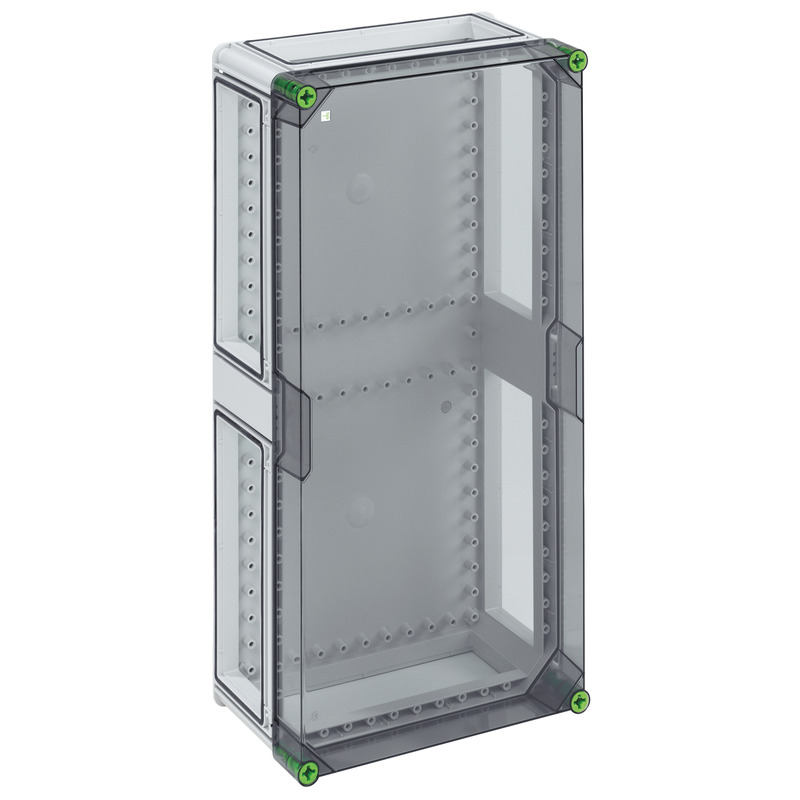

Empty enclosureGTi 4-t
