Description

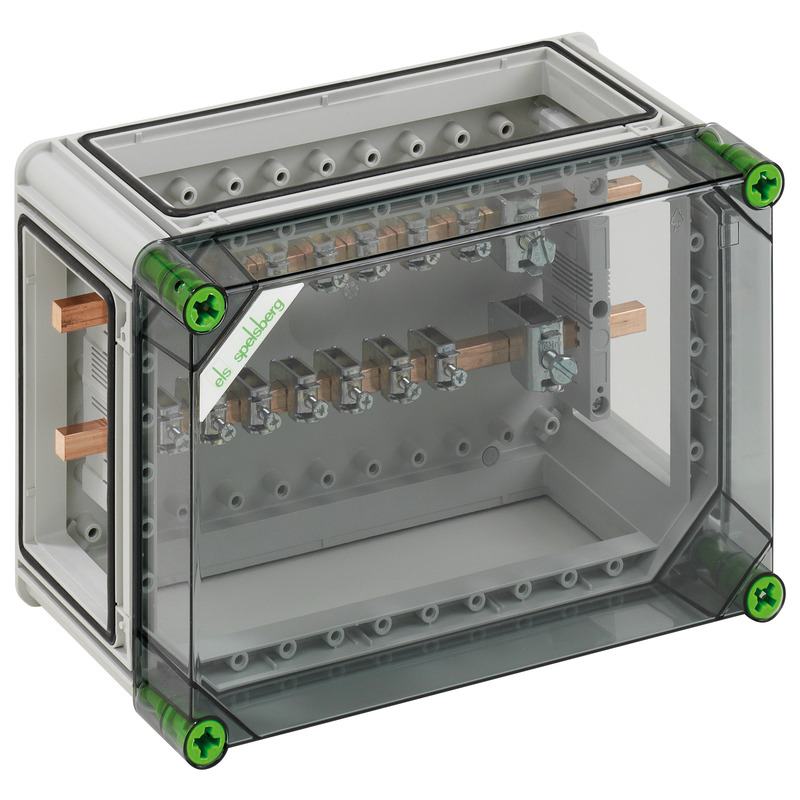

Busbar housing, 2 poles, 250 A, N: 12 x 10 mm, with copper rails, PE: 12 x 10 mm, with 14 busbar terminals 1.5 - 16 mm², with 2 busbar terminals 16 - 70 mm², 3 x enclosure connectors (GGV)
with transparent cover
This article is archived!
Technical Data
electrical characteristics
| Rated operating voltage AC | 690 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| with rail system | yes |
| UL Type Rating | 3R |
Dimensions
| Width | 220 mm |
|---|---|
| Length | 320 mm |
| Height | 179 mm |
| Weight | 2.7 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK08 |
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
Ambient conditions
| Min. ambient temperature | -35 °C |
|---|---|
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902832682 |
|---|---|
| ETIM Class | EC002274 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
Material
| Base unit material | Plastic |
|---|
Logistic data
Outer packaging
| EAN / GTIN | 4013902832682 |
|---|---|
| Width | 0.342 m |
| Weight | 2.935 kg |
| Height | 0.202 m |
| Quantity | 1 pieces |
| Depth | 0.235 m |
Pallet
| EAN / GTIN | 4013902328468 |
|---|---|
| Width | 0.8 m |
| Weight | 256.8 kg |
| Height | 1.74 m |
| Quantity | 80 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet
Accessories

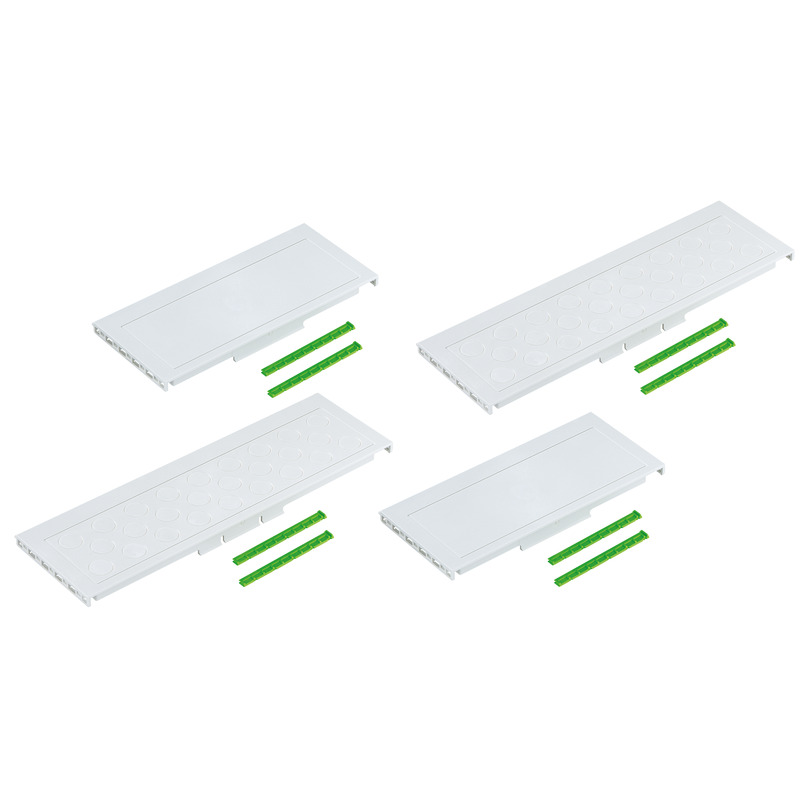

Flange setGFS 11-m
Flange set
GFS 11-m
Productnumber 07251101
Flange kit consisting of flanges GFL 211, 221, 341 and 351
Flange set with metric pre-embossing, 2 x flange connectors per flange
