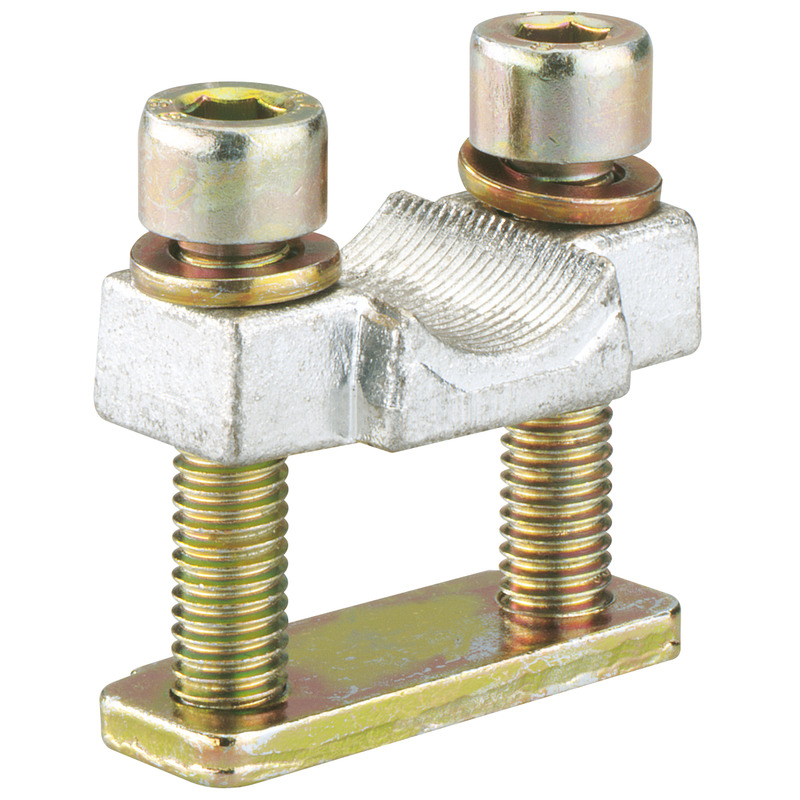

Clamp terminals for NH fuse base, for fuse load circuit breaker, for copper conductors, for laminated flat copper
Clamp connection for copper conductor 1 x 25 - 2402, lam. flat copper 10 x 16 x 0.8 mm, set = 3 pieces
| Rated connecting capacity | 240 mm² |
|---|---|
| Rated current | 400 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Strip length | 23 mm |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 25 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 25 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 185 mm² |
| Width | 42 mm |
|---|---|
| Length | 22 mm |
| Height | 30 mm |
| Weight | 0.209 kg |
| Connection 1: Tightening moment | 23 Nm |
|---|
| EAN | 4013902566785 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
| EAN / GTIN | 4013902566792 |
|---|---|
| Width | 0.197 m |
| Weight | 2.09 kg |
| Height | 0.097 m |
| Quantity | 10 pieces |
| Depth | 0.14 m |
| EAN / GTIN | 4013902566808 |
|---|---|
| Width | 0.8 m |
| Weight | 1305.04 kg |
| Height | 1.891 m |
| Quantity | 5940 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902566785 |
|---|---|
| Width | 0.042 m |
| Weight | 0.209 kg |
| Height | 0.03 m |
| Quantity | 1 pieces |
| Depth | 0.022 m |
