Description

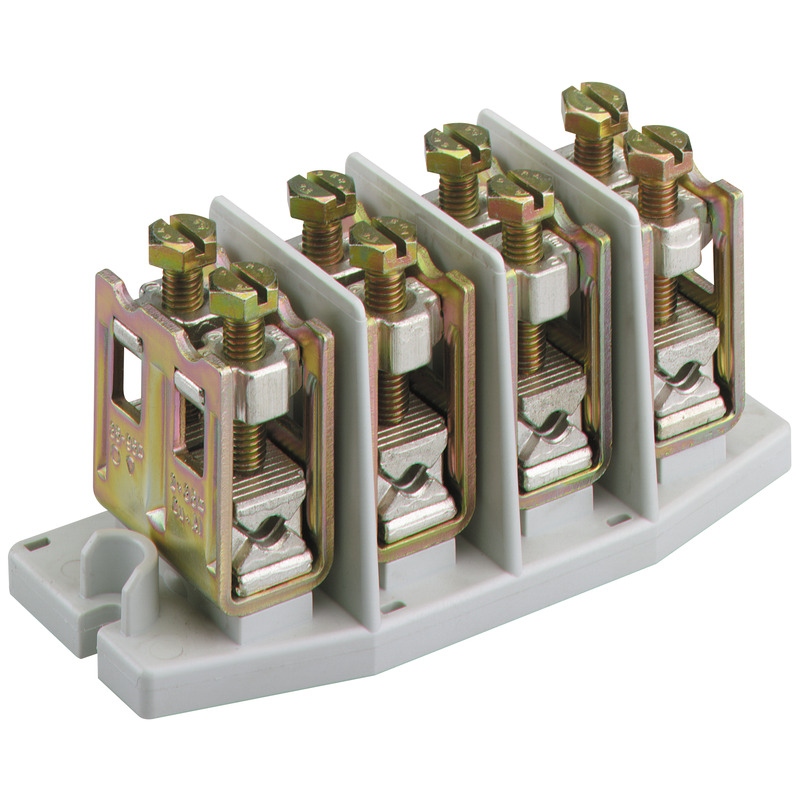

Terminal, 4-pole, for aluminium and copper conductors
160 A, for AL/CU conductors 1x (35-95)re/rm/se/sm, 2x 35re/rm/se/sm, for laminated flat copper 10x16mm
This article is archived!
Technical Data
electrical characteristics
| Connection 1: Connectable conductor cross-section, single-wire (min) | 35 mm² |
|---|---|
| Connection 1: Connectable conductor cross-section, single-wire (max) | 95 mm² |
Dimensions
| Weight | 1.1 kg |
|---|
Material characteristics
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
|---|
Sales Information
| ETIM Class | EC002498 |
|---|---|
| Custom tariff number | 85369010 |
Material
| Insulating body material | Thermoplastic |
|---|
