#86248301 | Dimensions: 200 x 200 x 110 mm

Junction box

WKE 403 SL

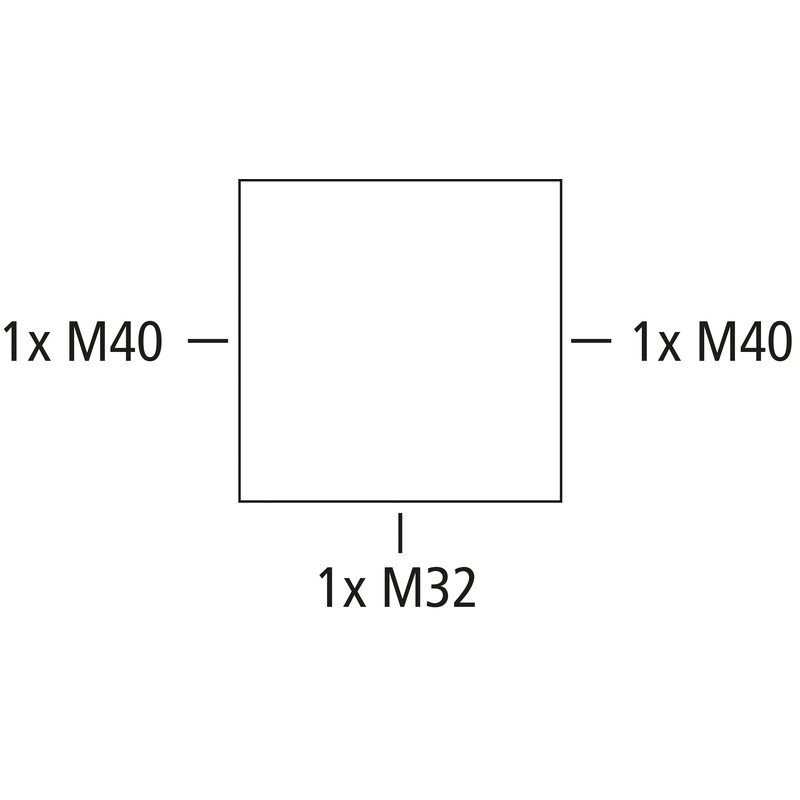

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), internal thread, M32/M40, (3 side), external fixing lugs, with E30 electrical functional...

Login to see price

Remember product

Description

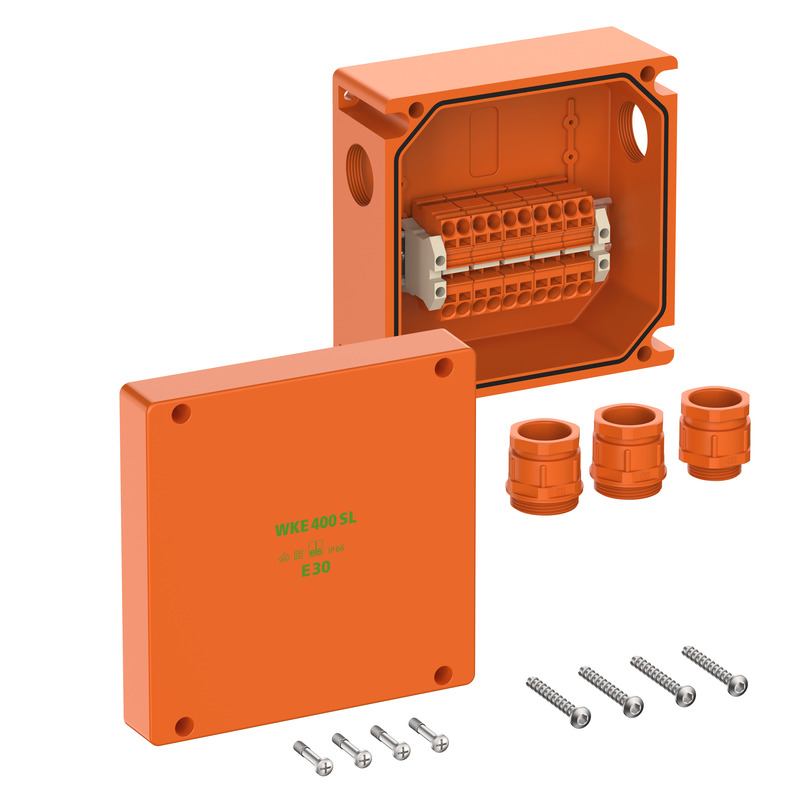

Junction box, protection class IP66, U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), internal thread, M32/M40, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, with screwless Wago TopJobS terminal blocks, enclosure made from halogen-free special thermosetting plastic

orange, Junction box 5-pole, clamping capacity per pole 4 x 0.5 - 16 mm²

Accessories supplied:
2 cable glands M40, sealing range 17 - 27 mm, 1 cable gland M32, sealing range 17 - 26 mm, dowel kit ø 6 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
max. wire cross section (wire branching)	16 mm²
Min. conductor cross section	0,5 mm²
Max. conductor cross section	16 mm²
Protection class	II
Type of protection	IP66
Circuit integrity class	E30
Number of poles (T-piece)	5
Number of poles (feed-through)	5
UL Type Rating	not specified

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Connectors and T-pieces

Dimensions

Width	200 mm
Length	200 mm
Height	110 mm
Weight	3.9 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Impact strength	IK08
Sealable	no
Cover screw torque	2.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902668724
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Duroplast
Cover material	Duroplast
Sealing material	Polyurethane
Cover screw material	Stainless steel 1.4571 (V4A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Logistic data

Outer packaging

EAN / GTIN	4013902668724
Width	0.21 m
Weight	4 kg
Height	0.125 m
Quantity	1 pieces
Depth	0.209 m

Pallet

EAN / GTIN	4013902668731
Width	0.8 m
Weight	382 kg
Height	0.607 m
Quantity	90 pieces
Depth	1.2 m
