Conduit elbow set, consisting of conduit ferrule with bottom section and conduit elbow 30°, rated insulation voltage: 400V AC, Halogen free, Number of 30° insertions: 1
3-part, adhesive fixing or nail installation, sealing range M20, support spar compatible
| Rated insulation voltage AC | 400 V |
|---|---|
| Suitable for | Concrete construction |
| Width | 63 mm |
|---|---|
| Length | 35 mm |
| Height | 62 mm |
| Weight | 0.0374 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | adhesive fixing or nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902926527 |
|---|---|
| ETIM Class | EC002328 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902347049 |
|---|---|
| Width | 0.357 m |
| Weight | 1.337 kg |
| Height | 0.127 m |
| Quantity | 30 pieces |
| Depth | 0.257 m |
| EAN / GTIN | 4013902347056 |
|---|---|
| Width | 0.8 m |
| Weight | 81.198 kg |
| Height | 1.67 m |
| Quantity | 1620 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902926527 |
|---|---|
| Width | 0.063 m |
| Weight | 0.0374 kg |
| Height | 0.062 m |
| Quantity | 1 pieces |
| Depth | 0.035 m |
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
BIM-Data
(Download 3D-BIM-Data)
Log in to download tender texts.
ceiling hook
DH 55
Productnumber 97911501
Ceiling hook, insulated, with wood screw thread
ceiling hook
DH 90
Productnumber 97911601
Ceiling hook, insulated, with wood screw thread
ceiling hook
DH 65
Productnumber 97911801
Ceiling hook, insulated, with wood screw thread
IBT Accessories
NAS-AL
Productnumber 97924001
spreader nail, aluminium 40 mm, with plastic plug for fixing the boxes...
Fixings for steel formwork
IBT Accessories
NA-AL
Productnumber 97924201
aluminium nail, 40 mm, long-ridged
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
IBT Accessories
NA-AL/gl
Productnumber 97924301
aluminium nail, 40 mm, smooth
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
Conduit elbow set
ROK 25 S
Productnumber 97072501
3-part, adhesive fixing or nail installation, sealing range M25,...
Conduit elbow set, consisting of conduit ferrule with bottom section and conduit elbow 30°, rated...

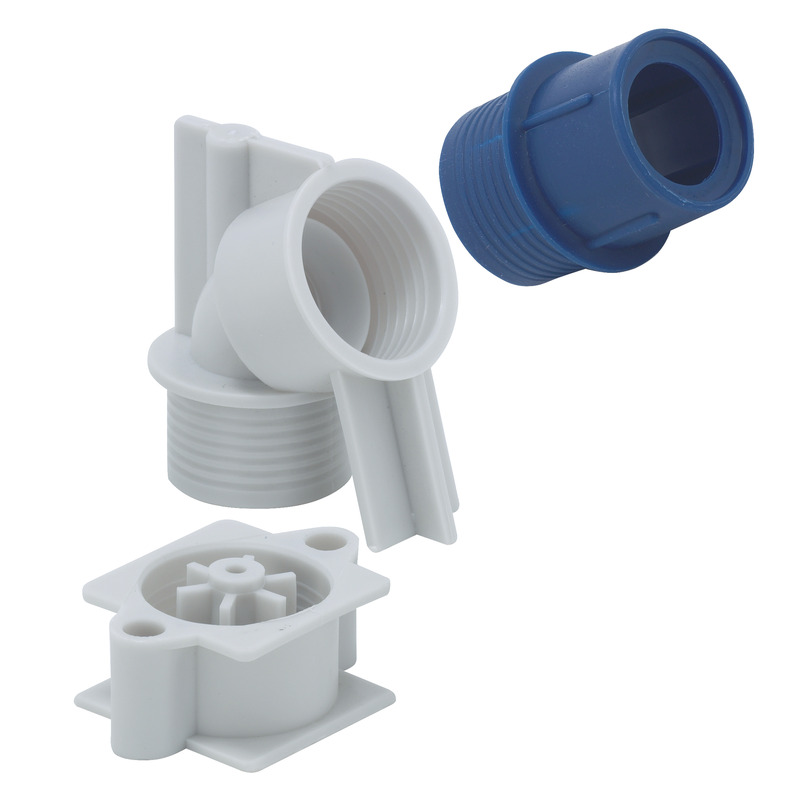

Conduit elbow set
