#97071601 | Dimensions: 126 x 86 x 57 mm

Universal outlet

UVA 90

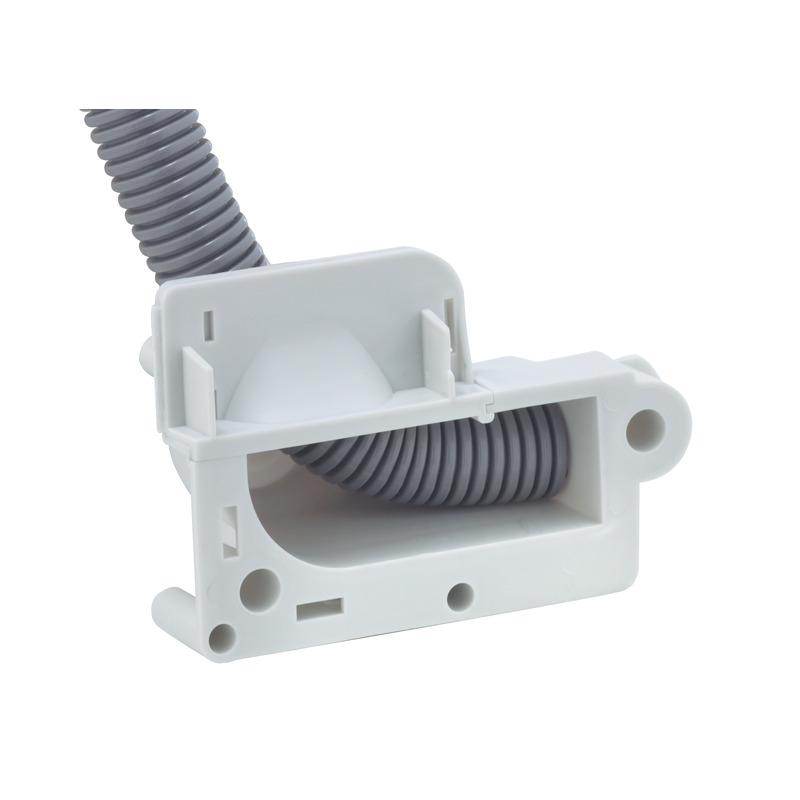

Universal outlet, for simple conduit transfers in walls and ceilings or for routing conduits beneath plasterwork. Entries for conduits up to M25. suitable for adhesive fixing and opposing...

Login to see price

Remember product

Description

Universal outlet, for simple conduit transfers in walls and ceilings or for routing conduits beneath plasterwork. Entries for conduits up to M25. suitable for adhesive fixing and opposing shuttering (when using support spar technology, please take strict note that: (support spar length = wall thickness minus 2 cm), rated insulation voltage: 400V AC, Halogen free

adhesive fixing or nail installation, sealing range M20 - M25, support spar compatible

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Suitable for	Concrete construction

Dimensions

Width	126 mm
Length	86 mm
Height	57 mm
Weight	0.05 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902905430
ETIM Class	EC002328
Custom tariff number	39269097
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902347025
Width	0.79 m
Weight	5.75 kg
Height	0.29 m
Quantity	90 pieces
Depth	0.39 m

Pallet

EAN / GTIN	4013902347032
Width	0.8 m
Weight	121.5 kg
Height	1.89 m
Quantity	1620 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902905430
Width	0.126 m
Weight	0.05 kg
Height	0.057 m
Quantity	1 pieces
Depth	0.086 m

Downloads

Download Data Sheet

Download Data Sheet (97071601.pdf)

Dimensioned drawing

Dimensional drawing pdf (45 KB)

Dimensional drawing dxf (377 KB)

Dimensional drawing dwg (88 KB)

Dimensional drawing jpg (927 KB)

Planningdata

CAD-Data

BIM-Data

Accessories
