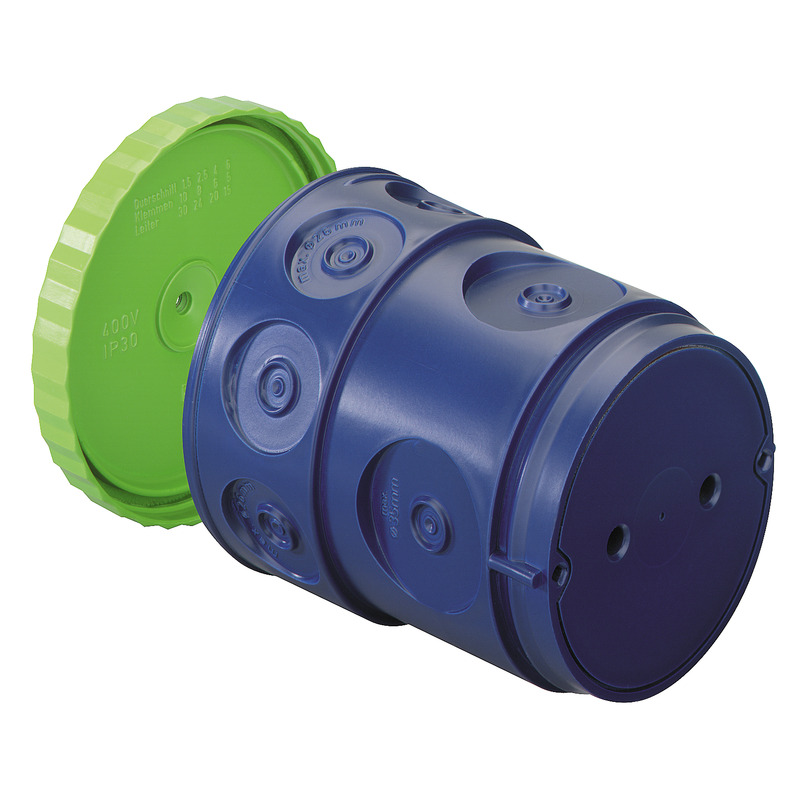

Large conduit box , for ceiling slab thickness up to 6.5 cm, with M5 threaded bushing (load capacity 10 kg) to hold ceiling hook, protection class IP30, rated insulation voltage: 400V AC, Halogen free

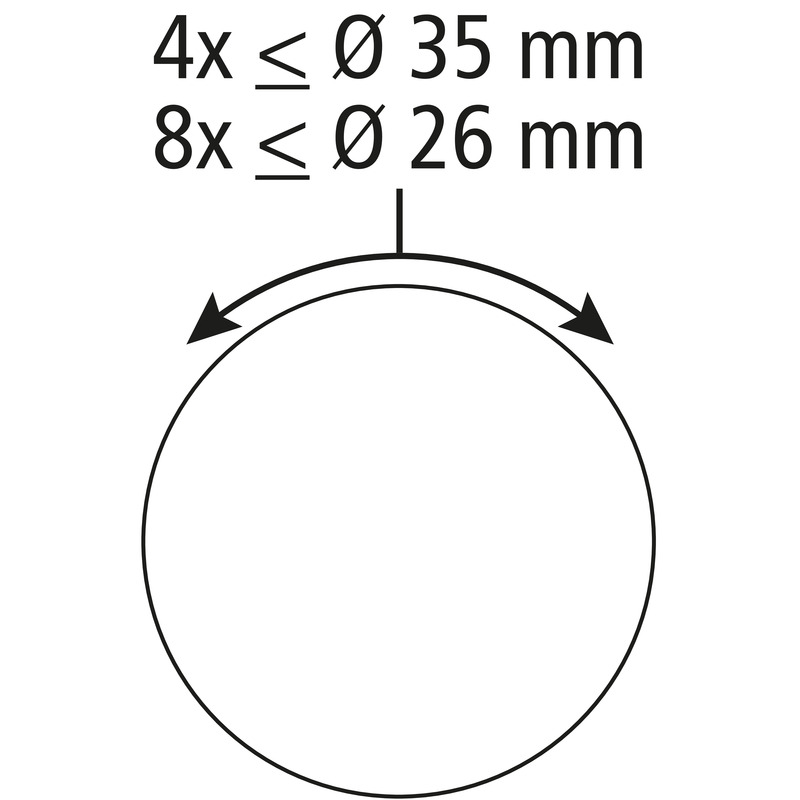

adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M32
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 74 mm |
|---|---|
| Length | 74 mm |
| Height | 122 mm |
| Weight | 0.071 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | adhesive fixing or nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902030491 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902347568 |
|---|---|
| Width | 0.493 m |
| Weight | 3.32 kg |
| Height | 0.356 m |
| Quantity | 40 pieces |
| Depth | 0.293 m |
| EAN / GTIN | 4013902347575 |
|---|---|
| Width | 0.8 m |
| Weight | 47.04 kg |
| Height | 1.58 m |
| Quantity | 480 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902030491 |
|---|---|
| Width | 0.074 m |
| Weight | 0.071 kg |
| Height | 0.122 m |
| Quantity | 1 pieces |
| Depth | 0.074 m |
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
BIM-Data
(Download 3D-BIM-Data)
Log in to download tender texts.
Hole punch
IBT LZA-23
Productnumber 97822301
with 23 mm punch set for pipe M25
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Hole punch
IBT LZA-18
Productnumber 97821801
with 18 mm punch set for pipe M20
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Hole punch
IBT LZA-OE
Productnumber 97820001
without punch set
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Stepped drill
LFR
Productnumber 19599501
through opening: M16-32, drill hole: 16.5-32.5 mm
Hole cutter
Conduit coupling
RVB 25
Productnumber 97022501
for long-ridged pipes M25
Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...
IBT Accessories
NAS-AL
Productnumber 97924001
spreader nail, aluminium 40 mm, with plastic plug for fixing the boxes...
Fixings for steel formwork
IBT Accessories
NA-AL
Productnumber 97924201
aluminium nail, 40 mm, long-ridged
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
IBT Accessories
NA-AL/gl
Productnumber 97924301
aluminium nail, 40 mm, smooth
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
sealing plate
VD 75
Productnumber 97910001
with fixing screws
Sealing plate for junction boxes, flame resistant, white
ceiling hook
DH 115-M5
Productnumber 97912101
115 mm
Metal ceiling hook, insulated, with M5 thread for ceiling boxes
sealing plate
HW VD-67
Productnumber 92510001
for type HW 070, screw spacing 67 mm
Sealing plate for junction boxes, polystyrene, flame resistant, white

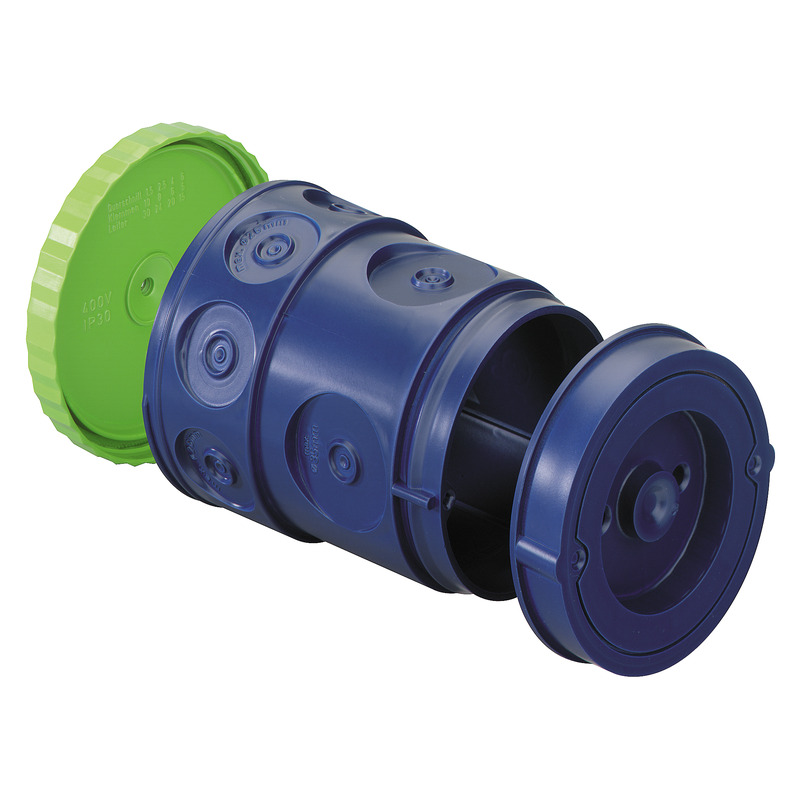

Large conduit box
U 120 GRO-3
Productnumber 97331201
magnet and nail installation, membrane for perforation, sealing range...
Large conduit box , for ceiling slab thickness up to 6.5 cm, with M5 threaded bushing (load capacity...

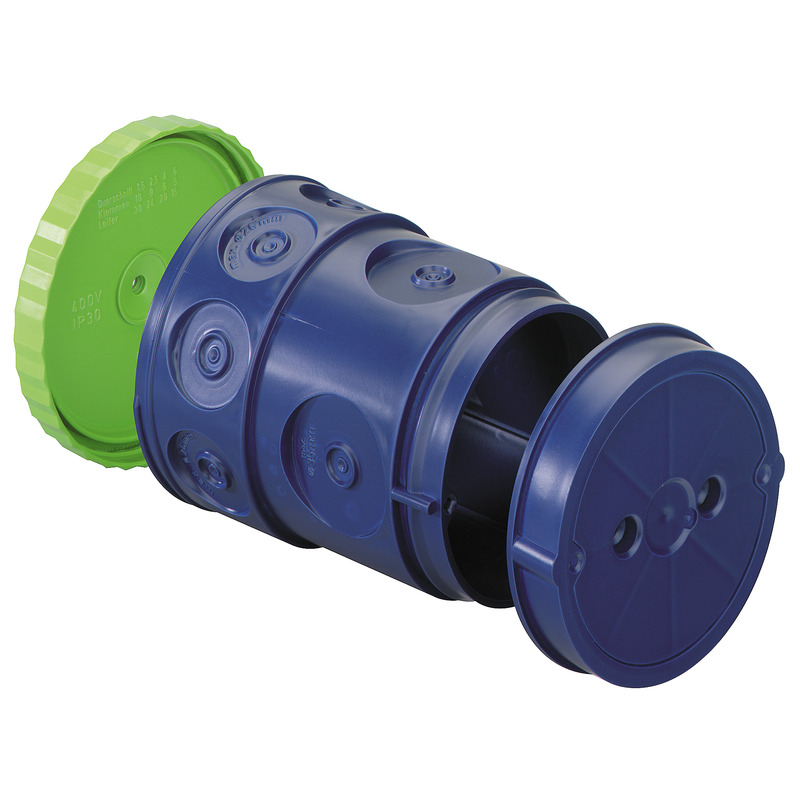

Large conduit box
