#97305001 | Dimensions: 71 x 71 x 50 mm

Receptacle

U 71 Perilex

Receptacle, 67 mm screw spacing, for Perilex® inserts 16 A, FR-UP equipment, CEE sockets, 5-pole 16 A, protection class IP30, rated insulation voltage: 400V AC, Halogen free

Login to see price

Remember product

Description

Receptacle, 67 mm screw spacing, for Perilex® inserts 16 A, FR-UP equipment, CEE sockets, 5-pole 16 A, protection class IP30, rated insulation voltage: 400V AC, Halogen free

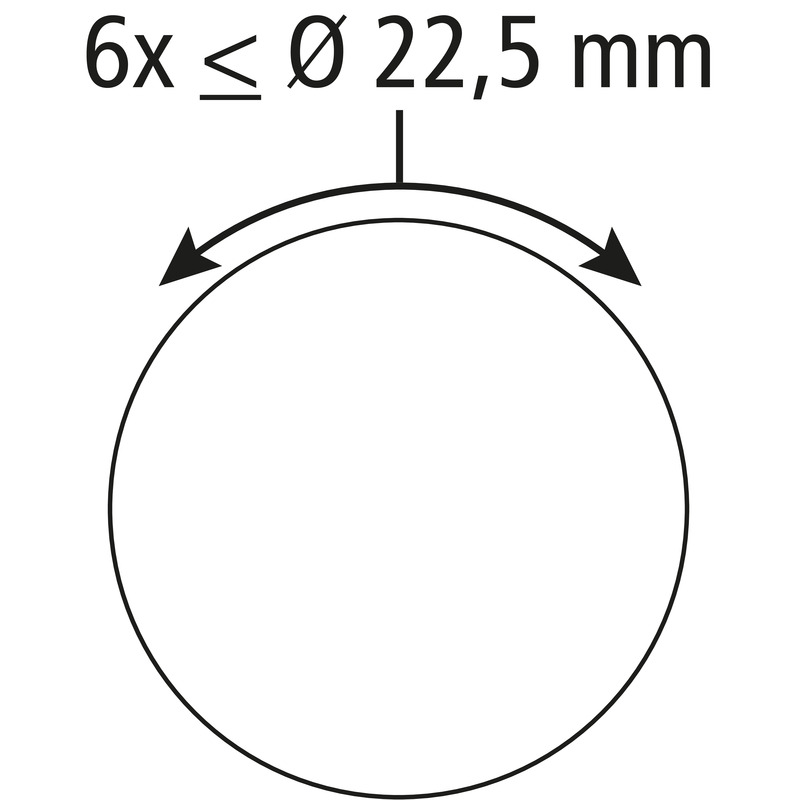

2-part, magnet and nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	50 mm
Weight	0.045 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	magnet and nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902190089
ETIM Class	EC002601
Custom tariff number	39269097
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902347506
Width	0.437 m
Weight	2.635 kg
Height	0.212 m
Quantity	50 pieces
Depth	0.317 m

Pallet

EAN / GTIN	4013902347513
Width	0.8 m
Weight	144.48 kg
Height	1.85 m
Quantity	2400 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902190089
Width	0.071 m
Weight	0.045 kg
Height	0.05 m
Quantity	1 pieces
Depth	0.071 m
