#97296001 | Dimensions: 71 x 71 x 76 mm

Large conduit box

U 71 GRO

Large conduit box , 4 screw bosses with 60 mm screw spacing, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork,...

Login to see price

Remember product

Description

Large conduit box , 4 screw bosses with 60 mm screw spacing, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

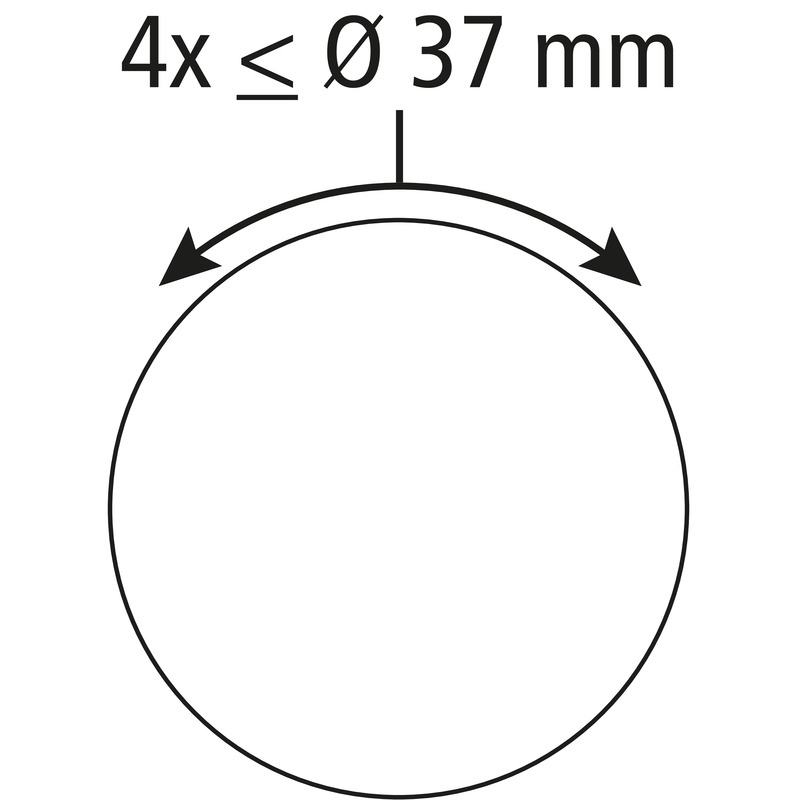

2-part, magnet and nail installation, membrane for perforation, sealing range M16 - M40, support spar compatible

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	76 mm
Weight	0.053 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	magnet and nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902190072
ETIM Class	EC002601
Custom tariff number	39269097
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Logistic data

Outer packaging

EAN / GTIN	4013902347483
Width	0.493 m
Weight	3.47 kg
Height	0.356 m
Quantity	65 pieces
Depth	0.293 m

Pallet

EAN / GTIN	4013902347490
Width	0.8 m
Weight	126.1 kg
Height	1.92 m
Quantity	1560 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902190072
Width	0.071 m
Weight	0.053 kg
Height	0.076 m
Quantity	1 pieces
Depth	0.071 m
