Ceiling junction box, 4 screw bosses with a 60 mm screw spacing, with M5 threaded bushing (load capacity 10 kg) to take a ceiling hook, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, Halogen free

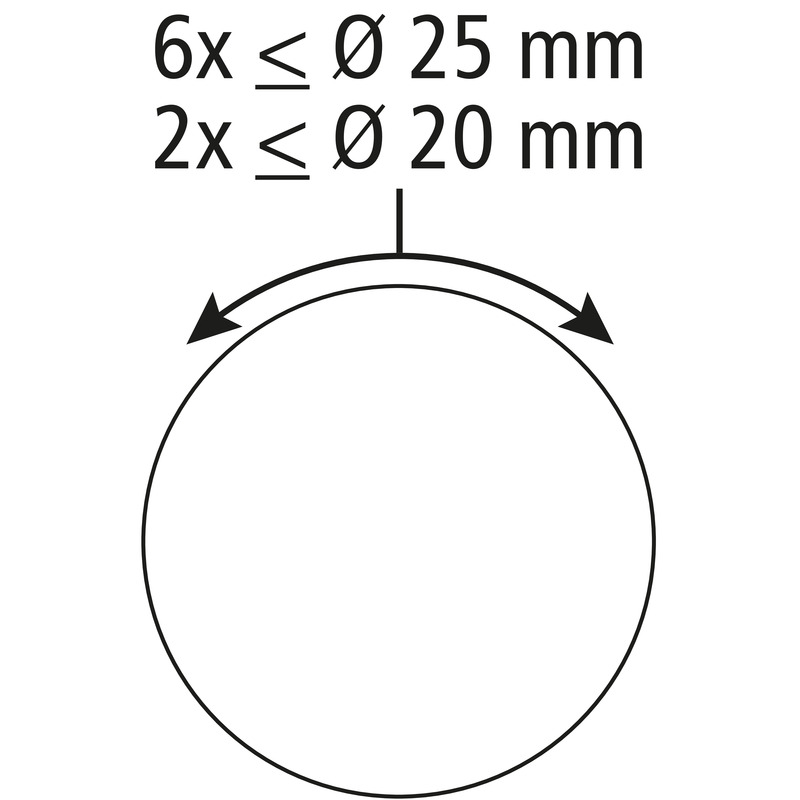

magnet and nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 79 mm |
| Weight | 0.05 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | magnet and nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902190058 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902347223 |
|---|---|
| Width | 0.372 m |
| Weight | 2.89 kg |
| Height | 0.372 m |
| Quantity | 50 pieces |
| Depth | 0.262 m |
| EAN / GTIN | 4013902347230 |
|---|---|
| Width | 0.8 m |
| Weight | 122.04 kg |
| Height | 1.65 m |
| Quantity | 1800 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902190058 |
|---|---|
| Width | 0.071 m |
| Weight | 0.05 kg |
| Height | 0.079 m |
| Quantity | 1 pieces |
| Depth | 0.071 m |
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
BIM-Data
(Download 3D-BIM-Data)
Log in to download tender texts.
Hole punch
IBT LZA-23
Productnumber 97822301
with 23 mm punch set for pipe M25
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Hole punch
IBT LZA-18
Productnumber 97821801
with 18 mm punch set for pipe M20
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Hole punch
IBT LZA-OE
Productnumber 97820001
without punch set
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
IBT Accessories
HM-UNI
Productnumber 97929901
magnetic clamps, 50 mm Ø, extra strong, pull-off strength 300 +/- 20...
Fixings for steel formwork
IBT Accessories
HFL
Productnumber 97925001
support flange 50 mm Ø, plastic
Fixings for plastic/steel formwork
sealing plate
U 71 VDF
Productnumber 97910201
with fixing screws
Sealing plate for junction boxes, flame resistant, white
Thread bottom
GWB
Productnumber 97911001
with M5 threaded bushing to take a ceiling hook, converts every U71...
Threaded base M5
Dome
U 71 KP-M5
Productnumber 97174801
(suitable for series U 71)
Dome with threaded bush M5, suitable as an attachment for U 71 boxes as well as magnet and adhesive...
Conduit coupling
RVB 25
Productnumber 97022501
for long-ridged pipes M25
Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...
Stepped drill
LFR
Productnumber 19599501
through opening: M16-32, drill hole: 16.5-32.5 mm
Hole cutter
Deep box
U 71 TD-44
Productnumber 97292501
attachable, membrane for perforation, sealing range M16 - M25
Deep box, as top enclosure for all U 71 boxes when using large concrete conduits up to M25, screw...
Deep box
U 71 TD-49
Productnumber 97294501
attachable, membrane for perforation, sealing range M16 - M32
Deep box, as top enclosure for all U 71 boxes when using large conduits up to M32, screw spacing 60...
IBT Accessories
NAS-AL
Productnumber 97924001
spreader nail, aluminium 40 mm, with plastic plug for fixing the boxes...
Fixings for steel formwork
IBT Accessories
NA-AL
Productnumber 97924201
aluminium nail, 40 mm, long-ridged
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
IBT Accessories
NA-AL/gl
Productnumber 97924301
aluminium nail, 40 mm, smooth
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
sealing plate
VD 75
Productnumber 97910001
with fixing screws
Sealing plate for junction boxes, flame resistant, white
ceiling hook
DH 75-M5
Productnumber 97911701
75 mm
Metal ceiling hook, insulated, with M5 thread for ceiling boxes

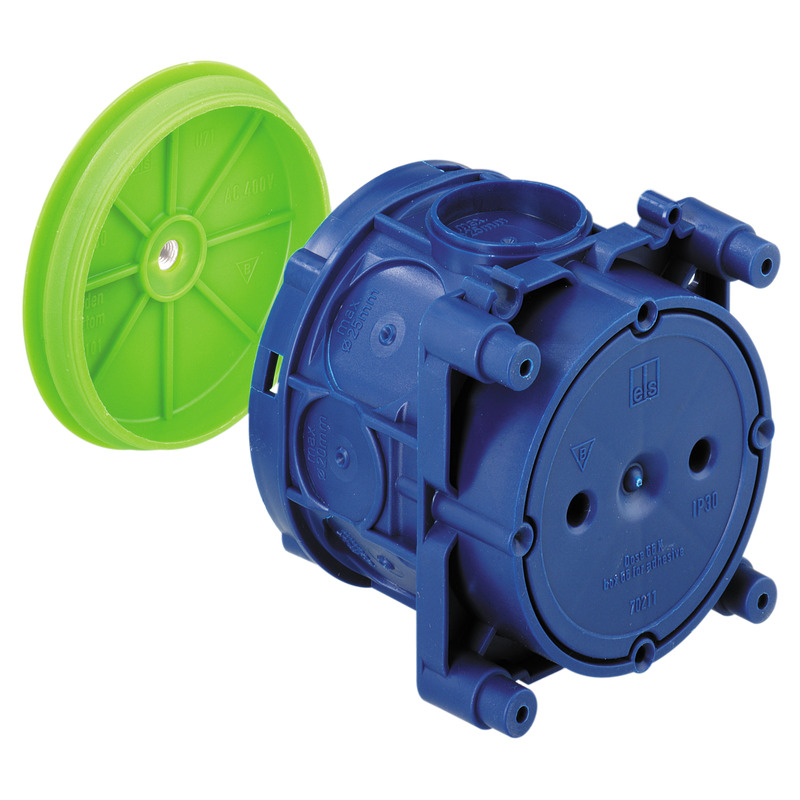

Ceiling junction box
U 71 K DVD-2
Productnumber 97176601
adhesive fixing or nail installation, membrane for perforation,...
Ceiling junction box, 4 screw bosses with a 60 mm screw spacing, with M5 threaded bushing (load...

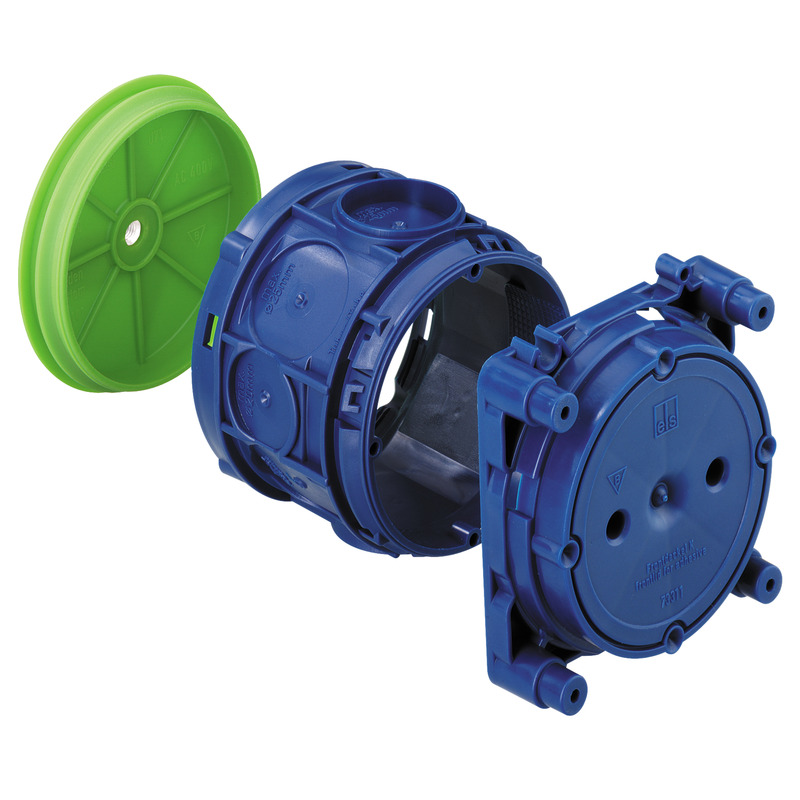

Ceiling junction box
